Summary of Contents for Blendtec Q-SERIES

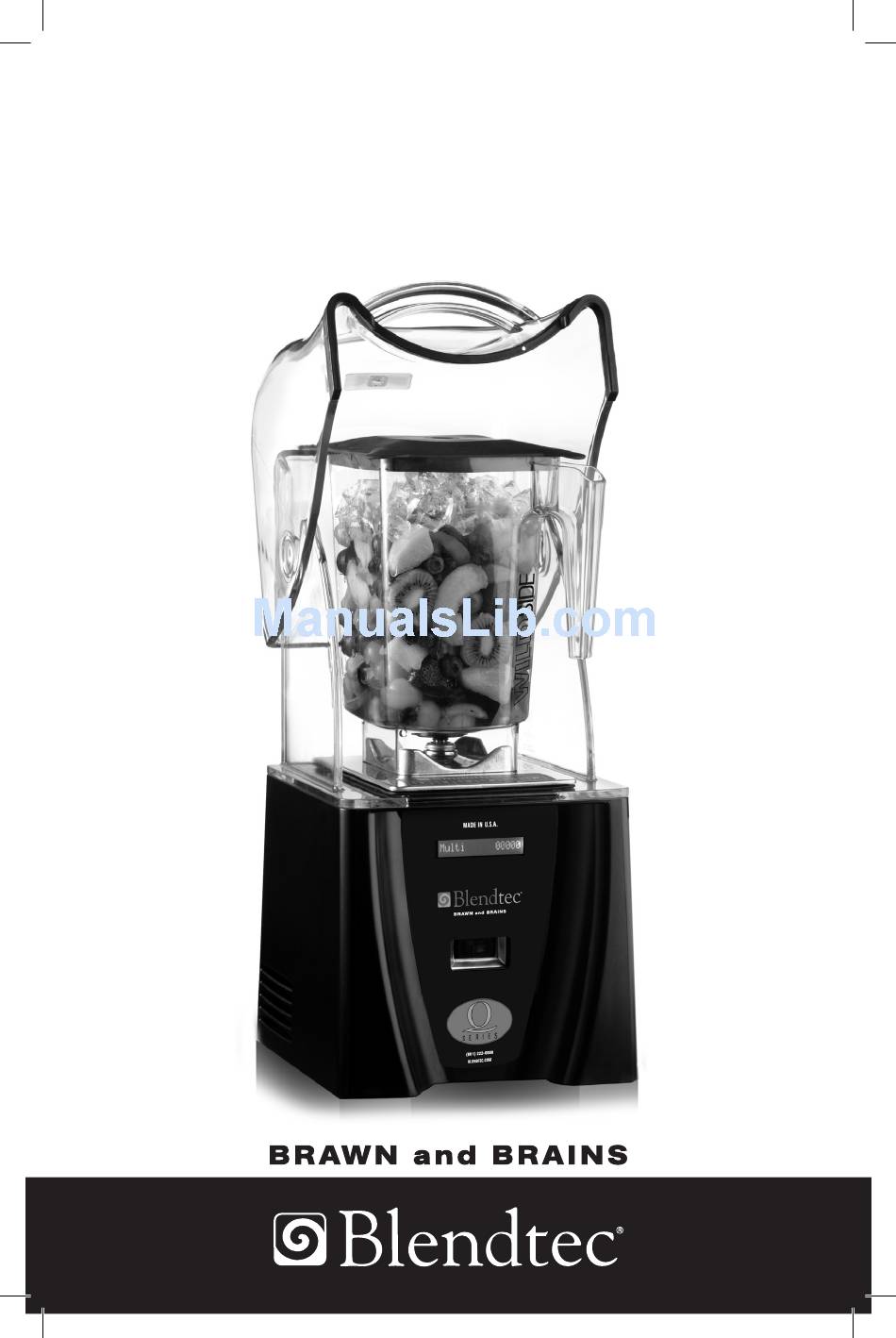

  • Page 1 Q-SERIES MANUAL...

  • Page 2: Table Of Contents

    User’s Manual for the Blender Q-Series Table of Contents Cautions for Safe Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Product Specifications .

  • Page 4: Cautions For Safe Usage

    • You cannot receive the warranted service after you dismantle the motor of the blender . • Do not use the components which are not sold by BLENDTEC . (If you use the components which have not been certified, you cannot receive the warranted service .

  • Page 5: Components & Names

    3. COMPONENTS & NAMES 3-1. CHECK WHETHER THE FOLLOWING COMPONENTS ARE PRESENT. COMPONENT (unit) QUANTITY Main Body (Blender Q – Series) Blender Jar (JAR-2) Blender Jar Cover User’s Manual User’s Manual for the Program Additional Blender Jars (JAR-2) Separately Sold 3-2.

  • Page 6: Installation & Cautions

    3 - Noise-Preventing Case 7 - Motor 4 - Jar • The Blender Q-Series products can be easily assembled or dismantled by anyone . (You can assemble or dismantle the products without using any special tool .) • Visit our Internet homepage (http://aspenkorea .com) in regard to the user’s manual for assembling or dismantling the products .

  • Page 7: Usage

    (1 to 5) is used .) 5-2. BLUE LCD INDICATING SCREEN Indication of the Currently- Number of the Current Established Program Usage The Blender Q-Series products have three basic built-in program profiles . Multi Multi-purpose Program Profile Smoothie Smoothie Program Profile Coffee Coffee Program Profile • The Blue LCD screen indicates the diagnosis of errors and the number of...

  • Page 8: Cleaning & Maintenance

    • The Blue LCD screen indicates the number of the cycle, the remaining time and the speed while the blender is in operation . 5-3. OPERATING METHOD AND INSTRUCTION ON THE PROFILE FOR Q-SERIES APPLICATIONS Adjustment Method for the Program Multi...

  • Page 9: Warranty & Trouble Shooting

    1 year or 10000 cycles [The one which comes earlier between the period of 1 year and the number of 15000 cycles (in case of Q-Series) according to the purchasing or selling date is used .] • WARRANTY FOR THE JAR: The following warranty conditions are applied for the breakdown of the jar and the internal bearings .
  • Page 10 become blunt, but there is no problem with the mixing power . (The blade is not sharp .) • RUNNING SOCKET: The running socket (Refer to Figure 1 .2) is subject to the warranty during the lifecycle of the product . • The warranty is applied from the delivery date or the purchasing date when the purchasing certificate is submitted .
  • Page 11 PROCESS IS EXECUTED. DOES THIS MEAN THAT THERE IS A PROBLEM WITH THE MOTOR? • Such a situation is caused by the incomplete blending process due to the hollowing phenomenon . • When the blending process is executed, all the small pieces of ice generated at the initial stage become instantly cooled down and prevented from being mixed .

  • Page 12: Appendix - Product Diagrams (Designs)

    APPENDIX - PRODUCT DIAGRAMS FIGURE 1.1 - FRONT VIEW: BLENDER MOTOR AND JAR Blade Assembly LCD Screen Power Switch FIGURE 1.2 - TOP VIEW: MOTOR Drive Socket Touchpad Motor Housing LCD Screen Power Switch...
  • Page 13 FIGURE 2.1 - ABOVE COUNTERTOP 2 .59” (65 .78 mm)
  • Page 14 FIGURE 3.1 - IN - COUNTER 3 .03” (77 mm)
  • Page 15 FIGURE 4.1 - COUNTERTOP HOLE TEMPLATE 5-7/8” (149 .22 mm) 4-3/8” (111 .125 mm)
  • Page 16 1206 South 1680 West Orem, UT 84058 801-222-0888 www. blendtec.com OWN-CE-010 Korean English Manual Q-Series v1 Sep 10...
