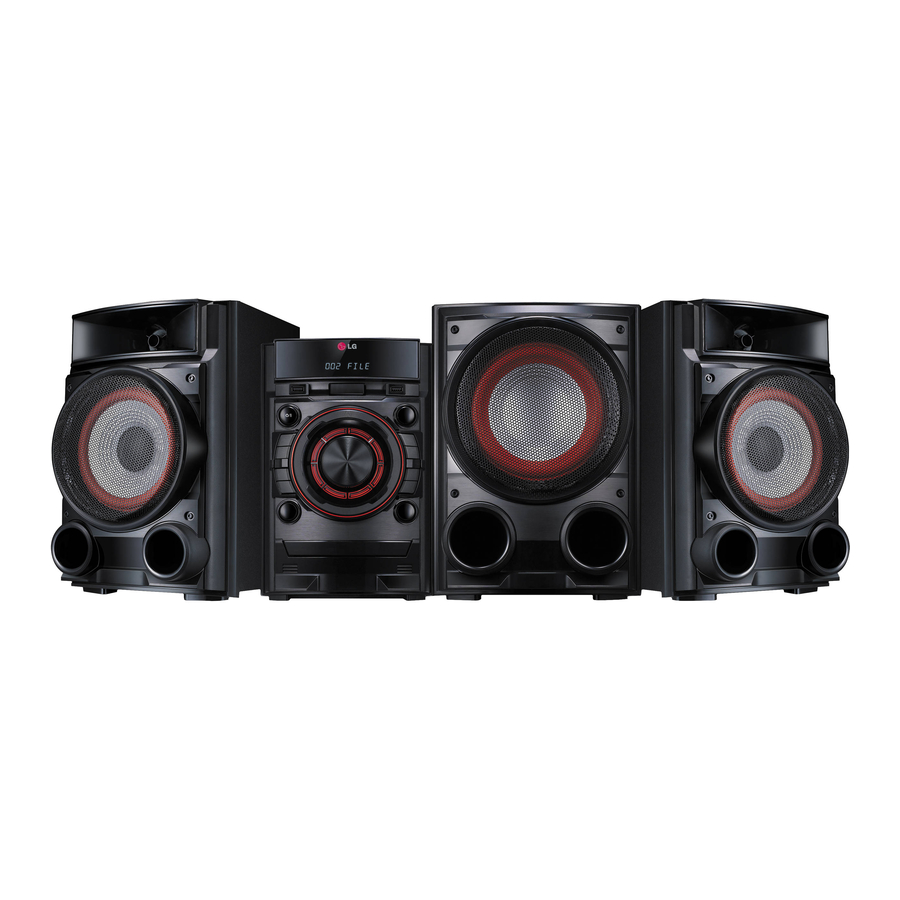

LG CM4630 Owner's Manual
Mini hi-fi system
Hide thumbs
Also See for CM4630:
- Manual de usuario (32 pages) ,
- Owner's manual (32 pages) ,
- Owner's manual (28 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for LG CM4630
Summary of Contents for LG CM4630
- Page 1 OWNER’S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. CM4630 (CM4630, CMS4630F) CM4530 (CM4530, CMS4530F, CMS4530W) CM4430 (CM4430, CMS4530F) CM4330 (CM4330, CMS4330F) CM4630-FE_DAUSLLK_ENG_7539.indd 1 2013-02-18 11:55:39...
-
Page 2: Safety Information
This product shall not be placed in a built- in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CM4630-FE_DAUSLLK_ENG_7539.indd 2 2013-02-18 11:55:41... - Page 3 CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. CM4630-FE_DAUSLLK_ENG_7539.indd 3 2013-02-18 11:55:41...
-
Page 4: Table Of Contents
Remote Control Radio Operations Front Panel – Listening to the radio Rear Panel(CM4530) – Presetting the Radio Stations Rear Panel(CM4630) – Deleting all the saved stations Rear Panel(CM4430/CM4330) – Improving poor FM reception Sound adjustment Connecting – Setting the surround mode... -
Page 5: Appendix 1
Table of Contents Troubleshooting Troubleshooting Appendix Specifications Speaker specifications Maintenance – Handling the Unit – Notes on Discs Trademarks and Licenses CM4630-FE_DAUSLLK_ENG_7539.indd 5 2013-02-18 11:55:41... -
Page 6: Getting Started
LG players when formatting rewritable Accesories discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/Live File System : Disc format system Please check and identify the supplied accessories. for Windows Vista) -
Page 7: Compatible Usb Devices
1 000 or more. y External HDD, Card readers, Locked devices, or hard type USB devices are not supported. y USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device. CM4630-FE_DAUSLLK_ENG_7539.indd 7 2013-02-18 11:55:42... -
Page 8: Remote Control
• • • • • • d • • • • • • ? : The button is not available for any function. Remove the battery cover on the rear of the Remote Control, and insert two (size AAA) batteries with 4 and 5 matched correctly CM4630-FE_DAUSLLK_ENG_7539.indd 8 2013-02-18 11:55:43... -

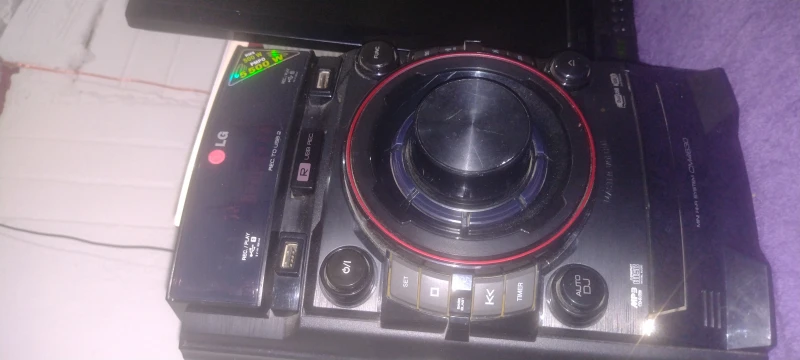

Page 9: Front Panel
Getting Started Front Panel CM4630-FE_DAUSLLK_ENG_7539.indd 9 2013-02-18 11:55:43... - Page 10 - Selects Stereo/Mono. Stops playback or recording. n Volume knob g SET Adjusts volume of speaker. Confirms the setting. o LG EQ h 1/! (Power) Chooses sound impressions. Switches the unit ON or OFF. p U (Skip/Search) i Display window - Searches backward.
-
Page 11: Rear Panel(Cm4530)
Getting Started Rear Panel(CM4530) a AUX IN (L/R) connectors d Cooling fan b ANTENNA (FM) e SPEAKERS terminal/cord c POWER IN CM4630-FE_DAUSLLK_ENG_7539.indd 11 2013-02-18 11:55:43... -
Page 12: Rear Panel(Cm4630)
Getting Started Rear Panel(CM4630) a AUX IN (L/R) connectors d Cooling fan b ANTENNA (FM) e SPEAKERS terminal c POWER IN CM4630-FE_DAUSLLK_ENG_7539.indd 12 2013-02-18 11:55:44... -
Page 13: Rear Panel(Cm4430/Cm4330)
Getting Started Rear Panel(CM4430/CM4330) a AUX IN (L/R) connectors c POWER IN b ANTENNA (FM) d SPEAKERS terminal CM4630-FE_DAUSLLK_ENG_7539.indd 13 2013-02-18 11:55:44... -
Page 14: Connecting
CM4530 colour Speaker Orange Sub woofer Front White Front CM4630/CM4430/CM4330 colour Speaker Front White Front Connect a woofer cord to the player. When connecting a woofer cord to the player, insert the connector until it clicks. CM4630-FE_DAUSLLK_ENG_7539.indd 14 2013-02-18 11:55:45... -
Page 15: Antenna Connection
If your device has only one output for audio(mono), connect it to the left (white) audio jack on the unit. White Note Be sure to fully extend the FM wire antenna. To the audio output jacks of your component (TV, VCR, etc.) CM4630-FE_DAUSLLK_ENG_7539.indd 15 2013-02-18 11:55:46... -
Page 16: Usb Connection
USB port on the front of the unit. Note Removing the USB Device from the unit. 1. Choose a different function/mode or press I(Stop) twice in a row. 2. Remove the USB device from the unit. CM4630-FE_DAUSLLK_ENG_7539.indd 16 2013-02-18 11:55:47... -
Page 17: Operating
2. Press d/M to play it. The first file of the folder Press REPEAT(MENU) repeatedly. will be played. The display will be changed in the Playing following order. repeatedly or RPT1 -> RPT *DIR (only MP3/WMA) randomly -> RPT ALL -> RANDOM -> OFF. *DIR : Directory CM4630-FE_DAUSLLK_ENG_7539.indd 17 2013-02-18 11:55:47... -
Page 18: Turn Off The Sound Temporarily
DEMO function, press DEMO once more. deactivated. Note You can enjoy other functions during the DEMO. Then the DEMO will pause temporarily. - Without input key in 10 sec, the DEMO will play back automatically. CM4630-FE_DAUSLLK_ENG_7539.indd 18 2013-02-18 11:55:47... -
Page 19: Listening To The Sound From Your External Device
Manual tuning: Press TUNING -/+ on the remote control or Y/U on the unit repeatedly. 3. Adjust the volume by pressing VOL +/- on the remote control or by rotating volume knob on the unit repeatedly. CM4630-FE_DAUSLLK_ENG_7539.indd 19 2013-02-18 11:55:47... -
Page 20: Presetting The Radio Stations
2. Press PROGRAM/MEMORY to erase all saved radio stations. Improving poor FM reception Press d/M on the remote control or T ST./MO. on the unit. This will change the tuner from stereo to mono. Then the reception will be better than before. CM4630-FE_DAUSLLK_ENG_7539.indd 20 2013-02-18 11:55:47... -
Page 21: Sound Adjustment
- AM 12:00 (for an AM and PM display) by using SOUND EFFECT on the remote control or or 0:00 (for a 24 hour display) LG EQ on the unit. The displayed items for the Equalizer may be 4. Press SET to confirm your selection. -
Page 22: Sleep Timer Setting
• If the time you set is up, the unit will be turned on automatically. • Alarm function is not supported even if you choose USB function as an alarm clock when iPod/iPhone is connected to USB port. CM4630-FE_DAUSLLK_ENG_7539.indd 22 2013-02-18 11:55:47... -
Page 23: Compatible Ipod/Iphone
4 y iPhone 3GS y iPhone 3G Depending on your iPod/iPhone’s software version, you may not control your iPod/iPhone from the unit. Depending on your iPod/iPhone device, you may not control your iPod/iPhone from the unit. CM4630-FE_DAUSLLK_ENG_7539.indd 23 2013-02-18 11:55:48... -
Page 24: Recording To Usb
Pausing recording USB REC. on the unit to finish the setting. During recording, press USB REC on the remote USB REC. on the unit to pause control or recording. Press it again to restart recording. (Only Radio/AUX) CM4630-FE_DAUSLLK_ENG_7539.indd 24 2013-02-18 11:55:48... - Page 25 The making of unauthorized copies of copy- protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. Be responsible Respect copyrights CM4630-FE_DAUSLLK_ENG_7539.indd 25 2013-02-18 11:55:48...
-
Page 26: Troubleshooting
The batteries in the remote control are exhausted. Replace the batteries with new ones. y Check whether the player is connected to the unit correctly. Connect it to the iPod/iPhone does not unit correctly. work. CM4630-FE_DAUSLLK_ENG_7539.indd 26 2013-02-18 11:55:48... -
Page 27: Appendix
THD 10 %) THD 10 %) THD 10 %) Surround mode 180 W Subwoofer (3 Ω at 1 KHz, THD 10 %) Frequency Response 100 to 20 000 Hz Signal-to-noise ratio 75 dB Dynamic range 80 dB CM4630-FE_DAUSLLK_ENG_7539.indd 27 2013-02-18 11:55:48... -
Page 28: Speaker Specifications
Rated Input Power 180 W Max. Input power 360 W Net Dimensions (W x H x D) 250 x 352 x 327 mm Net Weight 5.58 kg y Design and specifications are subject to change without notice. CM4630-FE_DAUSLLK_ENG_7539.indd 28 2013-02-18 11:55:48... -
Page 29: Maintenance
Apple is not responsible for the operation of For details, please contact your nearest authorized this device or its compliance with safety and service center. regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. CM4630-FE_DAUSLLK_ENG_7539.indd 29 2013-02-18 11:55:49... - Page 30 CM4630-FE_DAUSLLK_ENG_7539.indd 30 2013-02-18 11:55:49...
