Summary of Contents for LG CM4541

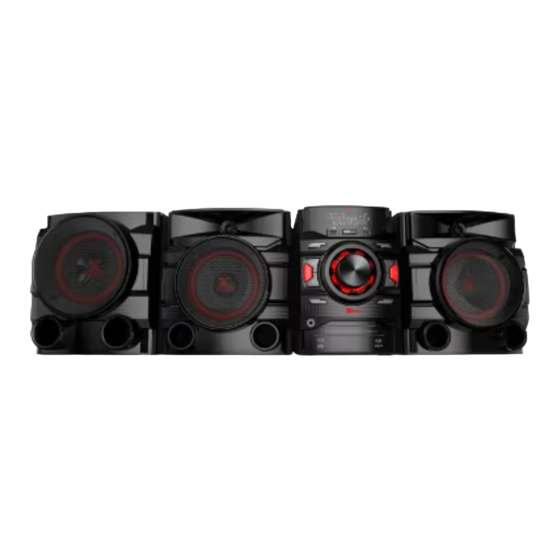

- Page 1 OWNER’S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. CM4541 (CM4541, CMS4540F, CMS4540W) CM4441 (CM4441, CMS4540F) CM4341 (CM4341, CMS4340F)
- Page 2 Getting Started Safety Information CAUTION CAUTION: This product employs a Laser System. RISK OF ELECTRIC SHOCK DO NOT OPEN To ensure proper use of this product, please read CAUTION: TO REDUCE THE RISK OF ELECTRIC this owner’s manual carefully and retain it for future reference.
- Page 3 Getting Started This device is equipped with a portable battery or Disposal of waste batteries/accumulators accumulator. 1. When this crossed-out wheeled Safety way to remove the battery or the bin symbol is attached to batteries/ battery from the equipment: Remove the accumulators of Your product old battery or battery pack, follow the steps it means they are covered by...
- Page 4 Getting Started LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU. Please contact to the following address for obtaining a copy of the DoC (Declaration of Conformity).
-
Page 5: Table Of Contents
– Attaching the speakers to the unit – Setting the surround mode – Attaching the subwoofer to the unit. Setting the Clock (CM4541) – Setting the Clock through “LG Antenna Connection Bluetooth Remote” App Optional Equipment Connection – Using your player as an alarm clock –... -
Page 6: Table Of Contents
Table of Contents Troubleshooting Troubleshooting Appendix Specifications Speaker specifications Maintenance – Handling the Unit – Notes on Discs Trademarks and Licenses... -
Page 7: Getting Started
Bluetooth. This unit and your device must be paired for Bluetooth. Visit “Google Android Market (Google Play Store)” or use the QR code shown below to search for “LG Bluetooth Remote” app. For detailed information, refer to page 26-27. (Android OS) -
Page 8: Playable File Requirement
This unit is not supported when the total discs. When setting the option to Live File number of files is 1,000 or more. System, you cannot use it on LG players. (Mastered/Live File System : Disc format system y External HDD, Card readers, Locked devices, or hard type USB devices are not supported. -
Page 9: Remote Control
Getting Started Remote Control Z ENTER : • • • • • • a • • • • • • - Stops playback or recording. 1 (Power) : Switches the unit ON - Cancels DELETE function. or OFF. d/M (Play/Pause) : B (Open/Close) : Opens and - Starts or pauses playback. -
Page 10: Front Panel
Getting Started Front Panel... - Page 11 ST./MO. - Starts or pauses playback. USB REC. - Selects Stereo/Mono. Records to USB. l LG EQ c 1/! (Power) You can choose sound impressions. Switches the unit ON or OFF. m U (Skip/Search) d I(Stop) - Searches forward.
-
Page 12: Rear Panel (Cm4541)
Getting Started Rear Panel (CM4541) a POWER IN b ANTENNA (FM) c AUX IN (L/R) connectors d Cooling fan e SPEAKERS terminal/cord... -
Page 13: Rear Panel (Cm4441, Cm4341)
Getting Started Rear Panel (CM4441, CM4341) a POWER IN b ANTENNA (FM) c AUX IN (L/R) connectors d SPEAKERS terminal... -
Page 14: Connecting
Connecting Connecting to Attaching the subwoofer to the unit. (CM4541) speakers Connect a woofer cord to the player. When connecting a woofer cord to the player, insert the connector until it clicks. Attaching the speakers to the unit To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. -
Page 15: Antenna Connection
Connecting Antenna Connection Optional Equipment Connection Connect the antenna to the antenna port on the back of the unit. Be sure to extend the FM wire antenna fully. USB Connection Connect the USB device (or MP3 player, etc.) to the USB port on the unit. -
Page 16: Aux In Connection
Connecting AUX IN Connection PORT. IN Connection Connect an output of auxiliary device (Camcoder, Connect an output (earphone or line out) of TV, Player, etc) to the AUX IN(L/R) connector. portable device (MP3 or PMP etc) to the PORT. IN connector. If your device has only one output for audio(mono), connect it to the left (white) audio jack on the unit. -
Page 17: Operating
Operating Basic Operations Auto Play AUDIO/MP3/WMA CD is played automatically after tray is open & closed. CD/USB Operations Automatically switches to the CD function if tray is open & closed when there is no disc in tray. 1. Insert the disc by pressing B on the remote Note control or R on the unit. -
Page 18: Other Operations
Operating Other Operations Searching for a folder 1. Press PRESET·FOLDER W/S on the remote control repeatedly until a desired folder appears in the display window. Programmed Playback 2. Press d/M to play it. The first file of the folder The program function enables you to make a will be played. -
Page 19: Deleting An Mp3/Wma File
Operating Note Deleting an MP3/WMA file You can enjoy other functions during You can delete a file, folder or format by pressing the DEMO. Then the DEMO will pause to DELETE. (USB only) temporary. 1. Press DELETE repeatedly while selecting the - Without input key in 10 sec, the DEMO MP3/WMA file. -
Page 20: Radio Operations
Operating Radio Operations Improving poor FM reception Press d/M on the remote control or T on the unit. This will change the tuner from stereo to Be sure that FM antenna is connected. mono. Then the reception will be better than (Refer to page 15) before. -
Page 21: Sound Adjustment
Operating Note Sound adjustment y On some speakers, sound may not be heard or heard in low sound depending on the sound mode. Setting the surround mode y Maybe you need to reset the surround This system has a number of pre-set surround mode, after switching the input, sometimes sound fields. -
Page 22: Setting The Clock
To cancel the sleep function, press SLEEP Bluetooth Remote” App repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed. Install “LG Bluetooth Remote” app on your Android device. (see page 26-27) Note Your unit’s clock will be automatically synchronized... -
Page 23: Advanced Operations
Operating Advanced Operations To select recording bit rate and speed 1. Press USB REC on the remote control or Listening to the sound from USB REC. on the unit for longer than 3 seconds. your external device 2. Use C/V on the remote control or The unit can be used to play the sound from many Y/U on the unit to select the bit rate. -
Page 24: Using A Bluetooth Wireless Technology
Operating Note Using a Bluetooth y It is not supported to record music stored wireless technology on bluetooth device. y You can check the recording percentage rate for the USB record on the display window during the recording. About Bluetooth (MP3/WMA CD Only) Bluetooth®... -
Page 25: Listening To Music Stored On The Bluetooth Devices
Bluetooth device to this unit again when you restart it. display depending on the type of Bluetooth y The sound may be interrupted when device.Your unit appears as “LG MINI (XX:XX)”. the connection interfered by the other Note electronic wave. -
Page 26: Using Bluetooth App
1. Tap the “Google Android Market (Google Play “LG Bluetooth Remote” app with this unit. Store)” icon. 2. In the search bar, type in the “LG Bluetooth Remote” and search it. About “LG Bluetooth Remote” App 3. In the search result list, find and tap “LG Bluetooth Remote”... - Page 27 Bluetooth Remote” App “LG Bluetooth Remote” app helps to connect your bluetooth device to this unit. 1. Tap “LG Bluetooth Remote” app icon on the home screen to open “LG Bluetooth Remote” app, and go to the main menu. 2. Tap [Setting] and select the unit you want.
-
Page 28: Troubleshooting
Troubleshooting Troubleshooting Problem Cause & Correction y The power cord is not plugged in. Plug in the power cord. y Check whether electricity failed. Check the condition by operating other No Power. electronic devices. y Check whether you select right function. Press FUNCTION and check the selected function. -
Page 29: Appendix
Appendix Specifications General Model CM4541 CM4441 CM4341 Power requirements Refer to the main label. Power consumption Refer to the main label. Dimensions (W x H x D) (206 x 308 x 284) mm Net Weight (Approx.) 3.0 kg 3.0 kg 3.0 kg... -
Page 30: Speaker Specifications
Appendix Speaker specifications Front speaker Model CMS4540F CMS4340F Type 2 Way 2 Speaker Impedance 3 Ω 4 Ω Rated Input Power 200 W 110 W Max. Input power 400 W 220 W Net Dimensions (W x H x D) (266 x 306 x 263) mm (200 x 306 x 200) mm Net Weight 3.1 kg... -
Page 31: Maintenance
The Bluetooth® word mark and logos are owned For details, please contact your nearest authorized by the Bluetooth® SIG, Inc. and any use of such service center. marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.
