BATTERY REPLACEMENT PROCEDURE

(Qualified service personnel only)
1. Turn off the equipment that is connected to the output sockets of the UPS.
2. Turn off the UPS.
3. Unplug the UPS power cord from the AC wall outlet.
4. Unplug the equipment from the output sockets of the UPS.

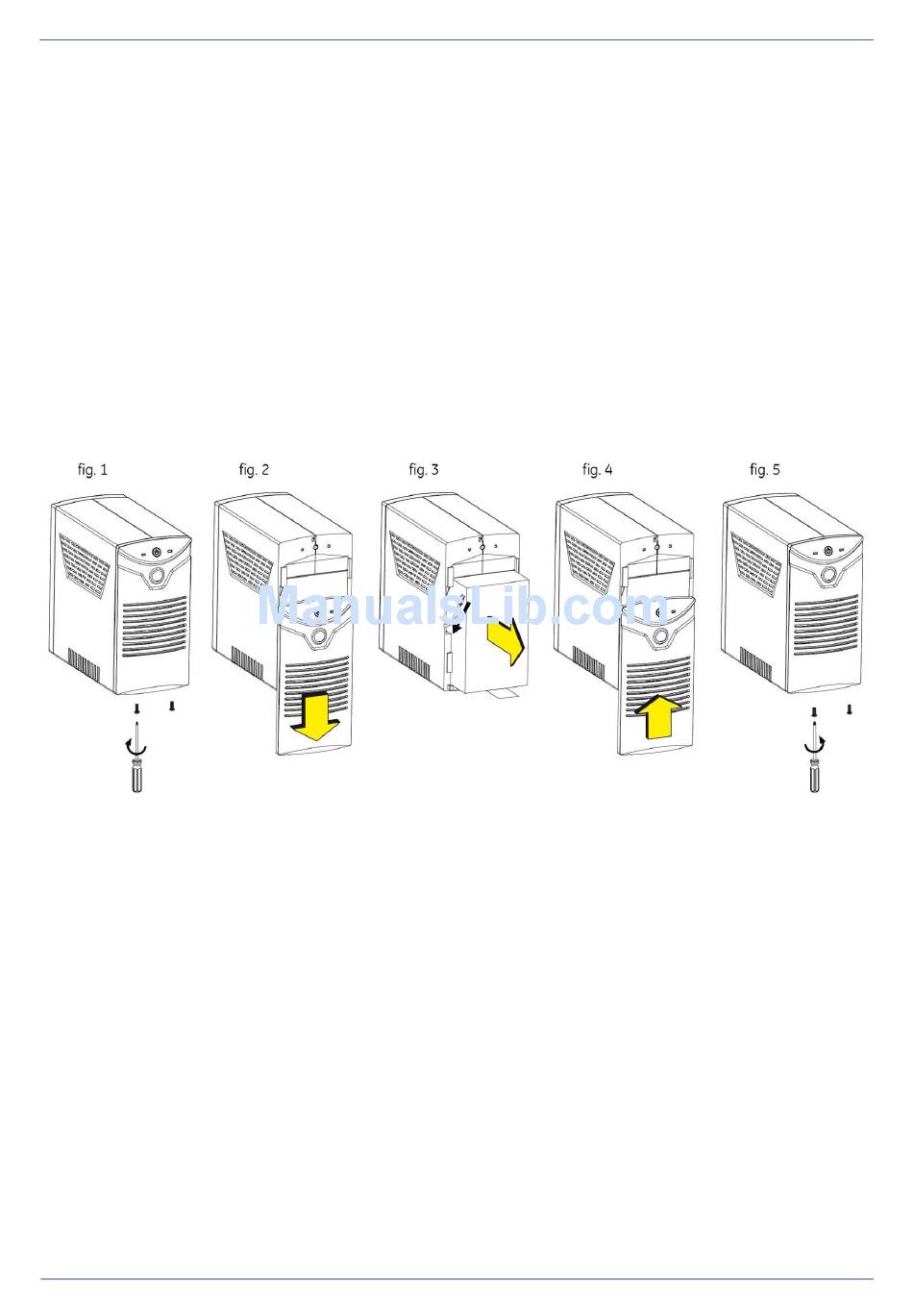

5. Remove the 2 screws at the bottom side of the front panel (fig. 1.)
6. Slide the panel downward, off the UPS (fig. 2).
7. Disconnect the red and black DC wires from the battery terminals (fig. 3).
NOTE : DO NOT short the battery wires.
8. Replace the battery.
9. Connect the battery wires to the battery terminals.
NOTE: a small spark might occur, this is normal.
10. Reinstall the front panel (fig. 4).
11. Fasten the two screws (fig. 5).
General guidelines
1. When replacing the batteries, use only the same type and size battery.
2. Never short the battery terminals. Shorting may cause the battery to burn. When working with batteries remove
watches, rings or other metal objects and only use insulated tools.
3. Avoid charging in a sealed container.
4. Never dispose of batteries in a fire: they may explode.
5. Never disassemble or reassemble batteries; their contents (electrolyte) may be extremely toxic. If exposed to
electrolyte, wash immediately with plenty of water, if eye contact occurs flush with water and contact a physician.
