Preview:
In normal observation mode, press the Preview
The saved image will be shown on the screen. The up/down and tool buttons can be used
to change pages and erase the image. Press the Preview button again to exit this mode.
Dual Window Compare:
While in Preview mode, press the SET button to enter the Compare mode. The recalled
image will appear in the left window and the targeted image will be shown in the right
window. Press SET button again to leave this mode.

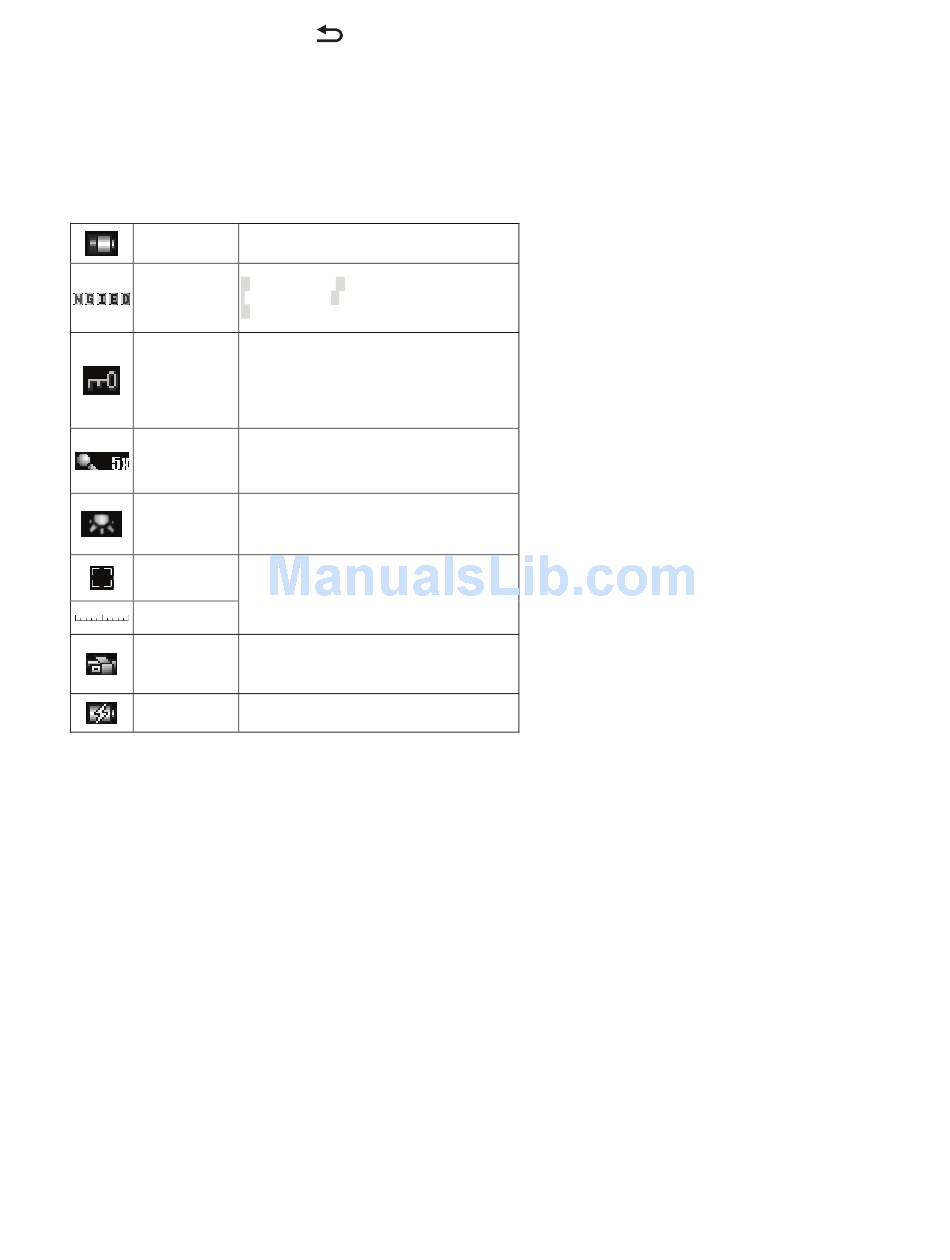

Status
Battery Low
Image Effect
Freeze
Magnifying
Image Quality and
LED Brightness
Frame-center
Ruler
Power Supply
by USB or adapter
Charging
button to recall a saved image.
Battery power is low.
N: Normal Mode G: Gray Mode
I: Inverse Mode E: Emboss Mode
D: Dual Window View Mode
When in Dual Window View mode or Dual Window
Compare mode. Pressing Confirm button will enter
Freeze mode. Press Confirm button again to leave
Freeze mode.
Current magnification rate is shown when the
indicator is located at text 7 and 27.
Three levels of adjustment.
Hold the Special Effects button for 3 seconds to
switch between frame-center mark and ruler.
Power is supplied by USB cable to PC or an
adaptor. .
Recharging batteries engaged.
