13 Servicing

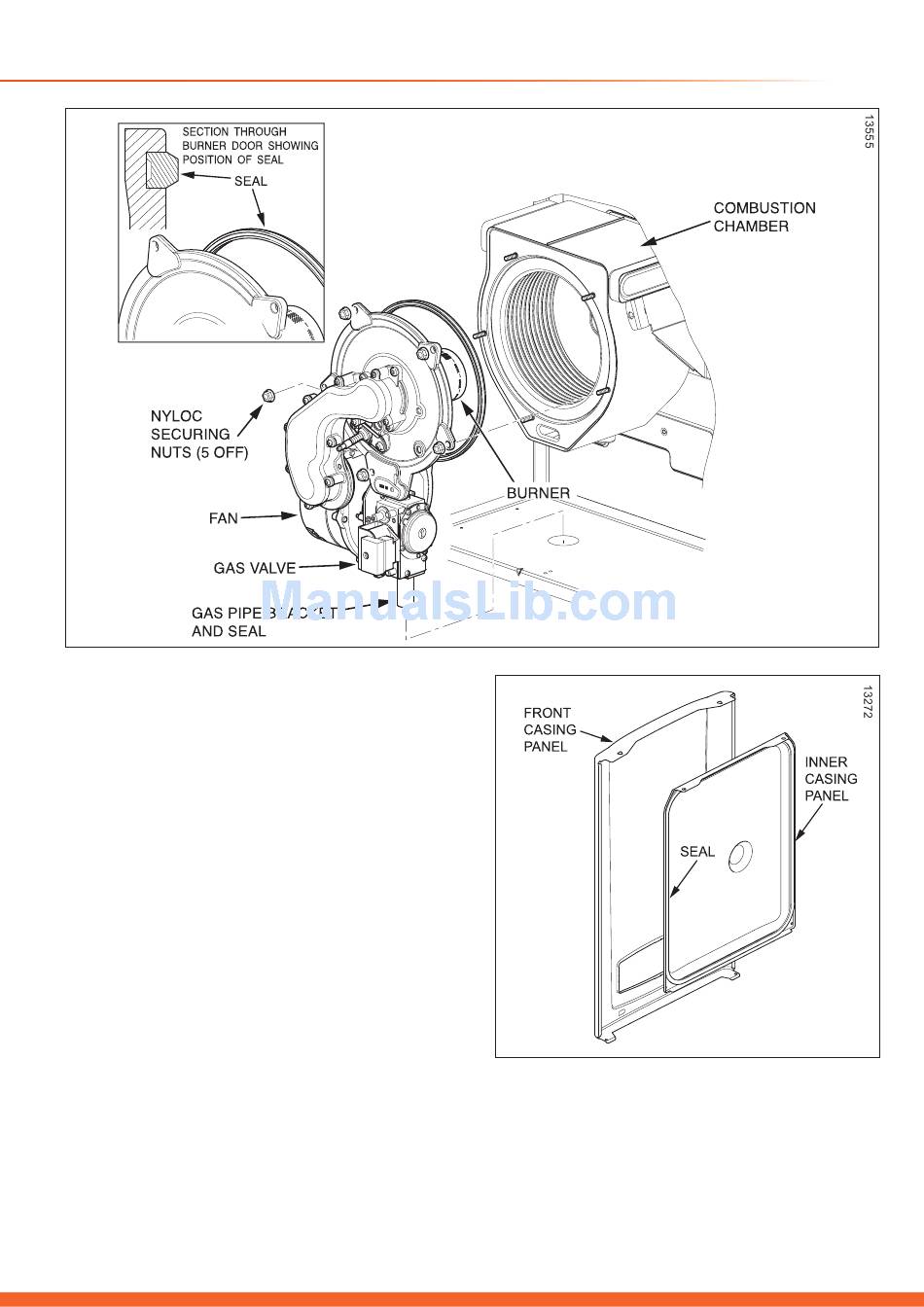

Diagram 13.7
13.4. Combustion Chamber and Heat
Exchanger
Remove loose debris from inside the combustion chamber
using a soft brush and vacuum cleaner.
Carefully flush by spraying water into the heat exchanger, any
remaining debris should pass through the condensate trap
(Ensure the water is kept away from electrical components).

13.5 Inner Casing Panel Seal check

Check the condition of the seal, if worn or damaged remove
the seal and thoroughly clean the casing surface before fitting
the new seal, see diagram 13.8.
Refit the inner casing panel.
NOTE: Ensure the seal is fitted correctly giving an airtight
joint.

13.6 Service Completion

Re-check the combustion as described at the beginning of
this section.
Diagram 13.8
On completion of the service the "Benchmark" Service Record
should be completed.
45
