Audio Connections

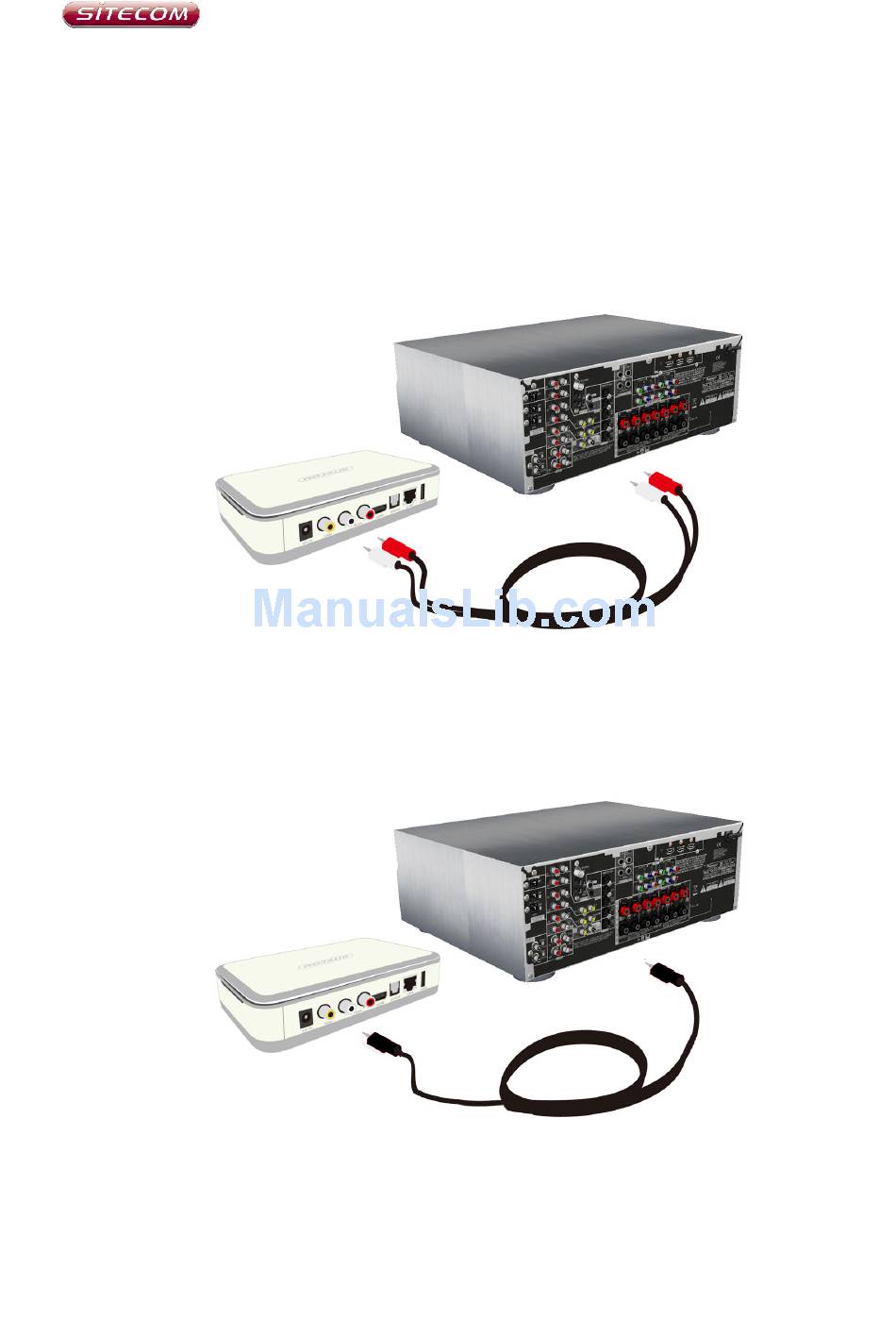

The MD-270/WL-355 supports S/PDIF optical digital and RCA analogue connections
for the stereo audio signal. Both connections can be used simultaneously.
• Analogue Audio (RCA)
Plug the supplied red and white connectors into the colour-coded Audio
connectors on the rear panel of the MD-270/WL-355. Connect the red plugs to the
Right (R) jacks and the white plugs to the Left (L) jacks on the MD-270 and the
TV or stereo amplifier to which it is connected.
• Optical Digital Audio (S/PDIF)
Plug the S/PDIF connector of an S/PDIF compatible cable (not included) into the
S/PDIF connection on the rear panel of the MD-270/WL-355. Plug the connector
other end of the cable into the S/PDIF connection on the DVD player, game
console or other device.
