Sitecom MD-270 Manual

Tv media player wireless connection
Hide thumbs Also See for MD-270:

Advertisement

Quick Links

Download this manual See also: Full Manual
TV Media Player
Wireless Connection Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD-270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sitecom MD-270

Summary of Contents for Sitecom MD-270

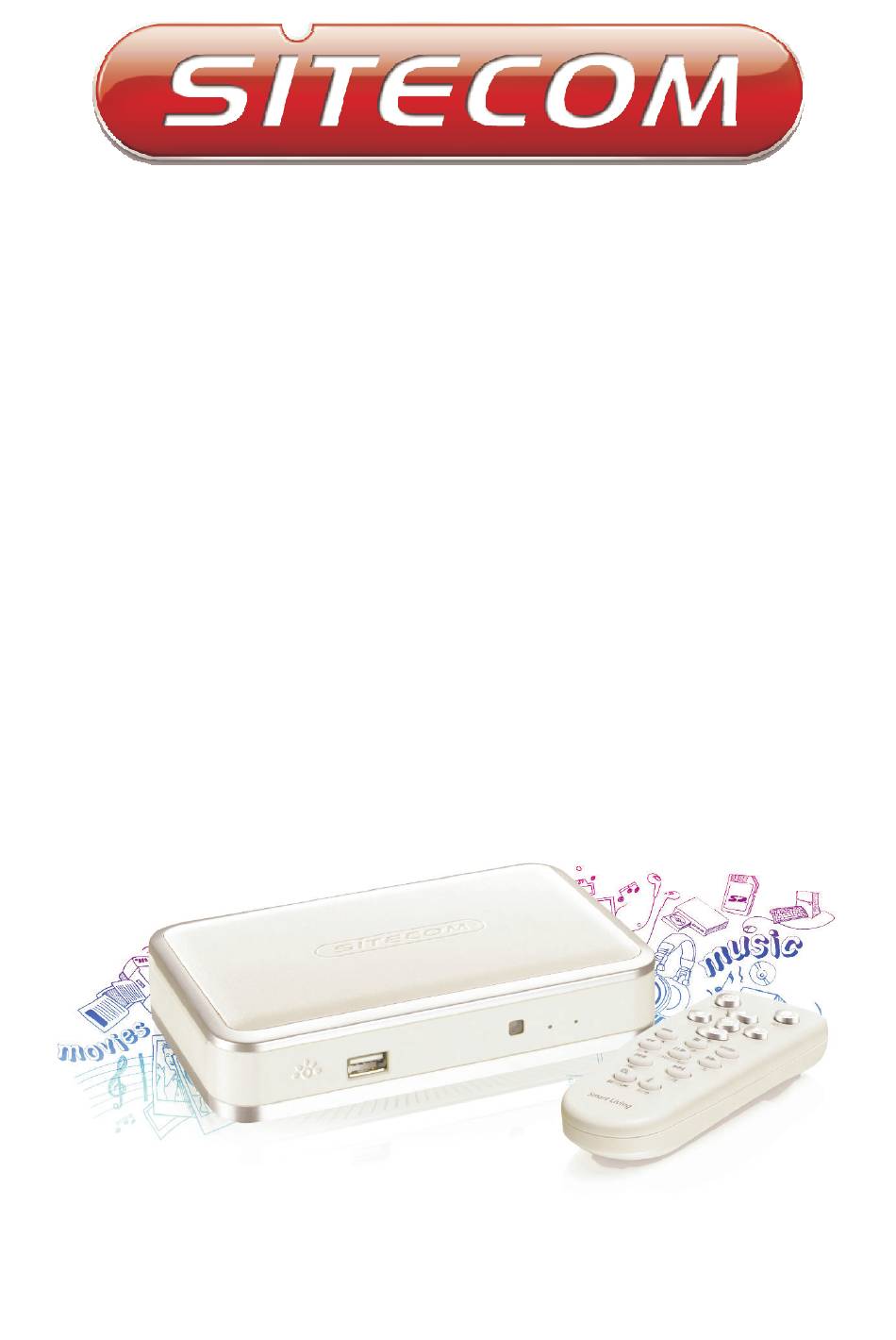

  • Page 1 TV Media Player Wireless Connection Manual...

  • Page 2: Table Of Contents

    Wireless Connection Manual Revision 1.0 Table of Contents 1. Start the Wizard ....................3 2. WPS Push Button ....................5 3. WPS PIN ......................7 4. Manual Connect – Site Survey ................10 5. Manual Connect – Manual SSID ................. 13 6.

  • Page 3: Start The Wizard

    To configure your TV Media Player for a Wireless Connection, you need to insert the Sitecom Wireless Media Adapter 300N into one of the USB ports on your TV Media Player. Then you need to start the Network Configuration Wizard. This wizard is automatically started when you start the TV Media Player up for the first time, but can also be accessed from the Settings menu.
  • Page 4 You can choose from 3 different connection methods, which are described in the next chapters.

  • Page 5: Wps Push Button

    If your router has a WPS button, please press it now. Refer to the manual of your router for the proper procedure. Afterwards, please select “CONNECT” on the screen, or press the button on top of the Sitecom Wireless Media Adapter 300N that’s connected to your TV Media Player.
  • Page 6 Select “Auto” if your router has a DHCP server. This is the option that you should normally choose. Select “Advanced Setup” if you want to manually assign an IP- address to the TV Media Player. Please refer to page 30 of the TV Media Player Manual for the steps to manually assign an IP-address.

  • Page 7: Wps Pin

    3. WPS PIN Select “WPS PIN mode” if you want to connect to your network using a preset PIN code on your router. Please refer to the manual of your router for the location where to find the PIN code. The TV Media Player starts searching for wireless networks.
  • Page 8 Note the PIN code and apply it in the settings menu of your router. Refer to the manual of your router for this. After you’ve done this, select the “CONNECT” button to continue. The WPS connection is now being established. After a while you’ll see the screen below. Select “Auto”...
  • Page 9 The wireless connection is now being established. After a while you’ll see the screen below. You have successfully set up your device for your home network. Click “Finish” to exit the Wizard.

  • Page 10: Manual Connect - Site Survey

    4. Manual Connect – Site Survey Select “Search wireless network” if you want to manually connect to a network. The TV Media Player starts searching for the wireless networks nearby. Select your network from the list and press the OK button on the remote control.
  • Page 11 If your network has security enabled you will now be asked to type in the security key. Please note that the key is case sensitive. When you’re finished, select “Next” to continue. Select “Auto” if your router has a DHCP server. This is the option that you should normally choose.
  • Page 12 You have successfully set up your device for your home network. Click “Finish” to exit the Wizard.

  • Page 13: Manual Connect - Manual Ssid

    5. Manual Connect – Manual SSID If you selected “Search wireless networks” and your network was not in the list, select the option “Not in list” and press the OK button on the remote control. Type in the network name (SSID) of the wireless network you’re trying to connect to. Please note that the SSID is case sensitive.
  • Page 14 If your network has security enabled you will now be asked to type in the security key. Please note that the key is case sensitive. When you’re finished, select “Next” to continue. Select “Auto” if your router has a DHCP server. This is the option that you should normally choose.
  • Page 15 You have successfully set up your device for your home network. Click “Finish” to exit the Wizard.

  • Page 16: Wireless Favorites

    6. Wireless Favorites The TV Media Player saves the settings for every network it’s made a successful connection to in the past. The maximum number of profiles that can be stored is 10. Select the option “Wireless Favorite” and press the OK button on the remote control if you want to manage the connections.
  • Page 17 If you want to delete a profile, press the Option button and press the OK button to delete. When you’ve successfully set up a wireless connection, you can view the status of the connection in the Network settings page.
