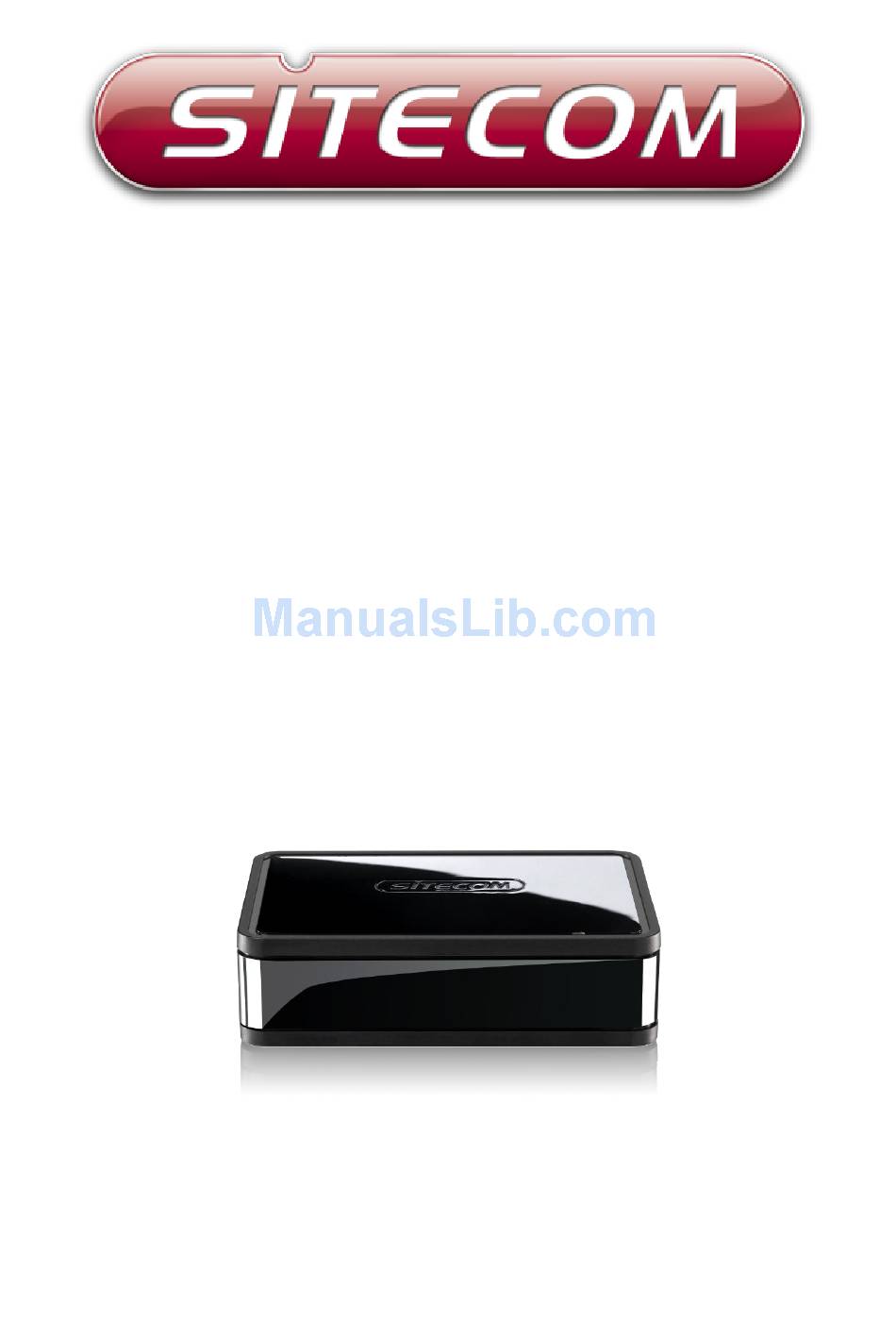

- Page 1 Wi-Fi Music Player WMA-1000 Full Manual...
- Page 2 • Stream music directly to your stereo using your iPhone, iPod, iPad or even your Mac. DLNA • Stream music directly to your stereo using your Android phone or PC. • Use the Sitecom Imedia app to stream music from any location in your network.
-
Page 3: Table Of Contents
Addendum C: Declaration of Conformity ..........27 Revision 1.0 © Sitecom Europe BV 2013 Note: All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device’s software may have a slightly different appearance or modified functionality than presented in this manual. -
Page 4: Key Features
Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package. The contents of the package of the Sitecom Wi-Fi Music Player are: • Sitecom Wi-Fi Music Player •... -
Page 5: Cautions
Cautions This player’s design and manufacturer has your safety in mind. In order to safely and effectively use this player, please read the following before usage. 3.1 Usage Cautions User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5 ~ +35 degrees Celsius. -
Page 6: Product Layout
Product Layout 4.1 Front Panel Item Description The LED lights red when the device is switched on. During Power LED audio streaming it is lit green. Note: from firmware version 1.1.21A the device will light purple when it is configured but not connect to a Wi-Fi network. -

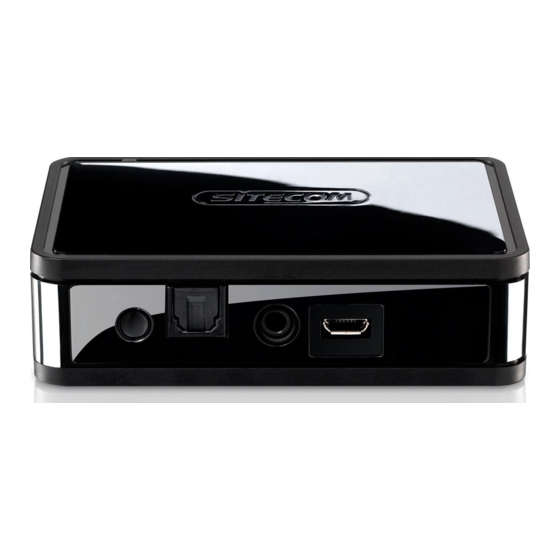

Page 7: Back Panel
4.2 Back Panel Item Description S/PDIF Use this port to connect the S/PDIF cable. WPS / OPS button Use this button to connect the device to your wireless network if WPS / OPS is supported. Audio Jack Use this port to connect the RCA / audio jack cable. Power Use this port to connect the supplied 5v power-adapter. -
Page 8: Getting Started
Getting Started Before beginning the installation, please read through the installation procedure described in this manual. 5.1 Installation Requirements To begin using the Wi-Fi Music Player, you will need: • An output equipped with either S/PDIF or analogue input channel. •... - Page 9 • Digital Audio (S/PDIF) Connect the supplied 5V DC adapter to a free wall socket. Connect the other end to the designated port on the back of the Wi-Fi Music Player. Plug an optical cable into the corresponding port on the back of the Wi-Fi Music Player.
-
Page 10: Connecting The Wi-Fi Music Player To Your Network
6.2 Connecting the Wi-Fi Music Player to your network without OPS (Manual Setup) If the wireless router that you are using is not Sitecom branded, or it does not support WPS / OPS setup follow below steps to connect the Wi-Fi Music Player to your network;... - Page 11 Login with username and password: admin 3.
- Page 12 Wait two minutes. You should now be able to play your music following the included Quick Installation Guide.
-
Page 13: Configuring Your Wi-Fi Music Player
At the bottom left of the screen there are 3 options: Sitecom: clicking Sitecom will take you to the Sitecom website. Mobile: select Mobile if you are accessing the Wi-Fi Music Player from a mobile device (this enhances the interface to be viewed on mobile browsers). -
Page 14: Status
Once logged into the device you’ll see the status-page. The status-page displays the actual settings of the device: Device name: the device-name given to the device (by default Sitecom-XXXX). Language: the chosen language of the interface. Airplay Service: displays whether the Airplay service is enabled or disabled. - Page 15 Firmware Upgrade: clicking this button will allow you to upgrade the firmware of the device the screen shows you the following: Select the firmware file which can be downloaded from: www.sitecom.com and choose upgrade. Note: as described in the same screen, never shutdown or reboot the device while the...
-
Page 16: Settings
Settings Page The settings page allows you to configure the device, e.g. enable or disable stream- services, change password, change device name…. Device name: this field allows you change the device-name of the device, by changing the name you can customize how the device appaers on playback devices. -
Page 17: Wi-Fi Setup
Wi-Fi Setup Page The Wi-Fi setup page allows you to manually setup a wireless connection if OPS / WPS are not supported. It also displays the current Wi-Fi status. Join into wireless lan: when this option is not checked, the device is broadcasting his own SSID. -
Page 18: Addendum A: Gnu/Gpl Leaflet
Addendum A: GNU/GPL Leaflet Licensing Information Parts of the firmware of the WMA-1000 Wi-Fi Music Player are subject to the GNU general public license. This product includes third-party software licensed under the terms of the GNU General Public License.. You can modify or redistribute this free software under the terms of the GNU General Public License. -
Page 19: Addendum B: Gnu/Gpl
Addendum B: GNU/GPL Version 3, 29 June 2007 Copyright © 2007 Free Software Foundation, Inc. http://fsf.org/ Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. -
Page 20: Terms And Conditions
TERMS AND CONDITIONS 0. Definitions. “This License” refers to version 3 of the GNU General Public License. “Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. “The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees”... - Page 21 2. Basic Permissions. All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work.
- Page 22 works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate. 6. Conveying Non-Source Forms. You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways: a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software...
- Page 23 User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network. Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.
- Page 24 and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.
- Page 25 patent license to downstream recipients. “Knowingly relying” means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.
- Page 26 15. Disclaimer of Warranty. THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
-
Page 27: Addendum C: Declaration Of Conformity
Addendum C: Declaration of Conformity...
