3.

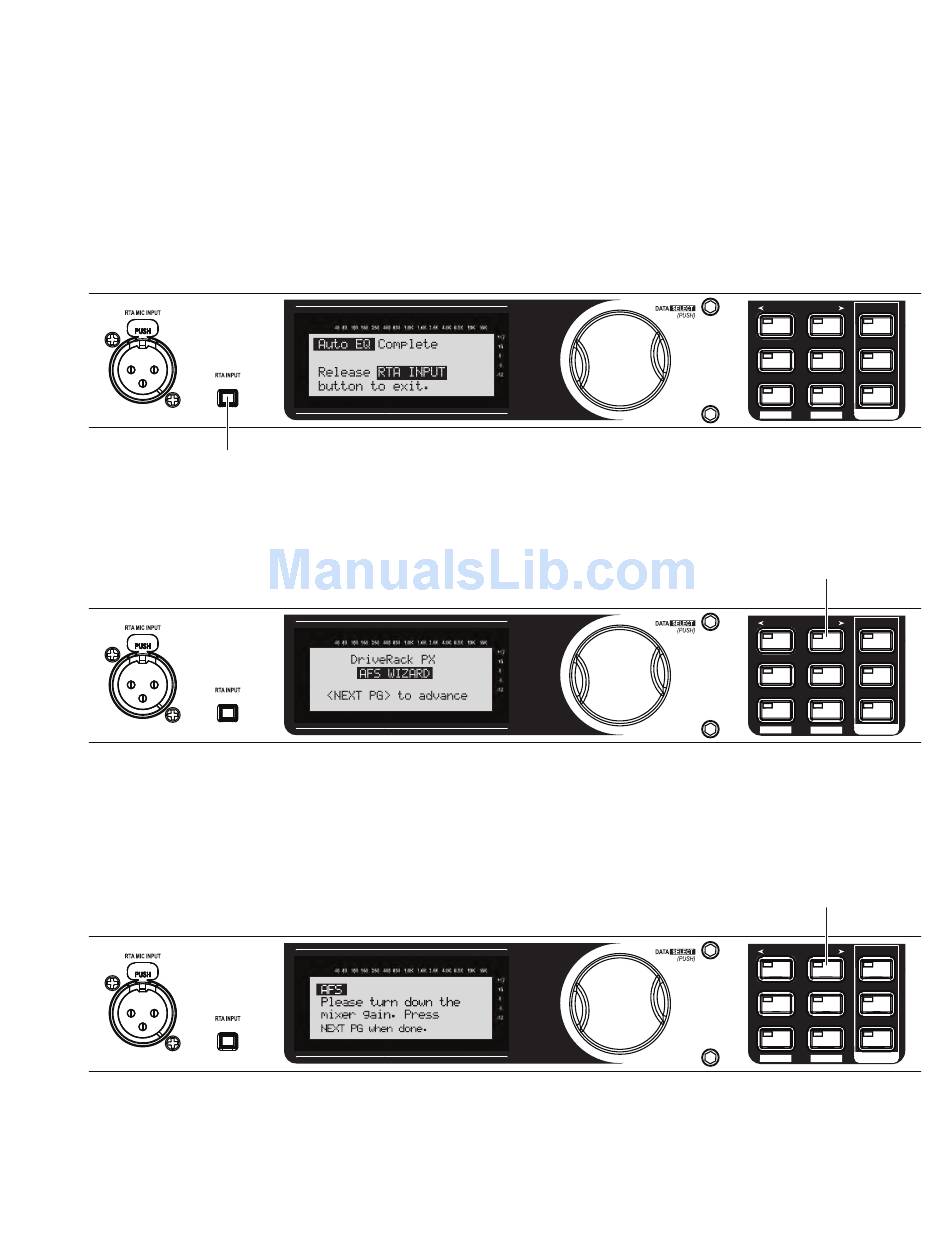

Auto-EQ will complete or finish sending pink noise once it has come as close as possible to matching
the Frequency response you selected earlier. Press the RTA INPUT button to release it and continue on
to the AFS wizard.
NOTE: If the Auto-EQ doesn't complete after several minutes, you may need to press the RTA INPUT
button to release it and continue on the AFS wizard. You can do this during the Auto-EQ process, or
when the Auto-EQ wizard prompts you.
Press the RTA INPUT button.
4.
Now the AFS wizard will begin.
5.
10
A. Turn down the mixer Master or
Main level faders on your mixer.
PREV PG NEXT PG
SUBHARMONIC COMP LIMITER
PRESET STORE
RECALL UTILITY
Press the NEXT PG button.
PREV PG NEX PG
SUBHARMONIC COMP LIMITER
PRESET STORE
RECALL UTILITY
B. Press the NEXT PG button.
PREV PG NEX PG
SUBHARMONIC COMP LIMITER
STORE
PRESET
RECALL UTILITY
SETUP
EQ
AFS
WIZARD
SETUP
EQ
AFS
WIZARD
SETUP
EQ
AFS
WIZARD
