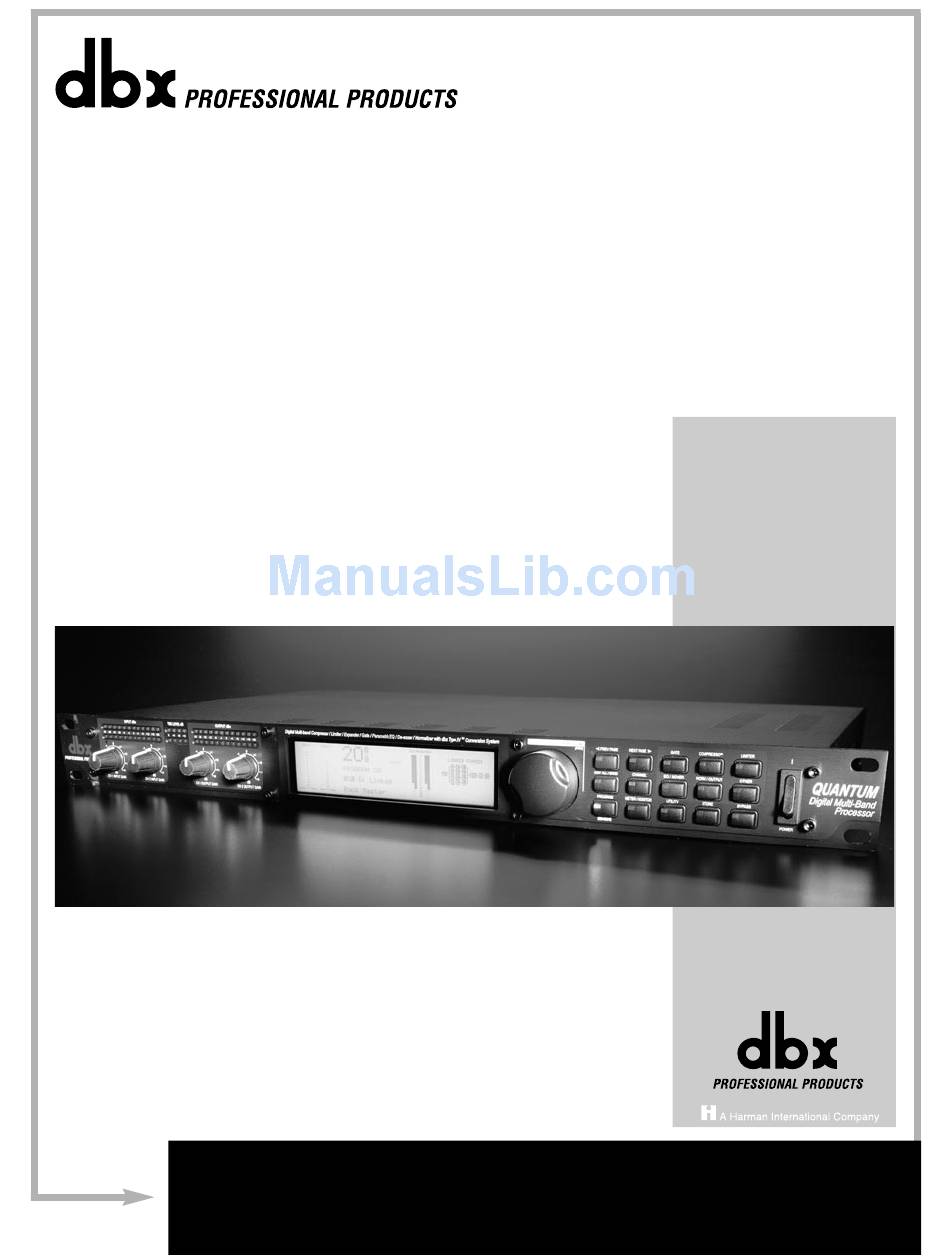

- Page 1 ® Quantum Di g i t al Mul t i - Band Processor ® In-Ear Monitor Application Guide...
- Page 2 In-Ear Monitor Application Guide Welcome! This application guide has been created to provide you with pertinent infor- mation regarding the dbx Professional Products Quantum and its ability to act as a stand alone in-ear monitoring processor. Defining the Quantum In-Ear Monitor System...
-

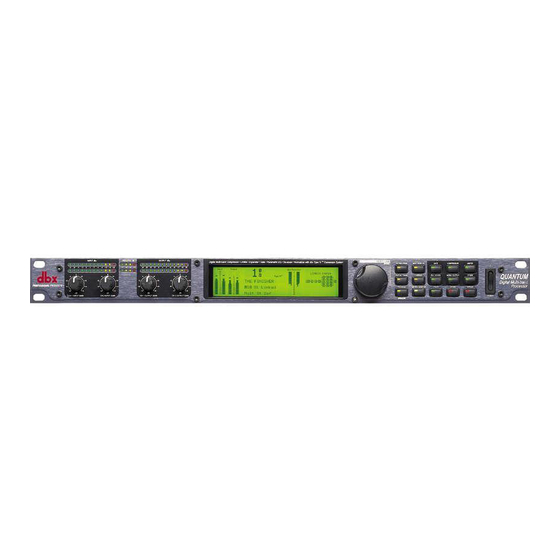

Page 3: Front Panel
VCXO clock chips are designed for low-jitter performance. You may use the QUANTUM as a mas- ter clock source (i.e., you may slave other processors to the QUANTUM) or you may slave the QUANTUM’s clock to any other source device. - Page 4 After you have chosen a program, you may want to change some of the parameters to meet your specific needs. One of the QUANTUM’s most useful tools for creating compression curves is the curve window, which allows you to see the combined effects of dynamics- related parameters in a graphical format.
-
Page 5: Signal Path
"WORKING.." Then, a custom setup will appear. If you are working in a stereo setup, the QUANTUM will allow you to optimize your output gain. To do so, push the EDIT ALL/BAND button while the loudest part of the program mate- rial is passing through the QUANTUM. - Page 6 Wizard, press and hold the PROGRAM button. Once in the Wizard mode, select the task you wish to perform. (The QUANTUM will automati- cally choose the correct chain type for your task.) If you select Mastering or Mixing, the Wizard will then ask you to select the type of music being played.
-
Page 7: Making Connections
• From the Utility menu, you will need to select the input setting of: ANALOG. It is also recommended that the clock be set to 96 kHz. This is to ensure that the Quantum will sample at the analog signal at the highest sampling rate. - Page 8 Quantum In-Ear Monitor Application Guide Mixer to QUANTUM to In-Ear Transmitter Out- Out- Stereo Mix Stereo Mix Output - 1 Output - 2 Quantum Quantum Input -Ch 1 Input - Ch 2 Out- Out- Quantum Quantum Ch - Ch1 Ch - 2 In-Ear Trans.
- Page 9 Quantum In-Ear Monitor Application Guide Mixer to X-Over to QUANTUM/Sub to In-Ear Transmitter Out- Out- Subwoofer Stereo Mix Stereo Mix Output - 1 Output - 2 Power Amp X-Over Quantum Quantum Input -Ch 1 Input - Ch 2 Out- Out-...
- Page 10 Quantum In-Ear Monitor Application Guide Mixer to QUANTUM to In-Ear Transmitter w/ Sub Out Out- Out- Stereo Mix Stereo Mix Output - 1 Output - 2 Quantum Quantum Input -Ch 1 Input - Ch 2 Out- Out- Quantum Quantum Ch - Ch1 Ch - 2 In-Ear Trans.
- Page 11 Quantum In-Ear Monitor Application Guide ®...
- Page 12 Quantum In-Ear Application Guide...
- Page 13 8760 South Sandy Parkway • Sandy, Utah 84070 Phone: (801) 568-7660 • Fax (801) 568-7662 • Int’l Fax: (219) 462-4596 Questions or comments? E-mail us at: customer@dbxpro.com or visit our World Wide Web home page at: www.dbxpro.com A Harman International Company Quantum In-Ear MOnitor Application Guide...
