Maxatec MD-500 User Manual

Mini dot impact printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

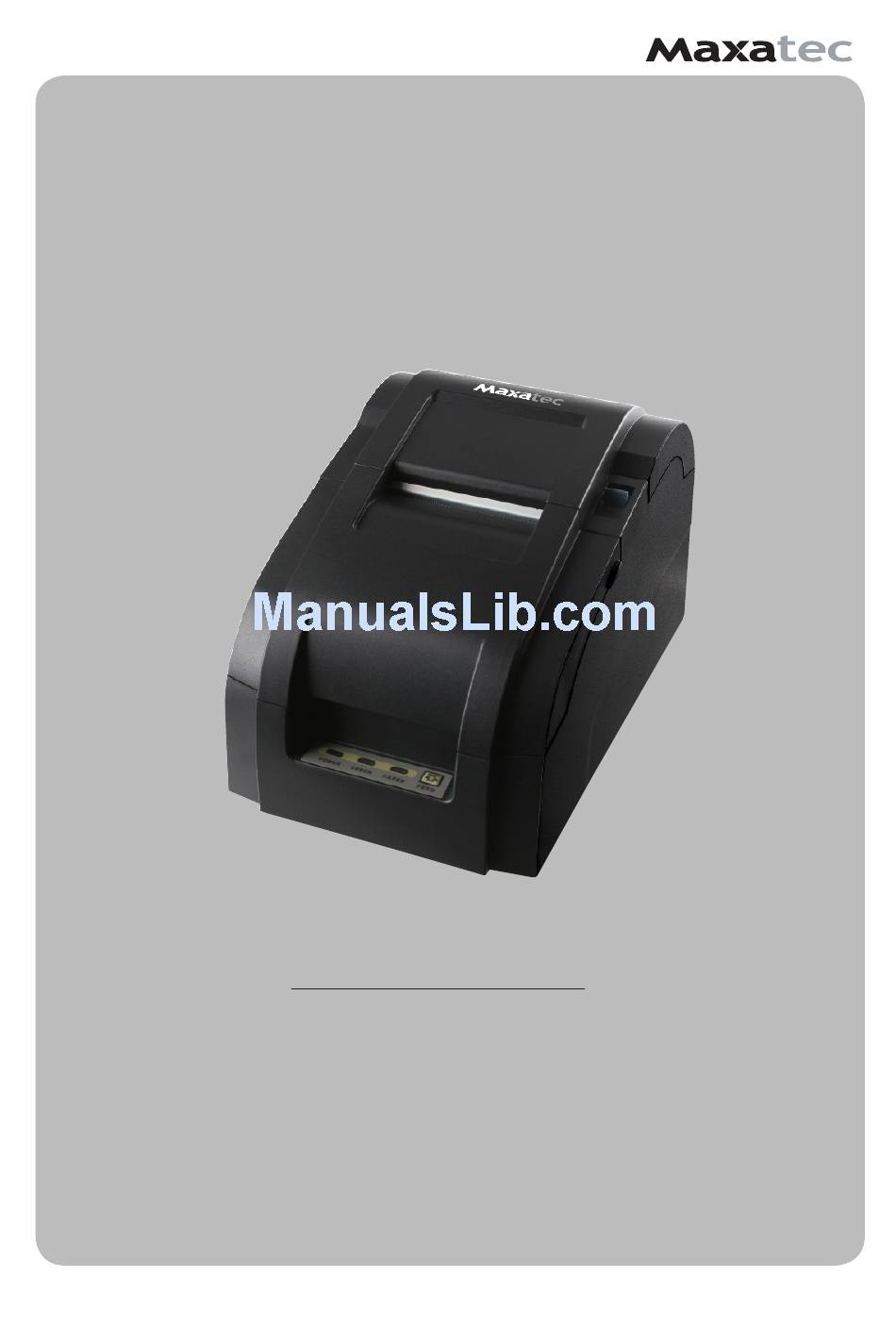

MODEL : MD-500
Mini Dot Impact Printer
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxatec MD-500

Summary of Contents for Maxatec MD-500

  • Page 1 MODEL : MD-500 Mini Dot Impact Printer All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    ♣Data Buffer 3. Self Test The MD-500 printer has a built-in 16 Kilobyte I/O buffer allowing the host computer to free itself after 4. User Switches sending the print data. ♣Reliable communications 5.

  • Page 4: Specification

    2. Specification Printer Specifications Overall dimension MODEL MD-500 PRINT METHOD 9-pin serial impact dot matrix PRINT DIRECTION Bi-directional (with logical seeking) NO. OF COLUMNS Epson Mode : 42/35, 40/33, Star Sp200 : 42/35 Other Modes : 40/32 FONT SIZE 7 x 9, 9 x 9 dots...

  • Page 5: Self Test

    If the printer setup needs to be changed, turn the Power Off before changing the setting. This section explains the different patterns signaled by the two LED indicators located on the top cover of the MD-500. The printer will be setup at the factory as follows;...

  • Page 6: Command List

    5. Command List 5.1. EMULATION EPSON TM-U200 5.2. EMULATION CITIZEN iDP-3540 Command Hex Code Description Command Hex Code Description <09>H Horizontal tab <07>H Drive pulse setting command for 1st drawer <0A>H Print and line feed <18>H Clear data in buffer <0D>H Carriage Return <0A>H...

  • Page 7: Emulation Star Sp200

    6. Interface 6-1. Interface Connector 5.3. EMULATION STAR SP200 Command Hex Code Description Differed drive command “A” for peripheral unit <07>H (Default setting) <18>H Cancel print data in buffer <0A>H Line feed <0D>H Line feed (same as LF) <0E>H Select expanded character mode <D-SUB 25 Female Serial>...

  • Page 8: Cash Drawer Connector

    7. Cash Drawer Connector Centronics Parallel Interface The MD-500 can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510 ms or less, when not printing.

  • Page 9: Electrical Specifications

    8. Electrical Specifications 9. Dip Switch Settings The MD-500 requires a power supply with the following parameters. This table gives the definition for the DIP switch settings. A linear power Adapter is included in the MD-500 box. Function Setting Power Supply Voltage : 24VDC±10% Power Supply Current : 2.5 A...
  • Page 10 Function Setting Epson TM-U200 Epson TM-U300 Emulation Citizen iDP3540 Star SP200 CR=CR Only Character CR=CR + LF 40/33 Char/Line 42/35 Char/Line Auto Not Installed Cutter Installed Not Installed 2 Color Installed Not Installed Journal Installed Function Setting Auto Not Install Melody Installed...
  • Page 12 Rev. 1.0...
