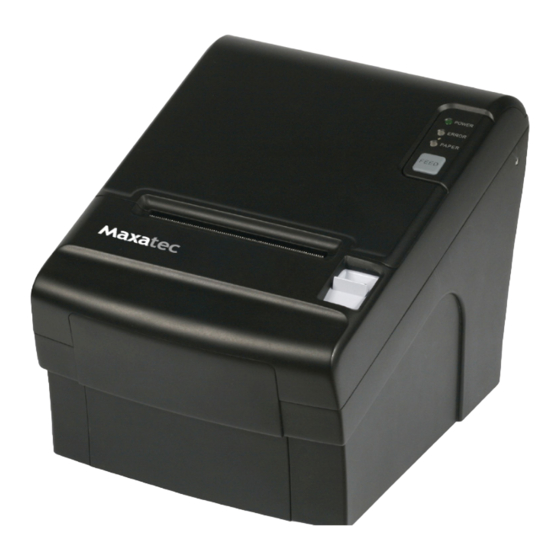

Maxatec MT-200E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL : MT-200E
Receipt Printer User's Manual
MT-200E Rev.A 9/12
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-200E and is the answer not in the manual?

Questions and answers

Related Manuals for Maxatec MT-200E

Summary of Contents for Maxatec MT-200E

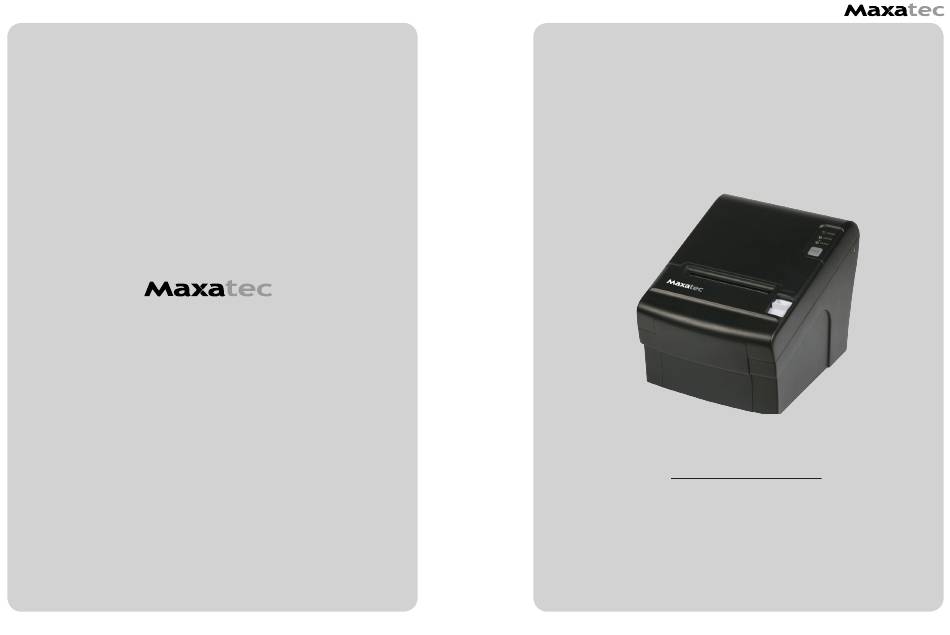

  • Page 1 MODEL : MT-200E Receipt Printer User’s Manual MT-200E Rev.A 9/12 All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    Table of Contents 1. Parts Identifications 1. Parts Identifications 2. Setting up the printer CONTROL PANEL 2.1 Unpacking Features LED indicators to indicate printer status 2.2 Connecting the cables and switches to operate PRINTER COVER 2.3 Loading the roll paper the printer.

  • Page 4: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : dealer for assistance.
  • Page 5 2-2-1. Interface Connector Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA 0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output Paper empty SELECT Output Printer status for ON/OFF line <D-SUB 25 Female Serial>...

  • Page 6: Loading The Roll Paper

    2-2-2. Cash Drawer Connector 2-3. Loading the Roll Paper The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.
  • Page 7 5. Be sure to note the correct direction that the paper comes off the roll. ♣CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming. 1.

  • Page 8: Adjustment Of Paper Width

    3. Control panel and other functions 3-1. Control panel 2-4. Adjustment of paper width 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’...

  • Page 9: Self Test

    5. ASCII Print 4. Self Test ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works The self-test result indicated whether the printer is operating properly. Also with this, user can check properly with this following options or status of the printer.

  • Page 10: Hexadecimal Dump

    7. Hexadecimal Dump 8. Printer cleaning This feature allows experienced users to see exactly what data is coming to the printer. This can be If the interior of the printer is dusty, printing quality can be lowered. useful in finding software problems. In this case, follow the instructions below to clean the printer.

  • Page 11: Specifications

    9. Specifications Appendix A : Specifications 9-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute 9-1. General Specifications (2) Thickness of paper 0.06 ~ 0.09 mm (1) Printing Method Direct line thermal printing. (3) Cutter Life 1.5 million cuttings (2) Print speed 200mm/sec (3) Dot density...

  • Page 12: Environmental Requirements

    10. Command List ♣Important! Command Function REMARKS When connecting or disconnecting the power supply from the printer, be sure that the Horizontal tab following cautions are observed. Print and line feed (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Print and carriage return (2) Be careful about installing the printer in an area where there is noise.
  • Page 13 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
