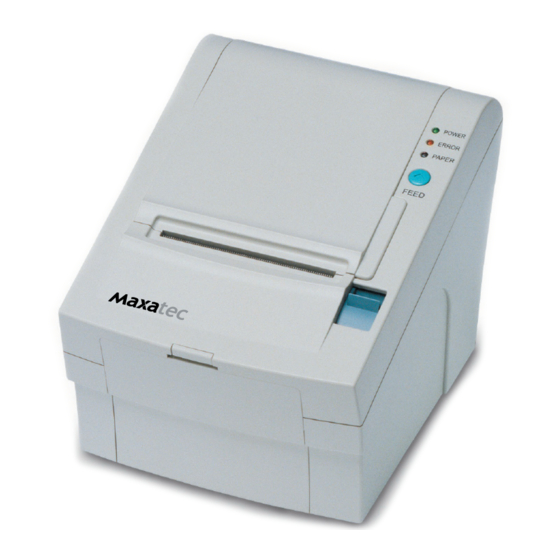

Maxatec MT-150 User Manual

Mt-150 receipt printer user’s manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

MT-150
Receipt Printer User's Manual
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxatec MT-150

Summary of Contents for Maxatec MT-150

  • Page 1 MT-150 Receipt Printer User’s Manual All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    MT-150 User’s Manual TABLE OF CONTENTS 1. Parts Identifications 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Dip switch setting 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicating...

  • Page 4: Setting Up The Printer

    MT-150 User’s Manual MT-150 User’s Manual 2. Setting Up the Printer 2-2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : 2-1.
  • Page 5 MT-150 User’s Manual MT-150 User’s Manual 2-2-1. Interface Connector Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output...

  • Page 6: Loading The Roll Paper

    MT-150 User’s Manual MT-150 User’s Manual 2-3. Loading the Roll Paper 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less...

  • Page 7: Dip Switch Setting

    MT-150 User’s Manual MT-150 User’s Manual 5. Be sure to note the correct direction that the paper comes off the roll. 2-4. Dip Switch Setting The printer is set up at the factory to be appropriate for almost all users. On the other hand, offers some more settings for users with special requirements.
  • Page 8 MT-150 User’s Manual MT-150 User’s Manual 2-4-2. Parallel Interface Specification 2-4-4. USB Interface Specification DIP Switch Set 1 Function DIP Switch Set 1 Function FUNCTION DEFAULT FUNCTION DEFAULT Hexadecimal HEXDUMP NORMAL Hexadecimal HEXDUMP NORMAL Bi-Parallel mode DISABLED ENABLED Print Density (DIP-SW2)
  • Page 9 MT-150 User’s Manual MT-150 User’s Manual DIP Switch Set 2 Functions 2-4-5. Wi-fi Specification Cutter DIP Switch Set 1 Function FUNCTION Remarks FUNCTION DEFAULT Cutter FULL CUT PARTIAL CUT Only Epson mode Hexadecimal HEXDUMP NORMAL Emulation Print Density (DIP-SW2) FUNCTION...
  • Page 10 MT-150 User’s Manual MT-150 User’s Manual ♣CAUTION: ♣CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power Turn off the printer while removing the DIP switch cover to prevent an electric short, which can damage the printer.

  • Page 11: Control Panel And Other Functions

    MT-150 User’s Manual MT-150 User’s Manual 3. Control panel and other functions. 4. Self Test 3-1. Control panel The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings.

  • Page 12: Hexadecimal Dump

    MT-150 User’s Manual MT-150 User’s Manual 5. Hexadecimal Dump 6. Specifications This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. Appendix A : Specifications When you turn on the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

  • Page 13: Auto Cutter Specifications

    MT-150 User’s Manual MT-150 User’s Manual (8) Overall dimension 6-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.065 ~ 0.1 mm (3) Cutter Life 1.0 million cuttings (if the paper thickness is between 65 and100µm) 6-3.

  • Page 14: Environmental Requirements

    MT-150 User’s Manual MT-150 User’s Manual ♣Important! 7. Command List When connecting or disconnecting the power supply from the printer, be sure that the Command Function REMARKS following cautions are observed. Horizontal tab (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A.
  • Page 15 MT-150 User’s Manual Command Function REMARKS ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image...
