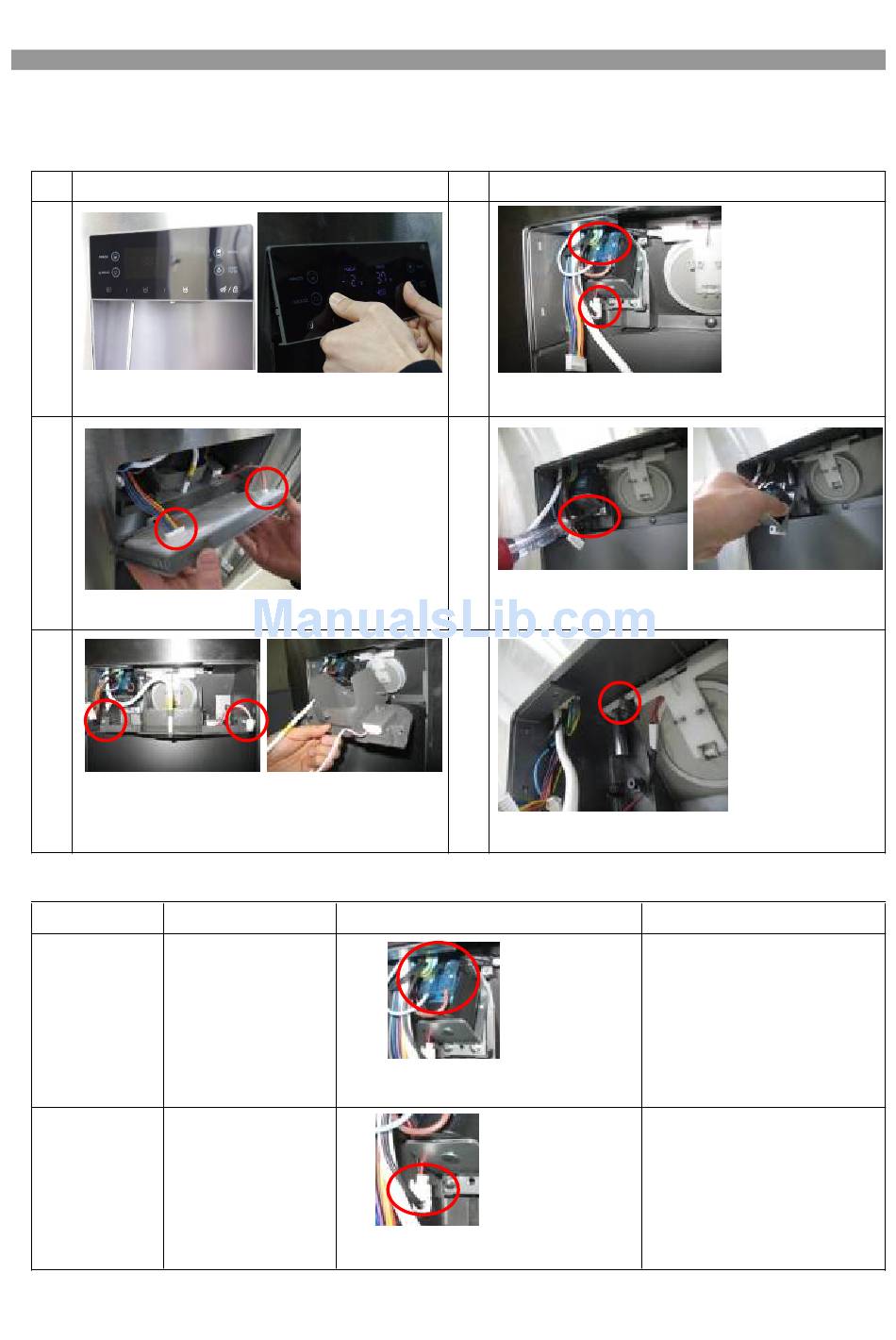

7-3. Dispenser Solenoid Valve

1) Disassembling Procedure
NO DISASSEMBLING PROCEDURE
1
▷Unscrew (1ea) to remove F-PCB Panel.
2
▷ Separate 2 housings from Front PCB.
(Do not hold only wires to pull out.)
3
▷Unscrew (2ea) to remove Box Dispenser Shut.
2) How to Check Sol Valve & Flap Heater
PARTS
▷SPEC. NAME
:SOL2003-02D
Dispenser
Sol Valve
▷VOLTAGE
:110/115V,60Hz
Flap Heater
▷VOLTAGE
Assembly
:DC 12V, 2W
SPEC.
▷Check resistance value of
both terminals with a tester.
▷Check resistance value of
both terminals with a tester.
NO DISASSEMBLING PROCEDURE
4
▷Separate 2 terminals from Sol Valve and
Housings from Cover Ice Flap.
5
▷Unscrew (2ea) to remove Sol Valve.
6
▷Unscrew (1 point) to remove Cover Ice Flap.
HOW TO CHECK
33 33
CRITERION
▷ Good :
49Ω(±10%)
(44.1~53.9Ω)
▷DEFECTIVE : 0
Change Sol Valve.
▷GOOD : 72Ω(±8%)
(66.2 ~ 77.8Ω)
▷DEFECTIVE ;
Change Flap Heater AS.
