Operation Instructions - Task Force TF2000 Instructions Manual

OPERATING INSTRUCTIONS

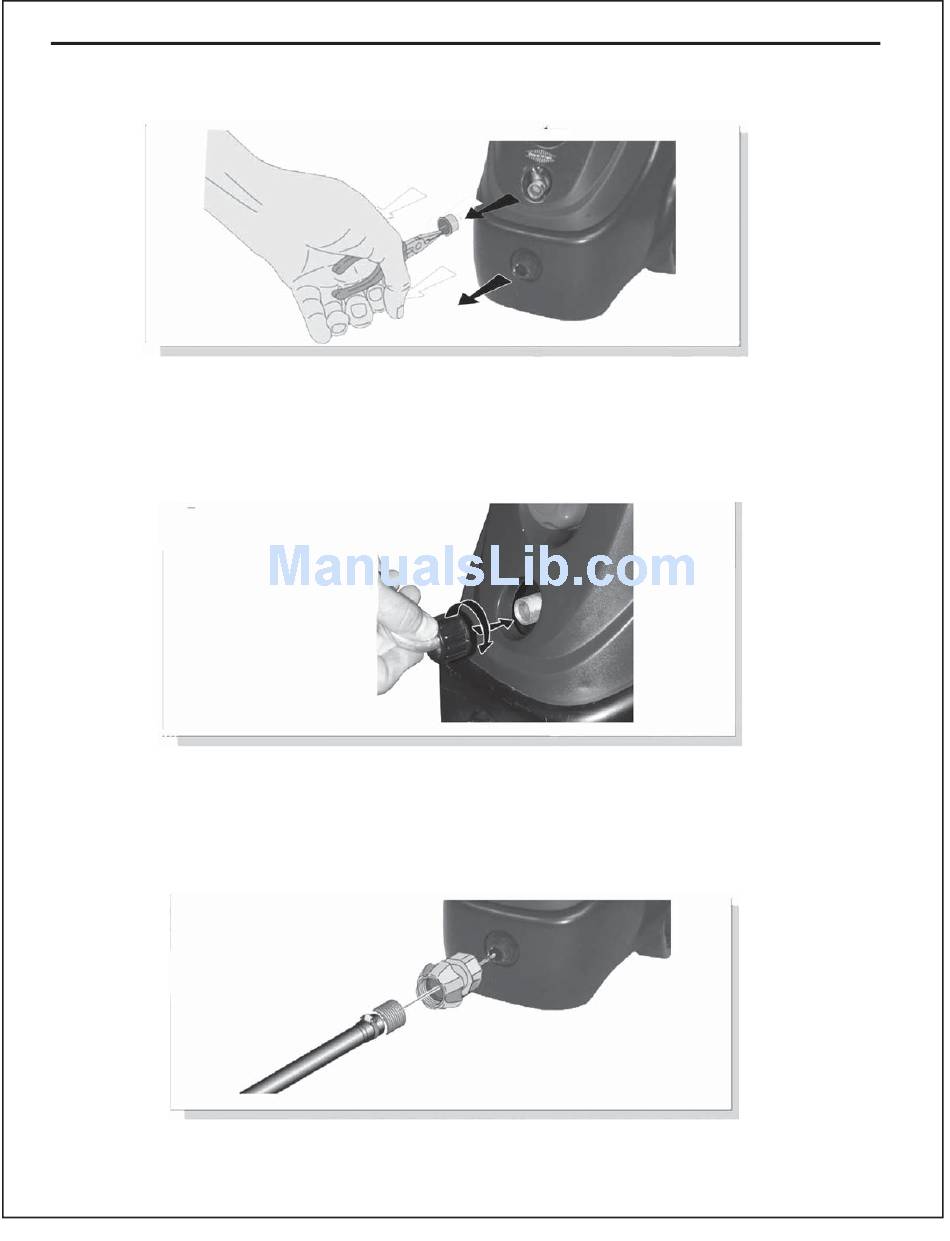

Step 1
Remove the shipping plug(s) from the front of the machine.
Step 2
Connect the high pressure hose to the machine outlet. To connect,
carefully insert the L-shaped connector fitting with the o-ring into the
high pressure outlet and tighten the threaded nut by hand.
Step 3
Connect the garden hose to the machine inlet using the garden hose
connector provided. Before connecting, run water through the garden
hose (not supplied) to flush out any foreign matter. If your water source
is a well, the garden hose length can only be 30 ft. maximum.
Fig. 4
Fig. 5
9
Fig. 2
Fig. 3
Fig. 4
