Possible Controls
K60/KT60
OR
K30
OR
R30K
AMEREC STEAMBATH GENERATORS
(AK and 3K MODELS) 230-400V
Note:To be used with the K30,K60,KT60 or R30K Control.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
POST "WARNING" LABEL OUTSIDE STEAMBATH FOR SAFETY
WARNINGS. REQUIRED POSTING ON DOOR OF STEAM ROOM
OR ADJACENT TO DOOR FOR ALL COMMERCIAL
INSTALLATIONS.
SECTION 1: GENERAL INFORMATION
The AMEREC steam generators come assembled and ready for installation. Check that the size and rating of
the generator is suitable for your application, refer to Steam Room Construction and Generator Sizing Guide
(AMEREC document 4211-38).
IMPORTANT
An exhaust fan installed outside the steam
room is strongly recommended to remove
excess steam from the bathroom or shower
area.
4211-139-A 08-14-2009
AK and 3K Series Installation and Service
Instructions

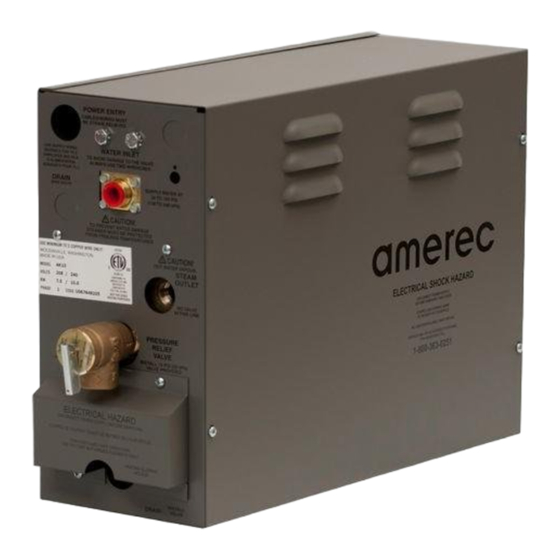

AK GENERATOR
WARNING
Electrical grounding is required on
all AMEREC Steambath Generators.
All electrical supplies should be
disconnected when servicing
generator.
All wiring must be installed by a
licensed electrical contractor in
accordance with local and national
codes.
All plumbing must be installed by a
licensed plumber in accordance with
all applicable local and national
codes.
AK series generators are for indoor
use only.
AK series generators are not for
space heating purposes.
Be certain that steambath enclosures
are properly sealed to avoid water
damage from escaping steam. It is
recommended that 100% silicone
caulk be used to seal all pipes and
fittings. Steam must be prevented
from escaping into the wall cavity.
Never shut off the water to a steam
generator that is in use.
Electric Shock Hazard - High voltage
exists within this equipment. There
are no user serviceable parts in this
equipment.
WARNING
REDUCE THE RISK OF
OVERHEATING AND SCALDING
1. Exit immediately if uncomfortable, dizzy or sleepy. Staying too long in
a heated area is capable of causing overheating.
2. Supervise children at all times.
3. Check with a doctor before use if pregnant, diabetic, in poor health or
under medical care.
4. Breathing heated air in conjunction with consumption of alcohol, drugs
or medication is capable of causing unconsciousness.
Do not contact steam head. Stay at least 12" away
CAUTION!
from hot steam escaping from the steam outlet.
REDUCE THE RISK OF
SLIPPING AND FALL INJURY
Use care when entering or exiting the steam room, floor may be slippery.
NOTE: For additional safety instructions, see owner's manual.
