Summary of Contents for DCS WDI

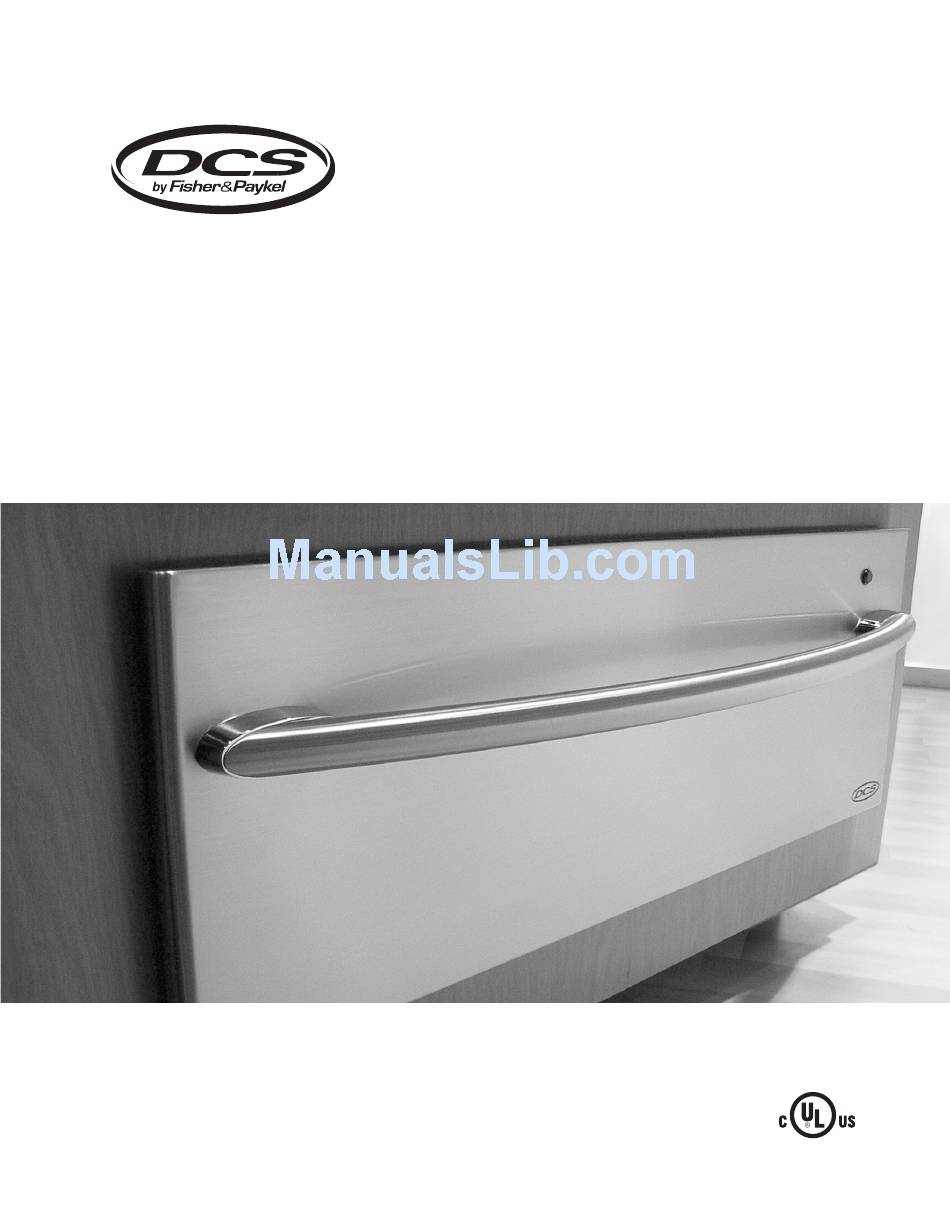

  • Page 1 THE PROFESSIONAL WARMING DRAWER Installation Guide MODELS: WDS-27 WDS-30...
  • Page 3 A MESSAGE TO OUR CUSTOMERS Thank you for selecting this DCS Warming Drawer. Because of its unique features, we have developed this Installation Guide. It contains valuable information on how to properly install your new Warming Drawer for years of safe and enjoyable use.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY PRACTICES & PRECAUTIONS ......................3-4 FEATURES ....................................5 INSTALLATION INSTRUCTIONS ........................6-10 Specifications................................6 Mounting Installation ............................7-8 Warming Drawer Integrated ..........................9 Wall Oven and Microwave and Warming Drawer Installation..............9 WIRING DIAGRAM ................................10 SERVICE ....................................11 WARRANTY ..................................12...
  • Page 5 SAFETY PRACTICES AND PRECAUTIONS READ AND UNDERSTAND THESE PRECAUTIONS Read this Installation Guide thoroughly before installation. This will help to reduce the risk of fire, electric shock, or injury to persons. Remove all packaging materials from your appliance. Install according to instructions. See page 6-9 to insure proper installation and servicing. Be sure to have a qualified service technician install and ground this appliance.
  • Page 6: Safety Practices & Precautions

    SAFETY PRACTICES & PRECAUTIONS As with any cooking or heating appliance, never leave the warming drawer unattended when warming food, this could be a fire hazard. Only certain types of glass, heat proof glass-ceramic, ceramic, earthenware or glazes are suitable for use in this warming drawer. Utensils that are not thermally heat safe may break with sudden temperature changes.
  • Page 7: Features

    Lens Knob Power Indicator Light Model and Serial Tag Location (located on the inside right panel of the drawer cavity behind the right drawer side) Stainless Steel Drawer Fig. 01 * Moist/crisp feature not available on fully integrated model (WDI).
  • Page 8: Installation Instructions

    13-1/4” high by 30” wide by 24” deep for 30” models. For 27” models 13-1/4” high by 27” wide by 24” deep. For WDI Model 15-1/4” high by 26-3/4” wide by 24” deep (see figure 03 and figure 04). Power supply required: 120VAC; 5A min., 15A max. circuit.
  • Page 9: Mounting Installation

    INSTALLATION INSTRUCTIONS MOUNTING INSTALLATION The lower rear corners of the cabinet need to provide proper support to the back of the Warming Drawer and the anti-tip mounting clips. A 120 volt AC outlet should be located no further than 36 inches from the back center of the Warming Drawer.
  • Page 10 INSTALLATION INSTRUCTIONS Center line 21-1/8" to Center line for mounting clips for WDS-30 WDS-27 Fig. 06 Fig. 07...
  • Page 11: Warming Drawer Integrated

    INSTALLATION INSTRUCTIONS WARMING DRAWER INTEGRATED (WDI) Custom Panel Installation 1. Remove drawer as per instructions. (See Use & Care Manual.) 2. Check the dimensions of the front template. (See fig. 08.) 3. Cut the custom panel to required dimensions, knowing that the panel must cover the front template plus 1/8”...
  • Page 12: Wall Oven And Microwave And Warming Drawer Installation

    AND WARMING DRAWER WARMING DRAWER INSTALLATION INSTALLATION microwave double cut-out wall oven cutout single 25-5/16" (WDS-27 & 30) wall oven 26-1/8" (WDI) cutout 11-1/16" (WDS) 12-5/8" (WDI) warming drawer warming drawer cutout 9-7/8" (WDS) cutout** 11-1/4"(WDI) 15-3/4" 18-3/4" **The floor of the opening should be constructed of plywood strong enough to support the weight of the oven.
  • Page 13 1) Is the circuit breaker tripped or the fuse blown? 2) Is there a power outage in the area? For warranty service, please contact your local service provider or DCS Customer Care Representative at (888) 936-7872. Before you call, please have the following information ready: Model Number (located on the inside right panel of the drawer cavity behind the right drawer side.
  • Page 14: Service

    WARRANTY LIMITED WARRANTY When you purchase a new DCS Professional Warming Drawer you automatically receive a One Year Limited Warranty covering parts and labor for the entire product for servicing within the 48 mainland United States, Hawaii, Washington D.C. and Canada. In Alaska the Limited Warranty is the same except that you must pay to ship the Product to the service shop or the service technician’s travel to your...
  • Page 15 Please read your User Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com...
  • Page 16 NOTE...
  • Page 17 CHAUFFE-PLATS PROFESSIONNEL Guide d'installation MODELS: WDS-27 WDS-30...
  • Page 18 À L'INTENTION DE NOS CLIENTS Nous vous remercions d'avoir choisi ce chauffe-plats DCS. Nous avons conçu ce Manuel d'installation et d'entretien pour expliquer les fonctions uniques de cet appareil. Il contient des informations extrêmement utiles sur la façon correcte de faire fonctionner votre nouveau chauffe-plats et d'en faire l'entretien. Vous pourrez ainsi en profiter pendant des années en toute sécurité.
  • Page 19 TABLE DES MATIÈRES MESURES DE SÉCURITÉ ET DE PRÉCAUTION ..................3-4 CARACTERISTIQUES DU CHAUFFE-PLATS ....................5 INSTRUCTIONS DE MONTAGE ..........................6-10 Specifications................................6 Montage et Installation.............................7-8 Chauffe-plats intégré ............................9 Four, micro-ondes et installation de chauffe-plats ..................10 SCHEMA DE CABLAGE ..............................11 SERVICE ....................................12 GARANTIE .....................................13...
  • Page 20: Mesures De Sécurité Et De Précaution

    MESURES DE SÉCURITÉ ET DE PRÉCAUTION VEUILLEZ LIRE ET BIEN ASSIMILER CES CONSIGNES I Veuillez lire attentivement ce manuel d'installation avant d'installer votre nouvel appareil. Ceci vous permettra de réduire les risques d'incendie, de chocs électriques ou de blessures. I Retirez tout le matériel d'emballage de l'appareil. I Procédez à...
  • Page 21 MESURES DE SÉCURITÉ ET DE PRÉCAUTION AVERTISSEMENT : Cet appareil est conçu pour réchauffer les aliments. Pour des raisons de sécurité, n'utilisez jamais le chauffe-plats pour chauffer une pièce. I Comme pour tout appareil de cuisson ou de chauffage, ne laissez jamais le chauffe-plats sans surveillance quand vous réchauffez de la nourriture, car il y a risque d'incendie.
  • Page 22: Caracteristiques Du Chauffe-Plats

    (situé sur le panneau droit intérieur de la cavité du tiroir derrière le côté du tiroir droit) Tiroir en acier inoxydable FIG. 01 * La fonction Humide/Croustillant n'est pas disponible sur le modèle complètement intégré (WDI).
  • Page 23: Instructions De Montage

    WDS-27 & 30 (VUE LATéRALE) 28-3/16 25-1/16 po CORDON D'ALIMENTATION DIMENSIONS DU CHAUFFE-PLATS 23-7/8 po (VUE AVANT) 9-7/8 po WDS=10-1/4 WDI=11-7/8 CORDON D'ALIMENTATION 24 po WDS-27 = 26-7/8 WDS-30 = 29-7/8 WDI = 26-3/4 11-1/4 po 9-7/8 po FIG. 03 FIG. 04...
  • Page 24: Montage Et Installation

    Pour terminer l'installation, vissez la vis dans le trou du milieu de la face avant du chauffe-plats. Voir à la page 7. REMARQUE : Le support inférieur est fait de contre-plaqué ou de bois plein capable de supporter le poids du chauffe-plats. Glissez le tiroir sur les fixations WDS 21-1/2 po antibasculement WDI 21-7/8 po fixations FIG. 05...
  • Page 25 INSTRUCTIONS DE MONTAGE De la ligne médiane 21-1/8 po à la ligne médiane pour les fixations WDS-30 WDS-27 FIG. 06 Fig. 07...
  • Page 26: Chauffe-Plats Intégré

    INSTRUCTIONS DE MONTAGE CHAUFFE-PLATS INTÉGRÉ (WDI) Installation de panneau fait sur mesure 1. Retirez le chauffe-plats conformément aux instructions. (Voir le manuel d'utilisation et d'entretien.) 2. Vérifiez les dimensions du gabarit avant. (Voir fig. 08.) 3. Découpez le panneau fait sur mesure selon les dimensions requises, sachant que le panneau doit recouvrir le gabarit avant et dépasser de 1/8 po sur les quatre côtés afin de soigner l'aspect...
  • Page 27 64,3 cm (25-5/16 po)(WDS-27 & 30) 66,4 cm (26-1/8 po)(WDI) 28,1 cm (11-1/16 po)(WDS) 32,1 cm (12-5/8 po) (WDI) 24,8 cm (9-7/8 po)(WDS) 28,6 cm (11-1/4 po)(WDI) 40,0 cm (15-3/4 po) 47,6 cm (18-3/4 po) ** Le fonds de l'ouverture doit être fait d'un contre-plaqué assez solide pour...
  • Page 28: Schema De Cablage

    SCHÉMA DE CÂBLAGE...
  • Page 29: Service

    2) Y a-t-il une coupure de courant dans le secteur? Pour le service sous garantie, veuillez contacter votre distributeur ou contactez le centre DCS agréé le plus proche au (888) 936-7872. Avant d'appeler, veuillez avoir les informations suivantes à portée de main : I Numéro de modèle (voir page 5)
  • Page 30: Garantie

    à domicile normale. Tout service couvert par cette garantie limitée sera assuré par Fisher & Paykel Appliances Inc. ou son agent de service DCS agréé durant les heures d'ouverture normales.
  • Page 31 Veuillez consulter le guide de l'utilisateur. Si vous avez des questions concernant l'utilisation du produit, que vous cherchez le nom de l'agent de service DCS agréé local ou que pensez que le produit est défectueux et désirez le faire réparer dans le cadre de cette garantie limitée, veuillez contacter votre distributeur ou nous appeler au numéro suivant :...
  • Page 32 Cette garantie limitée vous donne des droits juridiques spécifiques et vous pouvez bénéficier d'autres droits qui varient d'une juridiction à l'autre. Fisher & Paykel Appliances inc. est un fabricant de pointe d'appareils de cuisson et d'appareils spécialisés, sous les marques Fisher & Paykel et DCS.
  • Page 33 REMARQUE...
  • Page 34 REMARQUE...
