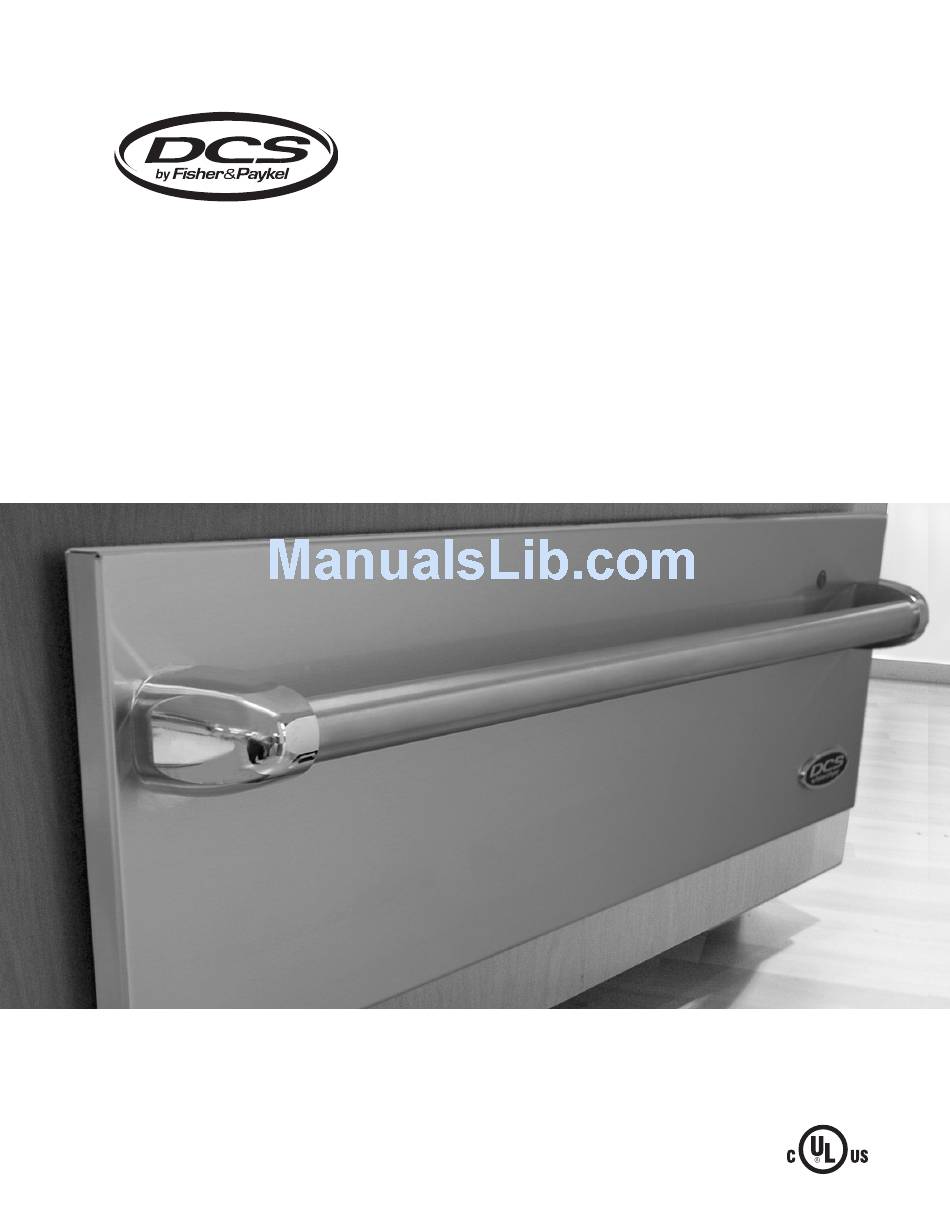

- Page 1 THE PROFESSIONAL WARMING DRAWER Installation Guide MODELS: WDT-30 WDTI...
- Page 2 A MESSAGE TO OUR CUSTOMERS Thank you for selecting this DCS Warming Drawer. Because of its unique features, we have developed this Installation Guide. It contains valuable information on how to properly install your new Warming Drawer for years of safe and enjoyable use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY PRACTICES & PRECAUTIONS FEATURES INSTALLATION INSTRUCTIONS Specifications Mounting Installation Custom Panel Installation (WDTI) Cabinet Installation SERVICE WARRANTY 12-13... - Page 4 SAFETY PRACTICES AND PRECAUTIONS READ AND UNDERSTAND THESE PRECAUTIONS Read this Installation Guide thoroughly before installation. This will help to reduce the risk of fire, electric shock, or injury to persons. Remove all packaging materials from your appliance. Install according to instructions. See page 6-10 to insure proper installation and servicing. Be sure to have a qualified service technician install and ground this appliance.
-
Page 5: Safety Practices & Precautions
SAFETY PRACTICES & PRECAUTIONS warming drawer. Utensils that are not thermally heat safe may break with sudden temperature changes. Never heat unopened containers, a build up of pressure may cause the container to burst. Grease is flammable, avoid letting grease deposits collect in the warming drawer, clean up spillage. 120 Volts AC, 5 amp min., 15 amp maximum circuit requirement. -
Page 6: Features
FEATURES Vent Holes Thermostat Control Knob Moist/ Crisp Knob Removable Stainless Steel Tray Power Indicator Power Lens Indicator Light Model and Serial tag location on inside panel Stainless Steel Drawer * Not available on fully integrated model (WDTI). Fig. 01... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS SPECIFICATIONS The cabinet depth from the outer edge of the face frame to the inside back of the cabinet or wall should be at least 24” (see Fig. 02). The Warming Drawer should be installed into a base cabinet with minimum outside dimensions of 13-1/4” high by 30”... -
Page 8: Mounting Installation
INSTALLATION INSTRUCTIONS MOUNTING INSTALLATION The lower rear corners of the cabinet need to provide proper support to the back of the Warming Drawer and the anti-tip mounting clips. A 120 volt AC outlet should be located no further than 36 inches from the back center of the Warming Drawer. - Page 9 INSTALLATION INSTRUCTIONS Slot Slot Center line 20" to Center line for mounting clips for WDT-30 WDTI Power cord Fig. 07 1-1/2” mounting screws Fig. 08...
- Page 10 INSTALLATION INSTRUCTIONS CUSTOM PANEL INSTALLATION OF THE WARMING DRAWER INTEGRATED (WDTI) STEP 1 Remove drawer as per instructions (see Use & Care Manual). STEP 2 Check the dimensions of the front face (see fig. 09). STEP 3 Cut the custom panel to the desired dimensions, knowing that the panel must cover the paper front template plus 1/8”...
-
Page 11: Cabinet Installation
INSTALLATION INSTRUCTIONS CABINET INSTALLATION DOUBLE Wall Oven and SINGLE Wall Oven and Microwave and Warming Drawer Installation Warming Drawer Installation microwave cut-out double wall oven single cutout wall oven cutout + – + – 10 1/16" 10 1/16" 11-3/16" 11-3/16" warming drawer warming drawer cutout**... - Page 12 1. Is the circuit breaker tripped or the fuse blown? 2. Is there a power outage in the area? For warranty service, please contact your local service provider or DCS Customer Care Representative at (888) 936-7872. Before you call, please have the following information ready:...
-
Page 13: Service
WARRANTY LIMITED WARRANTY When you purchase a new DCS Professional Warming Drawer you automatically receive a One Year Limited Warranty covering parts and labor for the entire product for servicing within the 48 mainland United States, Hawaii, Washington D.C. and Canada. In Alaska the Limited Warranty is the same except that you must pay to ship the Product to the service shop or the service technician’s travel to your home. -
Page 14: Warranty
Please read your Use and Care Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com... - Page 15 Fisher & Paykel Appliances, Inc. 5900 Skylab Road, Huntington Beach, CA 92647 Customer Care: 888.936.7872 Fax: 714.372.7003 www.dcsappliances.com As product improvement is an ongoing process, we reserve the right to change specifications or design without notice. Nous améliorons constamment ses produits et se réserve le droit de modifier les spécifications ou la conception de ses produits sans aucun préavis.
