INSTALLATION FOR VIDEO TYPE

Reversing
light
Camera
INSTALL ON THE BACK BUMPER
CISBO RADER SYSTEM USER'S MANUAL
4 SENSORS
2 SENSORS
INSTALL ON THE BACK BUMPER
BUZZER
TFT Screen (optional)

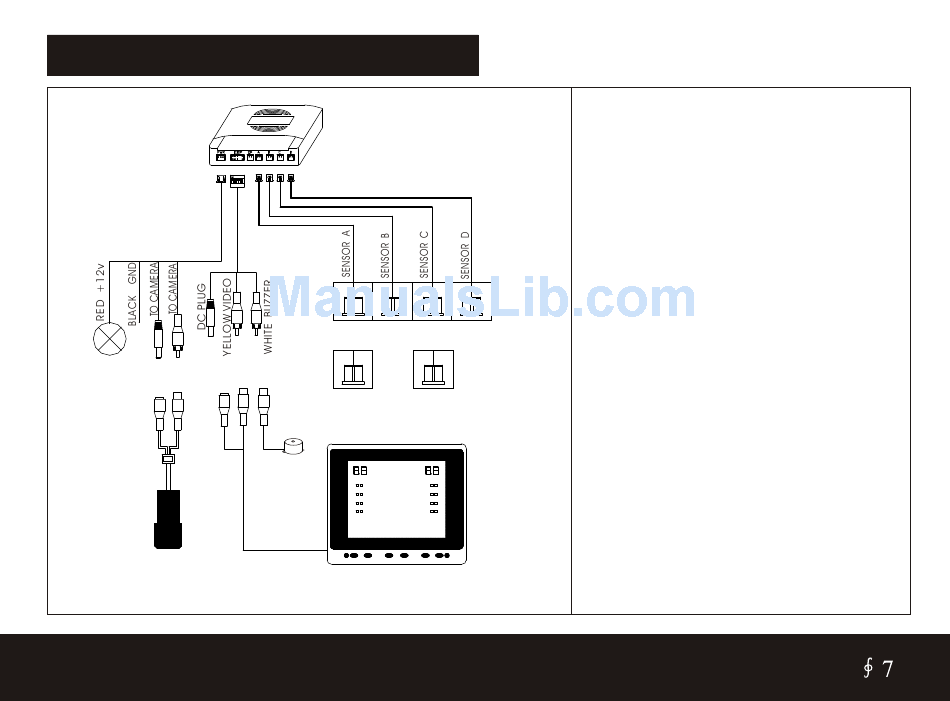

1. This diagram only for the
parking sensor with camera.
2. When the car on reversing ,
the back sensors and
camera are working.
3.The imagine will display on
the external TFT screen,
while the distance will
display as well.
4. The display is used for car
DVD/VCD.
5.Power line guide:
Reversing light: Power on
while the car on reversing
time.
Stop light: power on while
brake.
