Summary of Contents for Cisbo Parking sensor
- Page 1 CISBO Parking sensor CISBO RADER SYSTEM USER’S MANUAL...
-
Page 2: Table Of Contents
Index TO USER --------------------------------------------------------------1 PART AND TECH DATA---------------------------------------------2 DISPLAY AND ALARM SOUND-----------------------------------3 INSTALLATION FOR 2&4 SENSORS-----------------------------4 INSTALLATION FOR 6&8 SENSORS-----------------------------5 INSTALLATION FOR WIRELESS TYPE--------------------------6 INSTALLATION FOR VIDEO TYPE-------------------------------7 INSTALLATION FOR REARVIEW MIRROR TYPE-------------8 POSITION FOR EACH PART------------------------- --------------9 DISPLAY & MAIN BOX INSTALLATION DIAGRAM----------10 SENSORS INSTALLATION DIAGRAM--------------------------11 NOTICE FOR USER-------------------------------------------------12 FUNCTIONS FOR LED DISPLAY SERIES-----------------------13... -
Page 3: To User
TO USER Thank you for choosing and using our Parking Sensor products. We are going to provide you with the best products and the best services. In order to insure the best performance and avoid any false alarm or function failure, we strongly suggest that you read this user's manual carefully before installation and use. -
Page 4: Part And Tech Data
TECH DATA Rated voltage : DC12V (24v available) Power : 3.6W Working temperature: -20 C---70 Detecting distance: 0.3-2.0M Detecting angle: H>60 ,V>60 6. Radio frequency: 315MHz/433MHz 7. Camera angle: 92 or 120 CISBO RADER SYSTEM USER’S MANUAL... -
Page 5: Display And Alarm Sound
TFT LCD MONITOR LCD DISPLAY LCD DISPLAY ALARM SOUND Display Stage Awareness Alarm Distance safe mode 2.0-1.6 200-160cm safe mode Bi----Bi----Bi 1.5-1.0 150-100cm alarm mode Bi--Bi--Bi 0.9-0.5 90-50cm alarm mode 0.4-0.3 Bi-Bi-Bi 40-30cm danger mode Bi------------ 0-20cm CISBO RADER SYSTEM USER’S MANUAL... -
Page 6: Installation For 2&4 Sensors
Matched the illuminant sensor.. (Only for lliuminant sensor) 5.Power line guide: Reversing light: Power on while the car on reversing DISPLAY 2 SENSORS time. INSTALL ON THE BACK BUMPER Stop light: power on while brake. CISBO RADER SYSTEM USER’S MANUAL... -
Page 7: Installation For 6&8 Sensors
Buzzer, rear view mirror, detail see Page3. 5.Power line guide: Reversing light: Power on while the car on reversing Reversing Stop light light time. 4 SENSORS Stop light: power on while INSTALL ON THE BACK BUMPER brake. DISPLAY CISBO RADER SYSTEM USER’S MANUAL... -
Page 8: Installation For Wireless Type
Page 3. (Only for lliuminant sensor) 5.Power line guide: 2 SENSORS Reversing light: Power on INSTALL ON THE BACK BUMPER while the car on reversing time. Stop light: power on while brake. CISBO RADER SYSTEM USER’S MANUAL... -
Page 9: Installation For Video Type
INSTALLATION FOR VIDEO TYPE 1. This diagram only for the parking sensor with camera. 2. When the car on reversing , the back sensors and camera are working. 3.The imagine will display on the external TFT screen, while the distance will display as well. -
Page 10: Installation For Rearview Mirror Type
INSTALLATION FOR REARVIEW MIRROR TYPE 1. This diagram only for 4 in 1 or 6 in 1 parking sensor MAIN BOX 2. The back sensors begin to work while the car on reversing time. 3.the sensors will be on flashing while the car on... -
Page 11: Position For Each Part
3. Buzzer 6. Hands free rear view mirror: Clip on the original rearview mirror. 2. Camera 7. Display: Stand on the front board. 8.4 front sensor: front bumper. 1. 4 back sensors CISBO RADER SYSTEM USER’S MANUAL... -
Page 12: Display & Main Box Installation Diagram
Tear the 3M paster of display Clean the installation position MAIN BOX INSTALLATION DIAGRAM Lay the wires snugy to avoid Locate the main box in the ugly outlooking rear boot at a place safe away from rain,heat or humidity CISBO RADER SYSTEM USER’S MANUAL... -
Page 13: Sensors Installation Diagram
SENSORS INSTALLATION DIAGRAM Bumper Sensor Bumper Driller Side vision 4 sonsors Stick on Insert in CISBO RADER SYSTEM USER’S MANUAL... -
Page 14: Notice For User
Trouble Resolvent Trouble from 1. Connected the red line to +12V 1.Power line connected wrong Parking sensor doesn’t work 2.Check each jack put the right socket 2.Jack connected wrong Power light on the light state, Sensor jack connected wrong Re-connect sensor jack it still doesn’t work... -
Page 15: Functions For Led Display Series
1.Indicate left-- When the back left sensor detect the obstacle, it will glitter. 2.Indicate right- When the back right sensor detect the obstacle, it will glitter. 3. Distance-Display the latest the distance for all sensors. 3. Distance 2. Indicate left 1. Indicate right CISBO RADER SYSTEM USER’S MANUAL... -
Page 16: Functions For Lcd Display Series
7. Simulate bar- When the obstacle is closer, the bar will more and more. 1. Indicate back-right 6.Bracket 8.Voice switch- Turn on/off the voice. 9. Distance-Display the latest the distance for all sensors. 10. Background- Blue background. CISBO RADER SYSTEM USER’S MANUAL... -

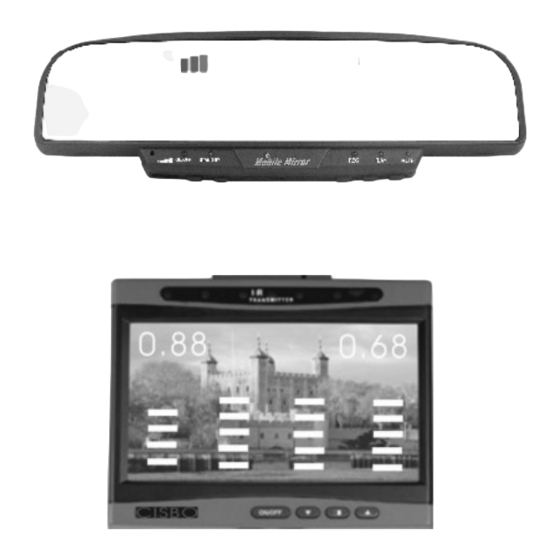

Page 17: Functions For Rearview Mirror Series
1. Mic light. 2. Volume control 7.Play 6.Record 3.ON/OFF 13.Distance- Display the latest the distance for all sensors. 5.Earphone jack 4.Stand by 14.Indicate left- When the back left sensor detect the obstacle, it will light. CISBO RADER SYSTEM USER’S MANUAL... -
Page 18: Functions For Video Display Series
6.simulate Bar -Indicate the back-right sensor working state, When the obstacle is closer, the bar will more and more. 7.Right distance- display the obstacle distance for back right 2 sensors 3.Simulate Bar 6.Simulate Bar 4.Simulate Bar 5.Simulate Bar CISBO RADER SYSTEM USER’S MANUAL... -
Page 19: Guarantee Form
Model Number Date of purchase: Customer’s name Telephone Car registration Number Note: 1.Guarantee time:12months. 2.The guarantee will be effedtive with the stamp/sugnature of the dealer. 3.Please keep the guarantee form well to ensure 12 months guarantee. CISBO RADER SYSTEM USER’S MANUAL...
