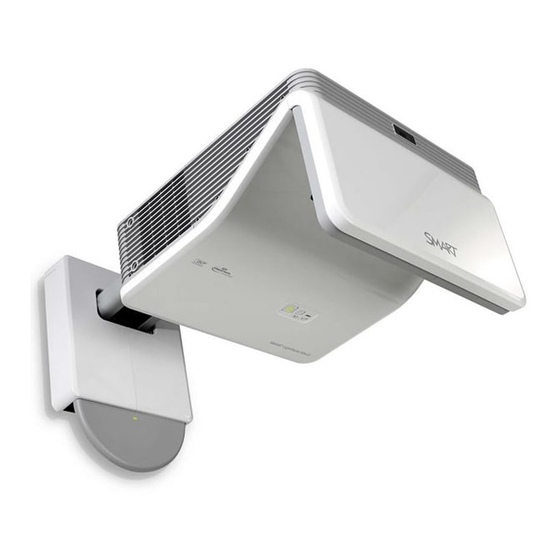

LightRaise™
interactive projectors
User's guide
For models SLR60wi, SLR60wi2 and SLR60wi2-SMP
Scan the following QR code to read this guide on your smart phone or
other mobile device or go to:
onlinehelp.smarttech.com/english/mobile/projectors/60wi/index.htm
