Unifi™ 45 Projector Image Adjustment for SMART Board™
500 and 600 Series Interactive Whiteboard Systems
Applies to: SMART Board™ 560, 580, 660 and 680 interactive whiteboards with Unifi™ 45 projectors

Issue

After you install the Unifi 45 projector with a SMART Board 500 or 600 series interactive whiteboard, you must
adjust the image alignment and focus. This document expands on the information in the
Interactive Whiteboard System

Solution

In addition to adjusting the Unifi 45 projector's focus, you can also adjust the projector boom and the mirror for
optimum image alignment.
NOTE: Before you adjust the image alignment, ensure that the interactive whiteboard's pen tray isn't secured to
the wall or a floor stand so that you can move the interactive whiteboard left or right to centre the image.
Preparing the Unifi 45 Projector Boom Height and Mirror for Alignment
To set the projector boom's height
Before you adjust the projector's alignment and focus, set the projector boom to the optimal height.

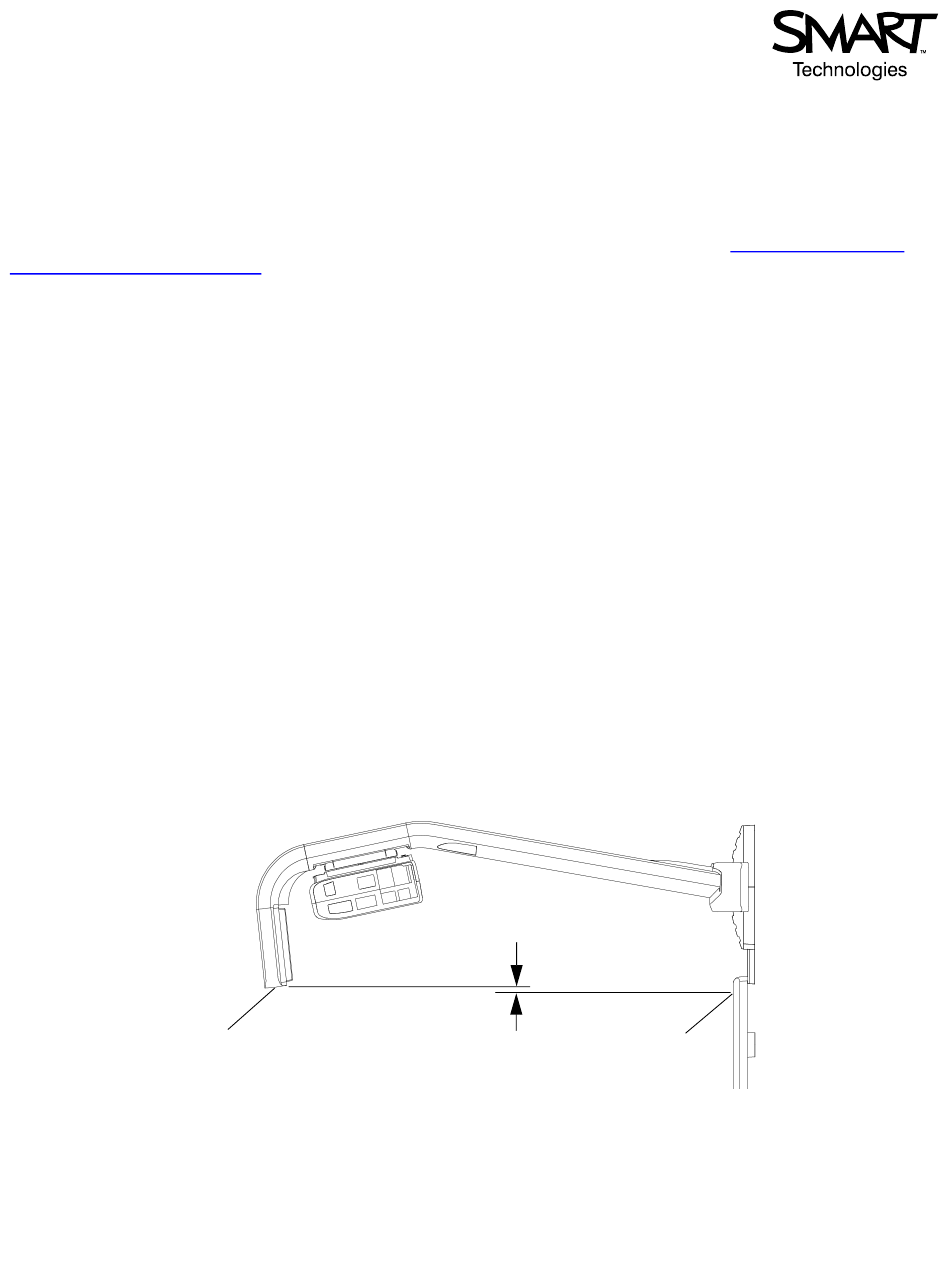

1. If the floor below the projector boom is level, measure the distance between the lowest point of the projector
boom and the floor.
2. Measure the distance between the bottom edge of the interactive whiteboard's top frame and the floor.
For model 560 and 660 interactive whiteboards, the lowest point of the boom should be 2.25" (57 mm) higher
than the bottom edge of the top frame.
For model 580 and 680 interactive whiteboards, the lowest point of the boom should be 0.55" (14 mm) higher.
Lowest Point of
Projector Boom
installation guide provided with your Unifi 45 projector.
Measure this Bottom Edge
distance. of Top Frame
