Strand Lighting Light Palette Classic User Manual page 30

Palette OS v10
disconcerting for a designer who is watching the stage. None of those behaviours were asked for,

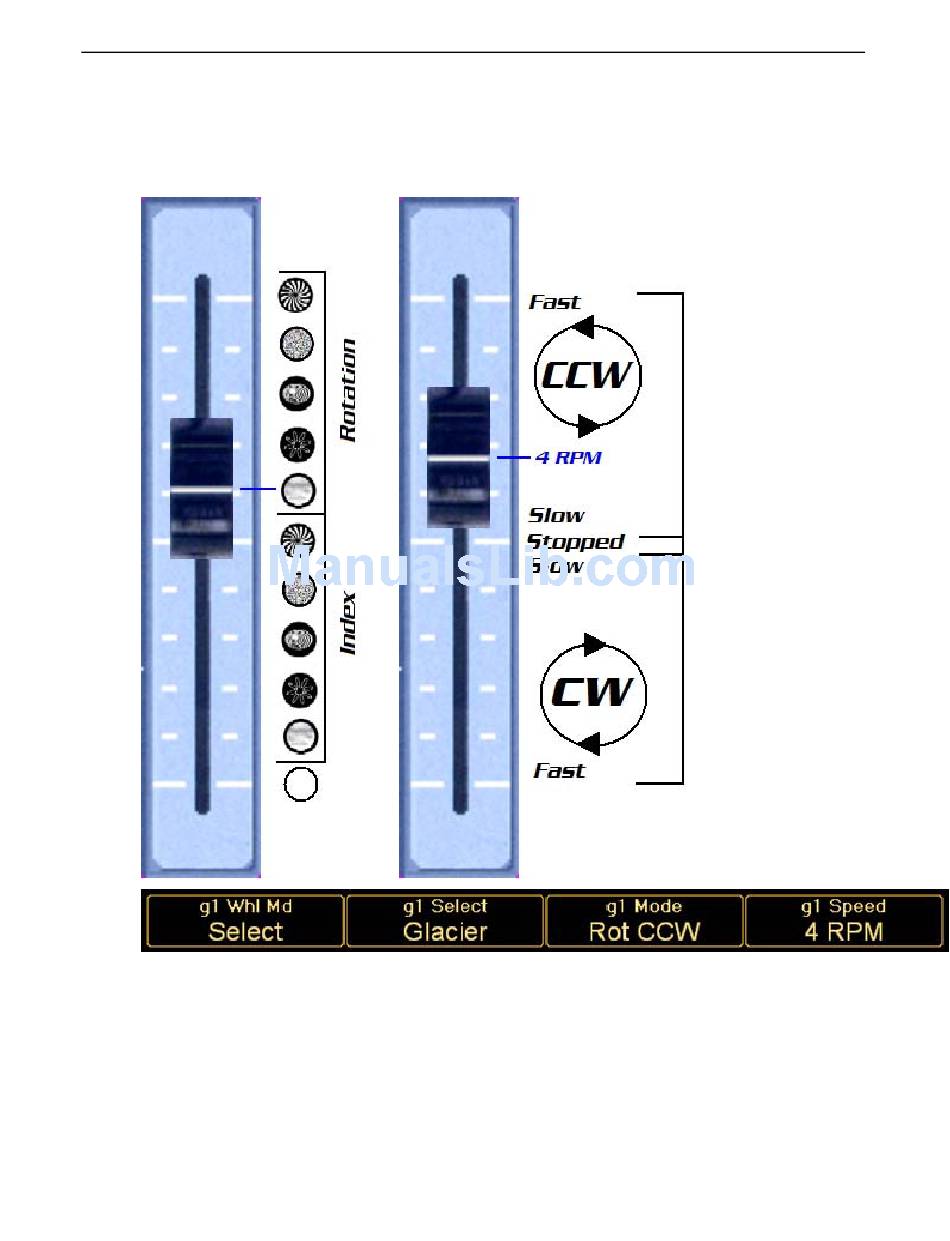

but were necessary to achieve the desired effect. With UAC, you just nudge the second encoder one
tick to change the value from CW to CCW. The fourth encoder, which controls the speed, is not
changed. The DMX values would jump from the value needed for clockwise rotation at 4 RPM directly
to the counterclockwise 4 RPM value (whatever that is).
Attribute Substitutions
Copying and swapping attributes among fixtures that share scalar properties like Position
and Zoom is only the tip of the iceberg when using UAC. The real power of UAC can be seen
when you start using similar, but not identical attributes and how UAC can work with them.
Color is a great example. There are three primary automated color systems in use today;
