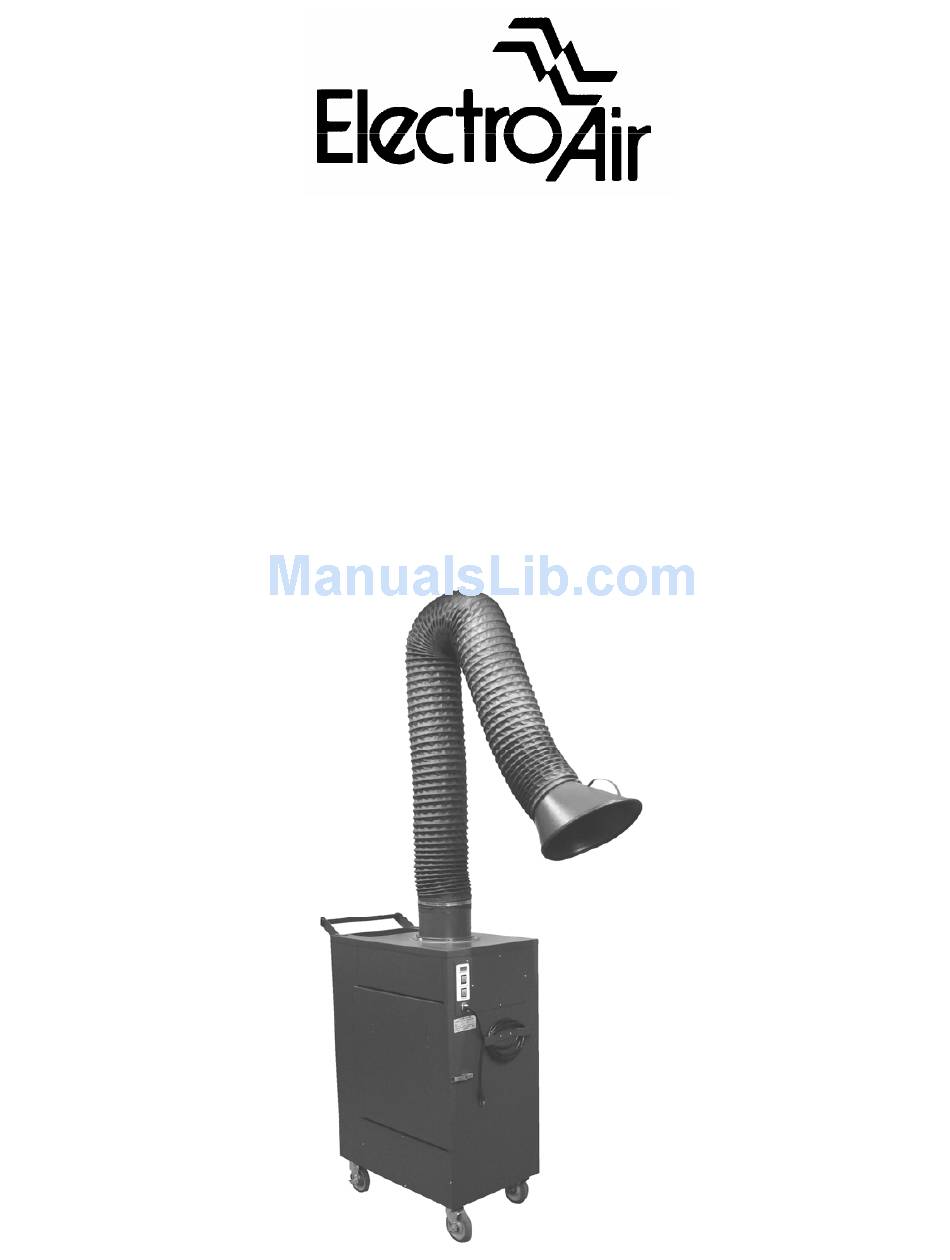

- Page 1 OPERATION & MAINTENANCE MANUAL MODEL MPRS1000 SOURCER MOBILE PARTICULATE REMOVAL SYSTEM ELECTRONIC AIR CLEANER IMPORTANT: PLEASE READ MANUAL BEFORE OPERATING UNIT...
- Page 2 HOW IT WORKS for filtration of agglomerated dust, and to maintain back pressure. The MPRS1000 Sourcer operates on the principle of “Electrostatic Precipitation”. Airborne pollutants are drawn in though the direct capture arm and first pass COLLECTING CELL through to the prefilter, where large particles are caught.
-
Page 3: Washing Instructions
Every environment will be different. Inspect the unit frequently until you determine the right washing schedule for your particular application. If your unit is equipped with an activated carbon filter it will need to be refilled, depending on the environment, every 3 - 6 months. Do not wash the carbon filter as this will render it useless. -
Page 4: Cleaning And Service
will collect in the bottom of the tub. Never allow vacuum. Dry compressed air can be used to remove the dust in the power box which houses the cell or ionizer to sit longer than 15 minutes in the DAX or they will discolour. The the high voltage power supply. - Page 5 between the frame of air cleaner and bolt head on Removing Power Box From Air Cleaner the porcelain insulators. Check both the cell and Before removing the power box from the air ionizer for a spark. The system and high voltage cleaner unplug the unit.
-
Page 6: Exploded View And Parts List
Part # Description Part # Description I3-0630 Motor Access Panel IS-052D Industrial Power Board 2, 10 IS-0855 Prefilter/After Filter (20 x 16 x 1") (50.8 x 40.6 x 2.5 cm) C5-0113 Performance Indicator (Red, Neon) IS-0444 Cell Handle 22, 23 R1-0205 On/Off Switch, Orange IS-0406 Porcelain Cell Insulator C5-0202 Safety Interlock Switch (White, Push-Button Type) - Page 7 DESCRIPTION QUANTITY SECTION Swivel Base Assembly Base Support Intake Hood Support Intake Hood Vinyl Edging Type 100 Hose Hose Clamps Base Gasket 3/8-16 x 1 in. Bolt & Split Washer Tension Springs 6-1/2 in. Rod 3/8 in. 1/4-20 x 1 in. Bolt 1/4-20 Nut Spacer (Nylon) 1/4 in.
-
Page 8: Limited One-Year Warranty
LIMITED ONE YEAR WARRANTY Your Electronic Air Cleaner is guaranteed for one (1) year from the date of original purchase, against electrical and mechanical defects in material and workmanship, under normal use and maintenance, which will be repaired or replaced without charge, upon inspection by an authorized service center. The warranty does not include the prefilter, after filter, carbon filter or ionizing wires.
