OWNER'S MANUAL

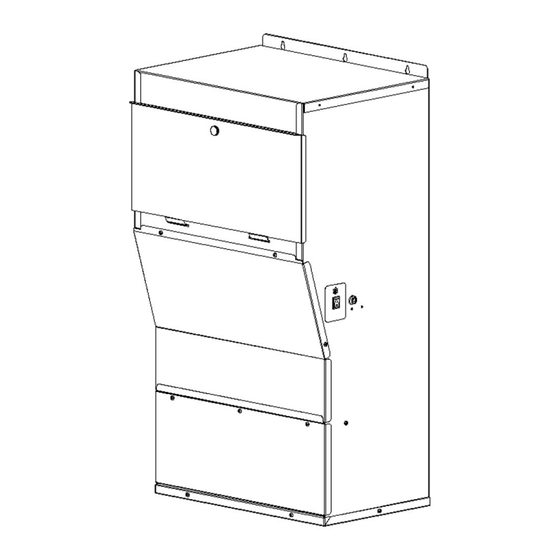

MODELS EADM900UV-VO-A & EADM900UV-VO-VS
WHOLE-HOUSE DUCT MOUNT HEPA AIR CLEANER WITH
ULTRAVIOLET LAMP & PHOTO CATALYTIC FILTER
IMPORTANT: PLEASE READ MANUAL BEFORE OPERATING UNIT
READ AND SAVE THESE INSTRUCTIONS
Features
Long-life, 99.97% HEPA (High Efficiency Particulate Air) Media Filter
removes particles 0.3 micron and larger
Carbon Prefilter removes lint and large particles, to extend life of HEPA Filter
Two High Output Ultraviolet Germicidal Lamps
CinQuartz™ Photo Catalytic Oxidation Filter removes unpleasant odors
and Volatile Organic Compounds
Carbon/ Potassium Permanganate Final Filter removes non-organic gases
Kills or inhibits bacteria, viruses, mold, fungi and microbial growth
Easy-to-change Filters and Lamps
Powerful motor delivers 250 CFM (FSDM900UV-VO-A) or up to 250 CFM (FSDM900UV-VO-VS,
Variable Speed) of clean, sterilized air
Heavy gauge galvanized steel cabinet and external powder-coat paint finish provides rigid
installation and durability
Plug-in Power Cord provides easy electrical connection
Versatile installation can be duct mounted, collar mounted or used as stand alone unit.
Stands with or without wheels optional
Advertisement
Table of Contents
Related Manuals for Electro-Air EADM900UV-VO-A
Summary of Contents for Electro-Air EADM900UV-VO-A
- Page 1 OWNER’S MANUAL MODELS EADM900UV-VO-A & EADM900UV-VO-VS WHOLE-HOUSE DUCT MOUNT HEPA AIR CLEANER WITH ULTRAVIOLET LAMP & PHOTO CATALYTIC FILTER IMPORTANT: PLEASE READ MANUAL BEFORE OPERATING UNIT READ AND SAVE THESE INSTRUCTIONS Features Long-life, 99.97% HEPA (High Efficiency Particulate Air) Media Filter removes particles 0.3 micron and larger...
-
Page 2: Safety Considerations
light and non-organic gases. SAFETY CONSIDERATIONS Read and follow instructions carefully. Follow all BENEFITS local electrical codes during installation. All wiring Helps provide relief from allergies, asthma, and must conform to local and national electrical codes. other respiratory illness. Improper wiring or installation may damage the Air Kills or inhibits bacteria, viruses, mold, fungi Cleaner. -
Page 3: General Installation Steps
NOTICE 2. If the unit is to be mounted on the return air plenum, it must be installed after the last This unit has only been painted on the exterior. There return branch connection on the plenum. If may be some over spray inside the galvanized steel outside air is introduced into the return air cabinet and this is normal. - Page 4 GENERAL INSTALLATION STEPS 4. The intake collar on the return duct must be installed after the last return branch connection (Collar Mount) (see Fig. 2) on the plenum. If outside air is introduced into (Inlet collars are available as a kit from your the return air duct, either through a HRV (Heat distributor) Recovery Ventilator) or direct, it should be...
-
Page 5: Maintenance
WARNING Never use the Air Cleaner without all of the filters in place and all cover panels and doors closed. Make sure all the screws are in place. OPERATING INSTRUCTIONS The Air Cleaner is designed to run continuously to provide clean, filtered air 24 hours a day. The fan on the heating/cooling system, to which the Air Cleaner is dependent on for circulated air, should be on ‘continuous’... - Page 6 Replacing the HEPA Filter and Prefilter CAUTION When replacing the filters wear disposable gloves and a dust mask. 1. To access the filters, turn the Air Cleaner OFF at the switch and open the top front door. 2. Carefully remove the filters to avoid spilling of collected contaminants.
-
Page 7: Technical Data
Unit Weight 47 lbs 21.3 kg Input Voltage 120 V 60 Hz Power Consumption 200 Watts Air Flow: EADM900UV-VO-A 250 CFM 424.8 m³/hr EADM900UV-VO-VS (Variable Speed) up to 250 CFM up to 424.8 m³/hr Cabinet 22 gauge Power Cord 9.0 ft 2.74 m... - Page 8 WHOLE-HOUSE HEPA, ULTRAVIOLET LIGHT & PHOTO CATALYTIC AIR CLEANER LIMITED FIVE (5) YEAR WARRANTY FIVE YEAR WARRANTY - This ELECTRO-AIR product is warranted to be free from electrical and mechanical defects in material and workmanship, under normal use and maintenance, within its listed capacity, for a period of five (5) years from the date of purchase, excluding the fan/motor assembly, lamps or lamp ballast which are warranted for one (1) year from the date of purchase.
