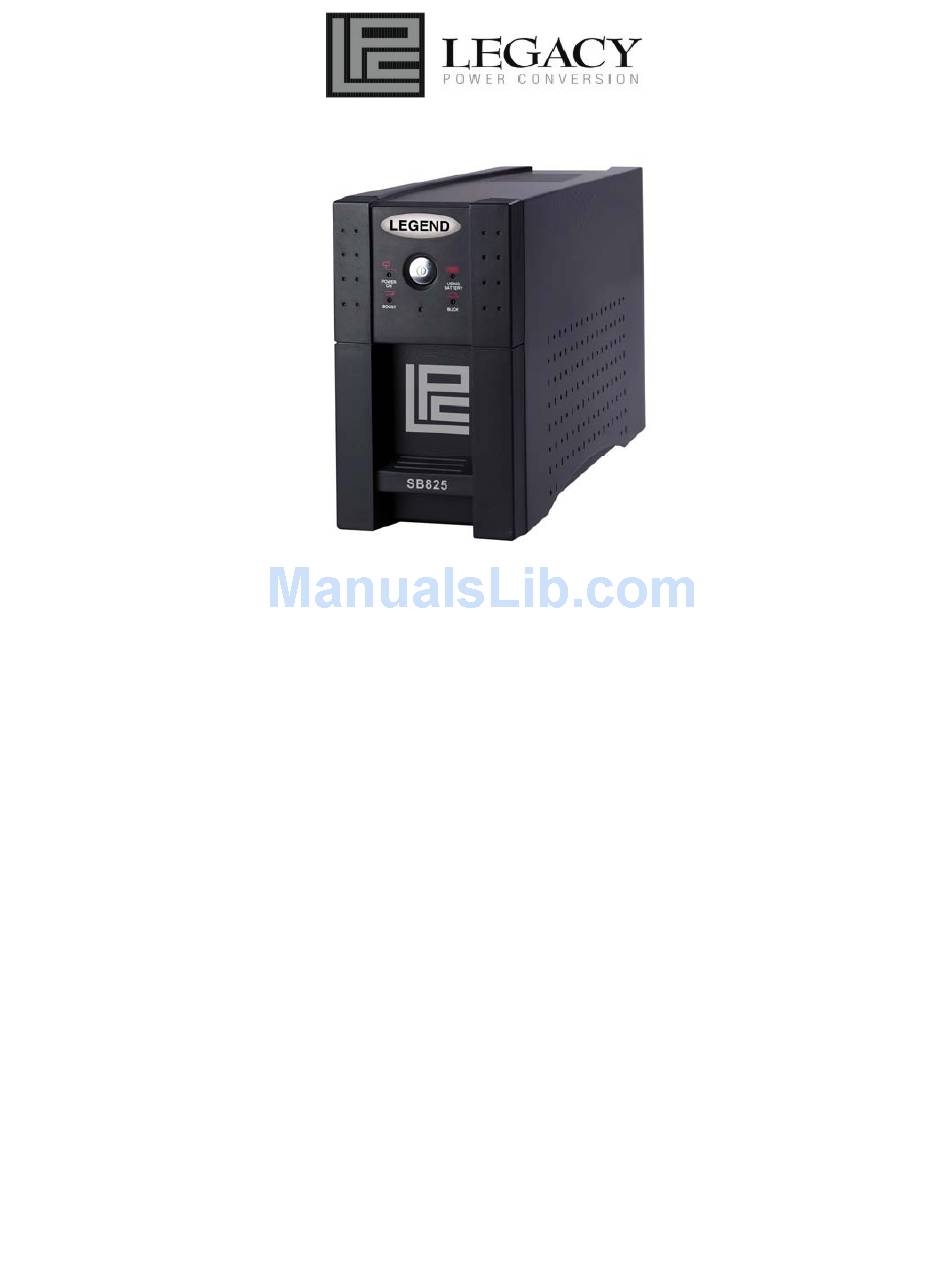

- Page 1 User’s Manual Legend SB825 UPS K01-1120009-00...
-
Page 2: Table Of Contents
DEFINITION FOR ILLUMINATED LED INDICATORS……………………………….…..…8 LIMITED WARRANTY …………………………………………………………………….……8 Thank you for purchasing a Legacy Power Conversion Product. To enjoy all the features and benefits of this Uninterruptible Power System (UPS), please read and follow all installation and operation instructions completely. -
Page 3: Important Safety Warnings
Legend SB825 Uninterruptible Power System IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS) This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate. -
Page 4: Installing Your Ups System
INSTALLING YOUR UPS SYSTEM UNPACKING Inspect the UPS upon receipt. The box should contain the following: (1) UPS Unit; (1) SeeUPS2020 Software Disk; (1) Serial Interface Cable (DB-9); (1) Telephone Cable; (1) User’s Manual; (1) Warranty Registration Card HARDWARE INSTALLATION GUIDE 1. - Page 5 Legend SB825 Uninterruptible Power System Power Button ◆ ◆ ◆ ◆ Press the power button to turn the UPS ON or OFF ◆ ◆ ◆ ◆ Power On Indicator This LED is illuminated when the utility condition is normal and the UPS outlets are providing “clean power”, free of surges and spikes.
-
Page 6: Battery Replacement And Storage
BATTERY REPLACEMENT AND STORAGE Contact your dealer or call the number in this manual for information on battery replacement. The order numbers for the battery are as follows: BAT-SB825 for SB825 CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. - Page 7 Legend SB825 Uninterruptible Power System 5. Remove the battery from the compartment. 6. Disconnect the battery wires from the battery. 7. Install the replacement battery by connecting the red wire to the positive (+) terminal of the battery and connecting the black wire to the negative (-) terminal of the battery.
-
Page 8: Troubleshooting
Recharge the battery by leaving the not perform UPS plugged in. expected runtime. Battery’s capacity diminishes over Contact Legacy Power Conversion time and use. about replacement batteries at service@lpc-ups.com or 800-859-5711. The UPS will not The on/off switch is designed to Turn the UPS off. -
Page 9: Technical Specifications
Legend SB825 Uninterruptible Power System TECHNICAL SPECIFICATIONS Model SB825 Capacity (VA) 825VA Capacity (Watts) 450W Input Input Voltage Range 100Vac – 140Vac Frequency Range 57 – 63 Hz Output On Battery Output Voltage Simulated Sine Wave at 120Vac +/- 5%... -
Page 10: Definitions For Illuminated Led Indicators
DEFINITIONS FOR ILLUMINATED LED INDICATORS Condition Power Using Circuit Wiring Battery Fault Breaker Alarm Normal Utility Failure- The UPS is providing battery power On/Off Beeps to the Battery-Power Supplied outlets. Utility Failure- The UPS is providing battery power. Rapid On/Off The rapid beeps indicate the battery will run out of Beeps charge within a few minutes. -
Page 11: Limited Warranty
Limited Warranty.) LIMITED WARRANTY Legacy warrants to you, the Initial Purchaser, that the Product will be free from defects in material and workmanship for three years from the date of original purchase, subject to the terms of this Limited Warranty. -
Page 12: N9246 Hwy 80 South, Suite
You MUST prepay all shipping costs and you are responsible for packaging and shipment. Legacy will inspect and examine the Product within ten (10) days of receipt. If the Product is not as warranted, Legacy will repair or replace the Product and return it to you at Legacy's... - Page 13 HIGH RISK ACTIVITIES. Legacy does not sell the Products for use in high-risk activities. The Product is not designed or intended for use in hazardous environments requiring fail-safe performance, including the operation of nuclear facilities, aircraft navigation or communication systems, air traffic...
- Page 14 N9246 Hwy 80 South, Suite 7 Necedah, WI 54646 Tel: (800) 859-5877 Fax: (608) 565-5879 Email: sales@lpc-ups.com Web: www.lpc-ups.com Entire contents copyright ©2006 Legacy Power Conversion, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited.
