Summary of Contents for Legacy Lineage LI3000

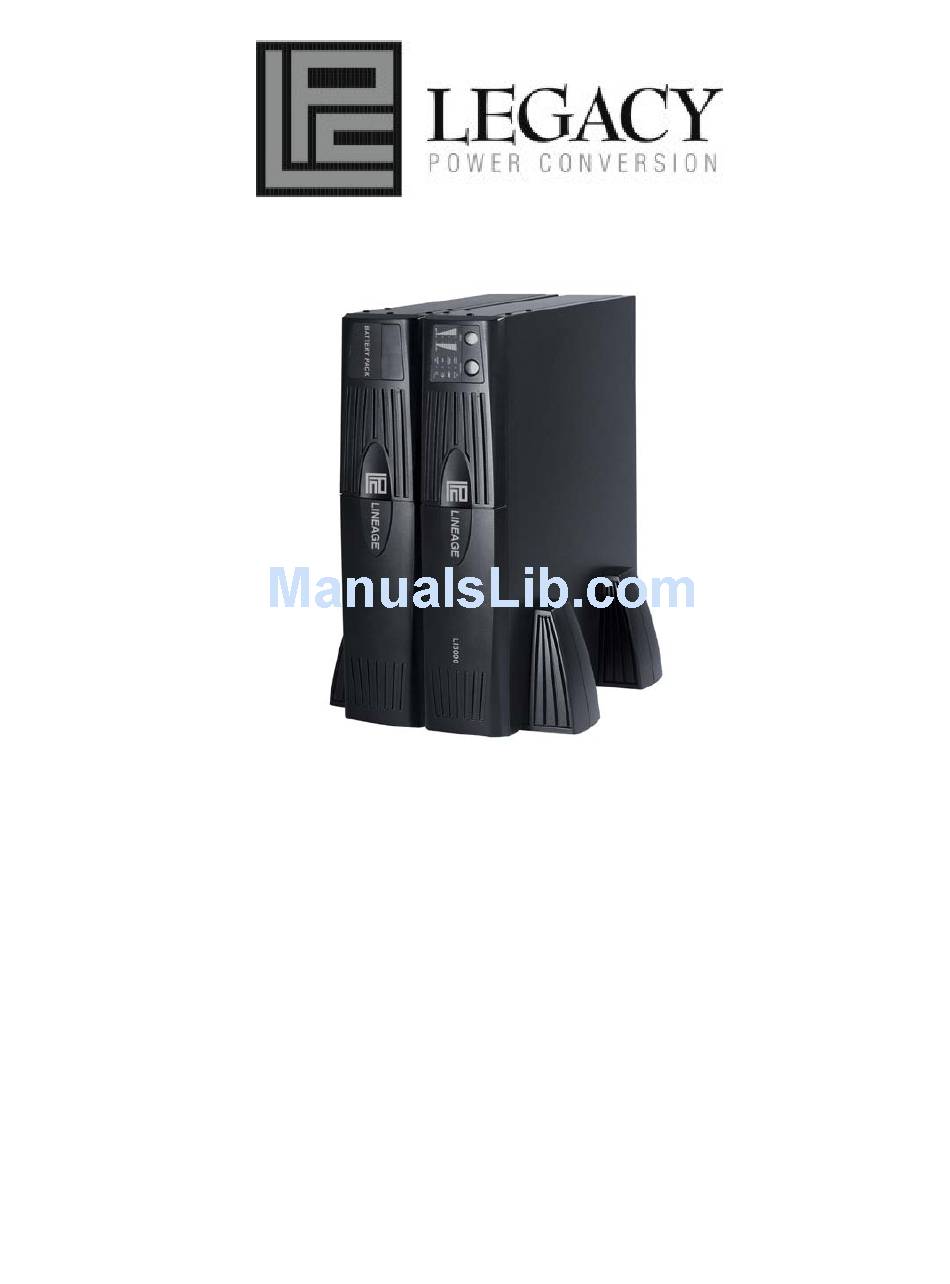

- Page 1 User’s Manual Lineage LI3000 UPS K01-1120005-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS……………………………………………….….…………...3 BLOCK DIAGRAM……………………..………………………………………..….4 INSTALLATION………………..……………………………….……………………4 - UNPACKING………...………………………………………………………..4 - HOW TO DERTERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT………………………………………………………………….4 - TO ESTIMATE POWER REQUIREMENTS………………………………5 - HARDWARE INSTALLATION………………………………………………5 BASIC OPERTAION……………………….………………………………………8 -FRONT PANEL DESCRIPTION……………………….……………………8 -REAR PANEL DESCRIPTION…………….………………………………..9 TROUBLESHOOTING……..………………………..…………..……..…..….….12 TECHNICAL SPECIFICATION…………………………………….……………..13 DEFINITIONS FOR ILLUMINATED LED INDICATORS…………………..….14 BATTERY REPLACEMENT……..……………..…………………………..…….15 LIMITED WARRANTY ….…………………………………………….……….….16... -
Page 3: Safety Warnings
LI3000 Uninterruptible Power Supplies SAFETY WARNINGS This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate. The AC power outlet must be installed near the UPS and must be easily accessible. -
Page 4: Block Diagram
BLOCK DIAGRAM INSTALLATION UNPACKING Inspect the UPS upon receipt. The box of LI3000 should contain the following: (1) UPS Unit; (1) User’s Manual; (2) Rack Mount Brackets; (2) Stands; (1) SeeUPS2020 Software Disk; (1) Telephone Cable; (2) Serial Interface Cables (RS232);... -
Page 5: To Estimate Power Requirements
LI3000 Uninterruptible Power Supplies Users should expect usage requirements to be approximately 60% of the maximum value. TO ESTIMATE POWER REQUIREMENTS: 1. ______Watts (W) x 2.0 = _____VA or _____Amps (A) x 120 = _____VA 2. Add the totals up for all pieces of equipment and multiply this total by 0.6 to calculate actual requirements. - Page 6 large electrical device into the UPS. The power demands of these devices will overload and possibly damage the unit. 4. To surge protect a network connection, connect a network cable from the wall jack outlet to the IN jack of the UPS. Then connect a network cable from the OUT jack on the UPS to the network device.
- Page 7 LI3000 Uninterruptible Power Supplies Figure 1: Connecting LI3000 with Battery Pack...
-
Page 8: Basic Opertaion
BASIC OPERATION FRONT PANEL DESCRIPTION ◆ ◆ ◆ ◆ Power Switch Press the power button to turn the UPS ON or OFF ◆ ◆ ◆ ◆ Test Switch The LI3000 UPS performs a self-test automatically on power on. If the UPS passes the test, it returns to on-line operation. If the UPS fails the self-test, please recharge the battery for 4 hours and perform another self-test. -
Page 9: Rear Panel Description
LI3000 Uninterruptible Power Supplies Load Level Indicators ◆ ◆ ◆ ◆ This indicator shows a visual depiction of the UPS load. The load indicator LED will turn orange if the load is between 80 and 100%. If the load is under 20%, no indicator LED will illuminate. ◆... - Page 10 ◆ ◆ ◆ ◆ Circuit Breaker Reset for Overload Protection Re-settable circuit breakers provide optimal overload protection. Battery Backup and Surge Protection Outlets ◆ ◆ ◆ ◆ Provides battery powered, surge protected and AVR outlets for connected equipment and insures uninterrupted operation of connected equipment during a power failure.
- Page 11 LI3000 Uninterruptible Power Supplies The Primary computer (with SeeUPS2020 Plus installed) is the computer that you will use to control the UPS and make any change to the operation of the UPS. The Secondary computer (with SeeUPS2020 installed) is unable to exhibit any control over the UPS.
-
Page 12: Troubleshooting
Recharge the battery by leaving the UPS The UPS does Battery is not fully charged. plugged in at least 4 hours. not perform Contact Legacy Power Conversion about expected Battery is slightly worn out. replacement batteries at service@lpc-ups.com runtime. or 800-859-5711. -
Page 13: Technical Specification
LI3000 Uninterruptible Power Supplies TECHNICAL SPECIFICATIONS Model LI3000 Capacity (VA) 3000VA Capacity (Watts) 2200W Input Voltage Range 85 – 150Vac Frequency Range 47 – 63Hz Output On Battery Output Voltage Pure Sine Wave at 120Vac +/- 5% On Battery Output 60 Hz Frequency Transfer Time (Typical) -
Page 14: Definitions For Illuminated Led Indicators
Overload- Turn the UPS off and unplug at least one Long Beep piece of equipment from the UPS. Wait 5 seconds, reset the circuit breaker and restart the UPS. Surge Protection Malfunction- Power surge has damaged the unit. Please contact Legacy Power Conversion... -
Page 15: Battery Replacement
LI3000 Uninterruptible Power Supplies BATTERY REPLACEMENT Contact your dealer or call the number in this manual for information on battery replacement. Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Servicing the battery can only be performed by trained personnel knowledgeable of batteries and their precautions. -
Page 16: Limited Warranty
If (a) the Legacy Product you purchased and still own is defective in material or workmanship under this Limited Warranty or any applicable warranty imposed by law, and (b) all Limited Warranty requirements have been met, Legacy will repair or replace the Product if it proves to be defective in material or workmanship during the Warranty Period. - Page 17 You MUST prepay all shipping costs and you are responsible for packaging and shipment. Legacy will inspect and examine the Product within ten (10) days of receipt. If the Product is not as warranted, Legacy will repair or replace the Product and return it to you at Legacy's expense, or, if...
- Page 18 (collectively, "High Risk Activities"). Legacy expressly disclaims any express or implied warranty of fitness for High Risk Activities. Legacy does not authorize use of any of its products use in any High Risk Activities. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF LEGACY PRODUCTS.
- Page 19 N9246 Hwy 80 South, Suite 7 Necedah, WI 54646 Tel: (800) 859-5877 Fax: (608) 565-5879 Email: sales@lpc-ups.com Web: www.lpc-ups.com Entire contents copyright ©2006 Legacy Power Conversion, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited...
