Summary of Contents for Legacy Lineage LI2200

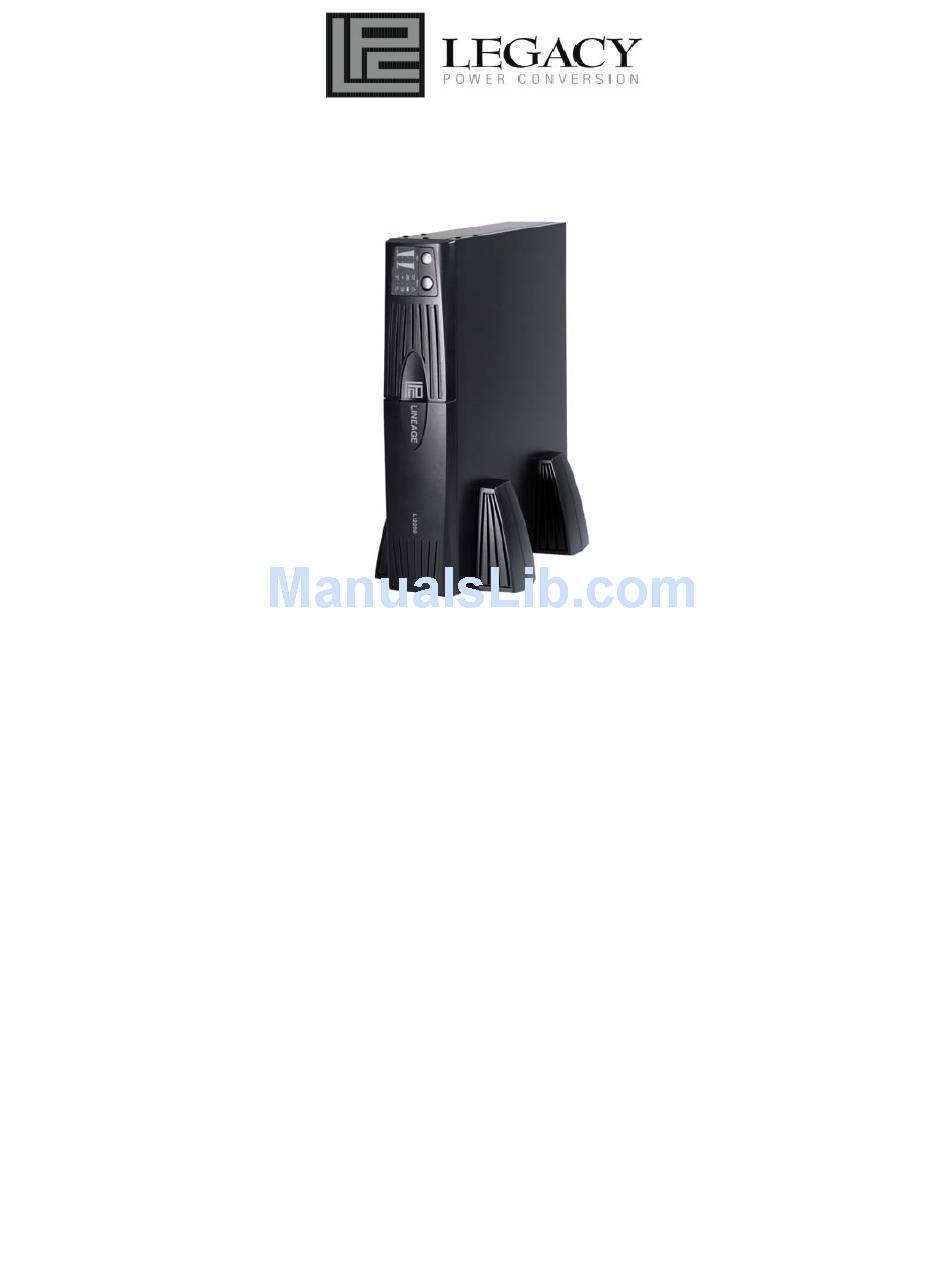

- Page 1 User’s Manual Lineage LI2200 UPS K01-1120004-00...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS………………………………………………….………..…..10 LIMITED WARRANTY ……………………..………………………………..……………..11 Thank you for purchasing a Legacy Power Conversion Product. To enjoy all the features and benefits of this Uninterruptible Power System (UPS), please read and follow all installation and operation instructions completely. This UPS is designed to provide guaranteed power protection for connected electronic equipment. -
Page 3: Important Safety Warnings
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Legacy Power Conversion does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect operation or safety of any life support equipment, with any medical applications, or patient care. -
Page 4: Installing Your Ups System
INSTALLING YOUR UPS SYSTEM UNPACKING Inspect the UPS upon receipt. The box should contain the following: (1) UPS Unit; (1) User’s Manual for UPS; (2) Rack mount Brackets; (2) Stands; (1) Telephone Cable (1) SeeUPS2020 Software Disk; (1) User’s Manual for SeeUPS2020; (2) Serial Interface Cable (DB-9);... -
Page 5: Basic Operation
Test Switch ◆ ◆ ◆ ◆ Lineage LI2200 UPS performs a self-test automatically. When powered on. When the UPS passes the test, it returns to on-line operation. If the UPS fails the self-test, please recharge the battery for hours and perform another self-test. -
Page 6: Rear Panel Description
Battery Indicators ◆ ◆ ◆ ◆ This indicator shows a visual indication of the battery charge. If battery capacity is under 20%, no indicator LED will illuminate and UPS starts beeping. Load Level Indicators ◆ ◆ ◆ ◆ This indicator shows a visual induction of the UPS load. The load indicator LED will turn orange if the load is between 80 and 100%. - Page 7 Dual Serial Ports • • • • Lineage LI2200 UPS provides two serial ports to allow connection and communication between the UPS and two computers. This allows the simultaneous shutdown of two computer systems. The Primary computer (with SeeUPS2020 Plus installed) is the computer that you will use to control the UPS and make any changes to the operation of the UPS.
-
Page 8: Battery Replacement And Storage
BATTERY REPLACEMENT Contact your dealer or call the number in this manual for information on battery replacement. The order numbers for the battery assembly are BBAT-LI2200 for LI2200. Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Service the battery under the supervision of personnel knowledgeable of batteries and their precautions. -
Page 9: Battery Replacement Procedure
Lineage LI2200 Uninterruptible Power System BATTERY REPLACEMENT PROCEDURE: 2. Remove the two retaining screws of 1. Remove the right side front the cable protection cover then panel. remove the cover. 4. Remove the four retaining screws. 3. Disconnect the black and red cable. -
Page 10: Definition For Illuminated Led Indicators
/Flash contact Legacy Power Conversion for battery replacement information. Surge Protection Malfunction- Power surge has damaged the unit. Please contact Legacy Power Conversion Electrical Wiring Fault- Indicates wiring problems such as a bad ground, missed ground or On/ Off reversed wiring within the AC... -
Page 11: Troubleshooting
UPS plugged in. Recharge the battery by leaving Battery is not fully charged. The UPS does the UPS lugged in. not perform Contact Legacy Power Conversion expected about replacement batteries at Battery is slightly worn out. runtime. service@lpc-ups.com 800-859-5711. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Model LI2200 Capacity (VA) 2200VA Capacity (Watts) 1500W Input Voltage Range 85 -150Vac Frequency Range 47 - 63Hz Output On Battery Output Voltage Pure Sine Wave at 120Vac +/- 5% On Battery Output Frequency 60Hz +/- 1% Transfer Time (Typical) Overload Protection On Utility: Circuit Breaker, On Battery: Internal Current Limiting... -
Page 13: Limited Warranty
Limited Warranty.) LIMITED WARRANTY Legacy warrants to you, the Initial Purchaser, that the Product will be free from defects in material and workmanship for three years from the date of original purchase, subject to the terms of this Limited Warranty. - Page 14 You MUST prepay all shipping costs and you are responsible for packaging and shipment. Legacy will inspect and examine the Product within ten (10) days of receipt. If the Product is not as warranted, Legacy will repair or replace the Product and return it to you at Legacy's...
- Page 15 Risk Activities"). Legacy expressly disclaims any express or implied warranty of fitness for High Risk Activities. Legacy does not authorize use of any of its products use in any High Risk Activities. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF LEGACY PRODUCTS.
- Page 16 N9246 Hwy 80 South, Suite 7 Necedah, WI 54646 Tel: (800) 859-5877 Fax: (608) 565-5879 Email: sales@lpc-ups.com Web: www.lpc-ups.com Entire contents copyright ©2006 Legacy Power Conversion, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited.
