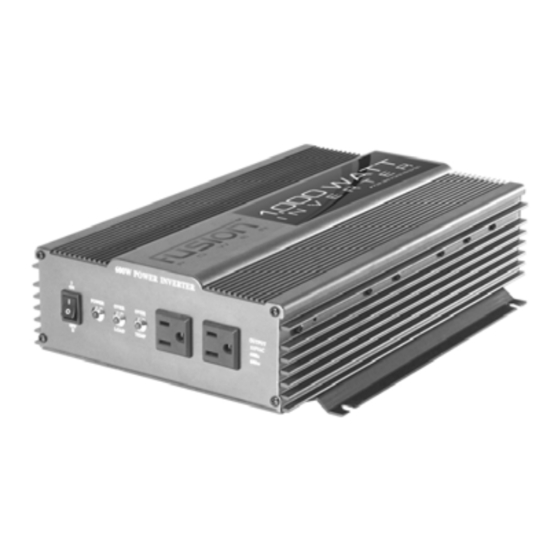

Summary of Contents for Fusion 782-6610
- Page 2 Read these instructions before connecting and using your Fusion™ Pure Sine Power Inverters. Failure in observing this warning may result in injury to persons and damage to equipment. General safety and installation information. Warning! The following fundamental safety measures must be observed...
- Page 3 Required tools and installations equipment Depending on type of installation, the following tools are required: -set of screw drivers -drill and set of bits -wrench -crimping shears for the12/24V wire connection For connection of inverter to the battery, the following cable connecting hardware is needed: -2 different flexible cable connections.
- Page 4 Cables: Make sure to use the correct cables. A chart is provided below, for your reference: Wire Gauge Max. Watt Output DC Amps Req’d 150W 300W 600W #6 or 2 x #10 #2 or 2 x #6 1000W 100A #2 or 2 x #6 1500W 150A #2 or 2 x #6...
- Page 5 ! Reverse polarity connection of the battery wires can damage the inverter. Do not use the inverter with electrical systems using positive ground. Operation: 600W / 1000W / 1500 / 2200 pure sine wave inverter Power on: On the LED control “Power” lighting - Green LED. Over load: One the LED control “Over-Load”...
-
Page 6: Specifications
Specifications: Model 782-6610 782-6611 Continuous Power 600W 1000W Surge 1000W 2000W Output Voltage 115V+/-3% 115V+/-3% Output Freq. 60Hz 60Hz Waveform Pure Sine Pure Sine Total Harmonic Distortion < 3% < 3% Input Voltage Range 10V-15V 10V-15V Efficiency > 85% > 85% No Load Current Draw 0.85A... - Page 7 Specifications: Model 782-6612 782-6613 Continuous Power 1500W 2200W 20 Minutes 1800W 2500W Surge 3000W 3600W Output Voltage 115V+/-3% 115V+/-3% Output Freq. 60Hz 60Hz Waveform Pure Sine Pure Sine Total Harmonic Distortion < 3% < 3% Input Voltage Range 10V-15V 10V-15V Efficiency >...
