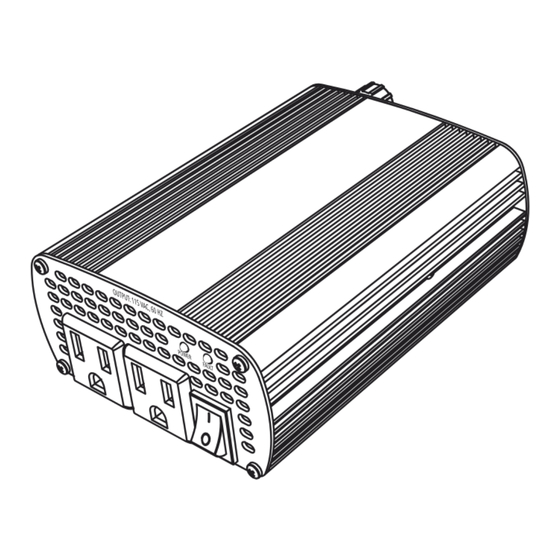

Fusion 300W INVERTER Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2218174
Owner's Guide
300W
INVERTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300W INVERTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fusion 300W INVERTER

Summary of Contents for Fusion 300W INVERTER

  • Page 1 2218174 Owner’s Guide 300W INVERTER...

  • Page 3: Table Of Contents

    Contents 1. Introduction ..........2 2. Important Safety Information ....4 Warnings and Cautions ........4 Additional Safety Guidelines ......7 3. Safety Features ..........8 4. Installation Guidelines ........9 Selecting a suitable location ........ Selecting a suitable location ........ Selecting a suitable location 5.

  • Page 4: Introduction

    VCRs, laptop computers, camcorder and cell phone chargers, compact fl uorescent lights, and soldering irons. The Fusion 300W Inverter uses reliable solid state power electronics for years of safe, trouble-free operation and includes automatic safety monitoring circuitry to protect it from inadvertent overload...
  • Page 5 Read this guide before connecting or using the inverter and save it for future reference. The main topics in the guide are: • Safety information (page 4) • Installation Guidelines (page 9) • Instructions for using the inverter (page 10) •...

  • Page 6: Important Safety Information

    2. Important Safety Information Misusing or incorrectly connecting the inverter may damage the equipment or create hazardous conditions for users. Read the following safety instructions and pay special attention to all Caution and Warning statements in the guide. Warnings identify conditions that may result in personal injury or loss of life.
  • Page 7 WARNING: Heat Hazard The inverter housing may become uncomfortably warm, reaching 60°C (140°F) under extended high power operation. Ensure that at least 5 cm (2 inches) of air surround the inverter. During operation, keep it away from materials that may be affected by high temperatures. WARNING: Explosion Hazard Do not use the inverter in the presence of fl...
  • Page 8 CAUTION: Output Non-Sinusoidal Some chargers for small nickel-cadmium batteries can be damaged if connected to the inverter. Do not use the inverter with the following appliances: • Small battery-operated appliances like rechargeable fl ashlights, some rechargeable shavers, and night lights that are plugged directly into an AC receptacle to recharge.

  • Page 9: Additional Safety Guidelines

    Additional Safety Guidelines • Do not insert foreign objects in the inverter outlets or other openings. • Never connect the inverter to power utility AC distribution wiring. • Do not use the inverter in temperatures over 40°C (104°F). • Do not expose the inverter to water, rain, snow, or spray.

  • Page 10: Safety Features

    3. Safety Guidelines These advanced safety features are built into the Fusion 300W Inverter: • Electronic overload protection with automatic shutdown • Built-in internal backup DC fuse • Low battery voltage warning followed by automatic shutdown • High-input voltage protection with automatic shutdown •...

  • Page 11: Installation Guidelines

    4. Installation Guidelines Selecting a suitable location For safe and optimum performance, install the inverter in a location that is: Do not expose to water drip or spray. Cool Operate only in ambient temperatures between 0°C (32°F) and 40°C (104°F). Keep away from furnace heating vents or other heat producing equipment.

  • Page 12: Using The Inverter

    5. Using the Inverter The inverter is capable of continuously powering most 120 V AC products that use 240 W or less. Its AC output waveform, called “modifi ed-sine wave,” is designed to function similarly to the sine wave shape of utility power.

  • Page 13: Using The Dc Cable With Cigarette Lighter Plug

    Using the DC cable with cigarette lighter plug Due to the limitations of 12 V outlets in vehicles or boats, the inverter should only be used to supply AC power to products that require 100 W (about 0.8 A) or less. If your application requires more than 100 W (but less than 240 W continuous) or has a high start- up surge, see “Using the DC cable clips.”...
  • Page 14 3. Insert the plug of this cable into the 12 V outlet and switch the unit ON. 4. When the power inverter is not in use, unplug it from the 12 V outlet to prevent slight discharge of the battery.

  • Page 15: Using The Dc Cable Clips

    Using the DC cable clips By directly connecting the power inverter to a 12 V battery using the DC cable clips, you can operate products with power requirements for 300 W. 1. Follow steps 1 and 2 above (Using the DC Cable with cigarette lighter plug) to attach the ring type connectors.

  • Page 16: Indicators And Controls

    6. Indicators and Controls AC outlets ON/OFF switch Negative DC terminal DC cable with DC cable with battery DC cable with battery cigarette lighter plug cigarette lighter plug Figure 1...
  • Page 17 • Two AC outlets are provided on one end of the inverter. Any combination of 120 V AC products with a total continuous power consumption of 240 W or less may be plugged in. • The ON/OFF switch enables output AC power at the AC outlet(s) when switched ON.

  • Page 18: Inverter Operation

    7. Inverter Operation 1. When properly connected to a 12 V outlet or battery, turning the inverter switch ON, will illuminate the green POWER light, and deliver AC power to the outlet(s). 2. Plug the AC product(s) you wish to operate into the AC outlet(s) and switch them on, one at a time.
  • Page 19 Important: Vehicle batteries are designed to provide brief periods of very high current needed for engine starting. They are not intended for constant deep discharge. Regularly operating the inverter from a vehicle battery until the low voltage alarm sounds will shorten the life of the battery. Consider connecting the power inverter to a separate deep-cycle battery if you will be frequently running electrical products for extended periods of time.

  • Page 20: Battery Operating Time

    CAUTION: Although the inverter incorporates protection against over-voltage, it may still be damaged if the input voltage exceeds 16 V. 8. The cooling fan is designed to operate only when output power is greater than approximately 100W. When the inverter is turned on, the fan may operate momentarily.

  • Page 21: Interference With Electronic Equipment

    When using a vehicle battery as a power source, it is strongly recommended to start the vehicle every hour or two to recharge the battery before its capacity drops too low. The inverter can operate while the engine is running, but the normal voltage drop that occurs during starting of the engine may trigger the inverter’s low voltage shutdown feature.
  • Page 22 Buzzing sound in audio systems and radios Some inexpensive stereo systems, “boom boxes,” and AM-FM radios have inadequate internal power supply fi ltering and “buzz” slightly when powered by the inverter. Generally, the only solution is an audio product with a higher quality fi lter. Television interference The inverter is shielded to minimize its interference with TV signals.

  • Page 23: Troubleshooting

    8. Troubleshooting PROBLEM: AC product will not operate, no inverter lights are ON. Possible cause Possible cause Remedy Remedy Battery is defective. Check battery and replace if required. Inverter has been Check connection to battery. connected with reverse Probable inverter damage has occurred. DC input polarity.
  • Page 24 PROBLEM: Measured inverter output is too low. Possible cause Possible cause Remedy Remedy Standard “average- Inverter’s “modifi ed sine wave” output reading” AC requires “true RMS” voltmeter for accurate voltmeter used to measurements. measure output voltage, resulting in an apparent reading 5 to 15 V too low.
  • Page 25 PROBLEM: Battery run time is less than expected. Possible cause Remedy AC product power Use a larger battery to make up for consumption is increased power requirement. higher than rated. Battery is old or Replace battery. defective. Battery is not being Some chargers are not able to fully properly charged.
  • Page 26 PROBLEM: AC product will not operate, red FAULT light ON. Possible cause Possible cause Possible cause Possible cause Possible cause Remedy Remedy Remedy Remedy Remedy AC product(s) Use a product with a power rating less than connected are rated at the inverter’s continuous power rating.

  • Page 27: Specifi Cations

    9. Specifications NOTE: Specifi cations are subject to change without notice. AC output voltage (nominal) 120 V AC DC input voltage range 10.5-15.5 V DC DC maximum input current 35 A Continuous AC output power 240 W 5 minutes AC output power 300 W Maximum AC output surge 500 W...
  • Page 28 Low battery alarm trigger 11.0 V point (nominal) Low battery shut down point 10.5 V (nominal) High battery shut down point 15.5 V (nominal) Dimensions (L × W × H) 15.2 × 10.6 × 5 cm (6 × 4 × 2”) Weight 0.74 kg (1.6 lb)

  • Page 29: Warranty

    10. Warranty ORBYX ELECTRONICS WARRANTY ORBYX Electronics warrants that this product will be free from defects in materials and workmanship for a period of ninety (90) days from the date of purchase. Within this period, simply take the product and your proof of purchase to any ORBYX Electronics store or dealer and the product will be repaired without charge for parts and labour.
