Jvc cassette receiver instructions.
Hide thumbs


For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l'installation et les raccordements, se référer au manuel séparé.
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retain this information for future
Model No.
Serial No.


   Related Manuals for JVC Instructions

   Summary of Contents for JVC Instructions

  • Page 1

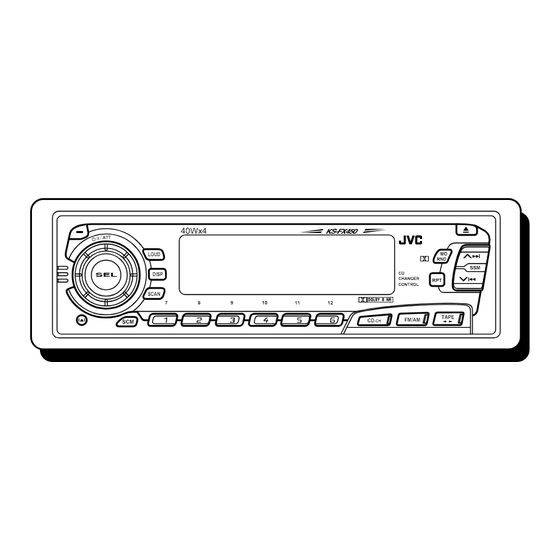

    For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé. INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS BAND PROG DISC 40Wx4 FUNC...

  • Page 2: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS BASIC OPERATIONS ... 4 RADIO OPERATIONS ... 5 Listening to the radio ... 5 Storing stations in memory ...

  • Page 3

    OTHER MAIN FUNCTIONS ... 19 Setting the clock ... 19 Changing the general settings (PSM) ... 20 Basic Procedure ... 20 Canceling Advanced SCM ... 21 Selecting the level display ... 21 Selecting the dimmer mode ... 22 Selecting the external component to use ... 22 Detaching the control panel ...

  • Page 4: Basic Operations

    BASIC OPERATIONS Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. TAPE FM/AM Adjust the sound as you want (see pages 14 – 18). To drop the volume in a moment Press briefly while listening to any source.

  • Page 5: Radio Operations

    RADIO OPERATIONS Listening to the radio FM/AM Audio (see page 21) or volume level indicator To search stations of higher frequencies To search stations of lower frequencies To stop searching before a station is received, press the same button you have pressed for searching.

  • Page 6: Storing Stations In Memory

    Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong-station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

  • Page 7: Manual Preset

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset channel number 1 of the FM1 band FM/AM Selected band,preset number and “MEMO”...

  • Page 8: Tuning Into A Preset Station

    Tuning into a preset station You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7. FM/AM Select the band (FM1, FM2, FM3 or AM) you want.

  • Page 9: Other Convenient Tuner Functions

    Other convenient tuner functions Control dial Scanning broadcast stations When you press SCAN while listening to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for about 5 seconds (SCAN flashes on the display), and you can check what program is now being broadcasted.

  • Page 10: Tape Operations

    TAPE OPERATIONS Listening to a tape • When one side of the tape reaches its end during play, the other side of the tape automatically starts playing. (Auto Reverse) Note on One-Touch Operation: When a cassette is already in the cassette compartment, pressing TAPE 2 3 turns on the unit and starts tape play automatically.

  • Page 11

    To stop play and eject the cassette Press 0. Tape play stops, the control panel opens, then the cassette automatically ejects from the cassette compartment. If you change the source to FM, AM or CD changer, the tape play also stops (without ejecting the cassette this time).

  • Page 12: Finding The Beginning Of A Tune

    Finding the beginning of a tune Multi Music Scan allows you to automatically start playback from the beginning of a specified tune. You can specify up to 9 tunes ahead of or before the current tune. During playback To locate a tune ahead of the current tune on the tape To locate a tune...

  • Page 13: Other Convenient Tape Functions

    Other convenient tape functions Skipping the blank portions on the tape You can skip blank portions between the tunes. (Blank Skip) When this function is on, the unit skips blank portions of 15 seconds or more, fast-forwards to the next tunes, then starts playing it. •...

  • Page 14: Sound Adjustments

    SOUND ADJUSTMENTS Adjusting the sound You can adjust the treble/bass sound and the speaker balance. Indication Adjust the bass (Bass) Adjust the treble (Treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance Adjust the volume (Volume) Note:...

  • Page 15: Turning On/off The Loudness Function

    Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce well-balanced sound at low volume level. Turn on or off the loudness function. LOUD Each time you press LOUD, the loudness function turns on and off alternately.

  • Page 16: Using The Sound Control Memory

    Using the Sound Control Memory You can select and store a preset sound adjustment suitable to each playback source. (Advanced SCM) Selecting and storing the sound modes Once you select a sound mode, it is stored in memory, and will be recalled every time you select the same source.

  • Page 17: Recalling The Sound Modes

    Recalling the sound modes TAPE FM/AM Notes: • You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 18. •...

  • Page 18: Storing Your Own Sound Adjustments

    Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 16) to your preference and store your own adjustments in memory. Within 5 seconds LOUD Within 5 seconds Within 5 seconds Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 16.

  • Page 19: Other Main Functions

    OTHER MAIN FUNCTIONS Setting the clock Press and hold SEL (Select) for more than 2 seconds so that one of the PSM items appears on the display. To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows: During tuner operation: Clock Band...

  • Page 20: Changing The General Settings (psm)

    Changing the general settings (PSM) You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (Select) for more than 2 seconds so that one of the PSM items appears on the display.

  • Page 21: Canceling Advanced Scm

    Select. CLOCK H Hour adjustment CLOCK M Minute adjustment SCM LINK Sound control memory linkage LEVEL Level display DIMMER Dimmer AREA Channel interval B. SKIP Blank skip LINE IN External component * Displayed only when one of the following sources is selected — FM, AM and tape. •...

  • Page 22: Selecting The Dimmer Mode

    Selecting the dimmer mode When you turn on the car head lights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated. • AUTO: Activates Auto Dimmer. • ON: Always dims the display. • OFF: Cancels Auto Dimmer.

  • Page 23: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure...

  • Page 24: Remote Operations

    REMOTE OPERATIONS Before using the remote controller: • Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between. • Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

  • Page 25: Cd Changer Operations

    We recommend that you use one of the CH-X series with your unit. If you have another CD automatic changer, consult your JVC car audio dealer for connections. • For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

  • Page 26: To Fast-forward Or Reverse The Track

    To fast-forward or reverse the track Press and hold Press and hold To go to the next tracks or the previous tracks Press the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back. Press the current track.

  • Page 27: Selecting Cd Playback Modes

    Selecting CD playback modes To play back tracks at random (Random Play) Each time you press playing a CD, CD random play mode changes as follows: Mode RND Indicator RND1 Lights RND2 Flashes To play back tracks repeatedly (Repeat Play) Each time you press RPT (Repeat) while playing a CD, CD repeat play mode changes as follows: Mode...

  • Page 28: External Component Operations

    EXTERNAL COMPONENT OPERATIONS Playing an external component You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied). Preparations: • For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

  • Page 29: Maintenance

    To extend the lifetime of the unit This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below. To clean the heads To keep the tape clean CAUTIONS: •...

  • Page 30: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • A cassette tape cannot be inserted. • Cassette tapes become hot. • Tape sound is at very low level and sound quality is degraded.

  • Page 31: Specifications

    AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 40 W per channel Rear: 40 W per channel Continuous Power Output (RMS): Front: 16 W per channel into 4 to 20,000 Hz at no more than 0.8% total harmonic distortion. Rear: 16 W per channel into 4 to 20,000 Hz at no more than 0.8% total harmonic distortion.

  • Page 32

    Having TROUBLE with operation? Please reset your unit Refer to page of How to reset Still having trouble?? USA ONLY Call 1-800-252-5722 We can help you! VICTOR COMPANY OF JAPAN, LIMITED EN, SP, FR 1199MNMMDWJES...
