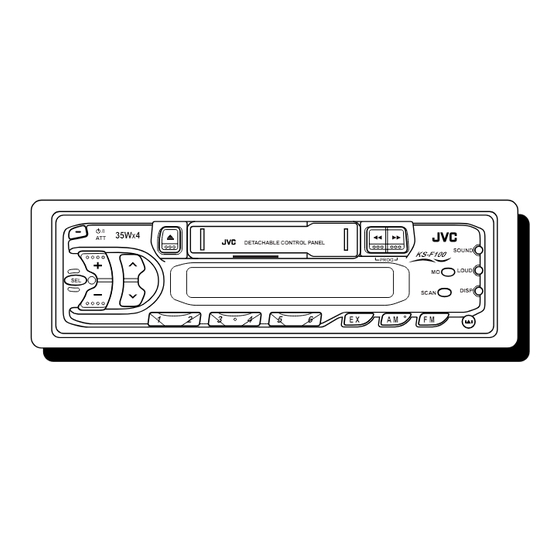

CASSETTE RECEIVER
CASSETTEN-RECEIVER
RADIOCASSETTE
RADIO/CASSETTESPELER
KS-F100
/I
35W
4
X
ATT
DETACHABLE CONTROL PANEL
SOUND
PROG
LOUD
MO
SEL
DISP
SCAN
1
2
3
4
5
6
E X
A M
F M
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
FSUN3030-311S
[E]
Advertisement
Table of Contents
Related Manuals for JVC KS F100
Summary of Contents for JVC KS F100
- Page 1 CASSETTE RECEIVER CASSETTEN-RECEIVER RADIOCASSETTE RADIO/CASSETTESPELER KS-F100 DETACHABLE CONTROL PANEL SOUND PROG LOUD DISP SCAN For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.
-
Page 2: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS BASIC OPERATIONS ... 3 RADIO OPERATIONS ... 4 Listening to the radio ... 4 Storing stations in memory ... -
Page 3: Basic Operations
BASIC OPERATIONS Notes on One-Touch Operation: • When you select tuner as a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. • If the cassette is already in the cassette compartment, tape play starts automatically. -
Page 4: Radio Operations
RADIO OPERATIONS Listening to the radio Note on One-Touch Operation: When you select a band in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Note: When a cassette is in the cassette compartment, you cannot select the tuner. Be sure to eject the cassette from the cassette compartment to listen to the radio. -
Page 5: Storing Stations In Memory
Storing stations in memory You can store the broadcasting stations in memory. Storing stations manually You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band Repeat the above procedure to store other stations into other preset numbers. -
Page 6: Storing Your Favorite Stations Into The One-Touch Operation Button (Ex - Extra)
Storing your favorite stations into the one-touch operation button (EX — extra) You can preset an FM or AM station (such as your favorite station or traffic announcement station); and recall it by one touch operation even if the unit is turned off. EXAMPLE: Storing an FM station of 88.3 MHz into the one-touch operation button (EX) Follow the steps 1 and 2 on page 5. -
Page 7: Tuning Into A Preset Station
Tuning into a preset station You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 5 and 6. To tune in the favorite station DETACHABLE CONTROL PANEL Select the band (FM1, FM2, FM3 or AM) you want. -
Page 8: Other Convenient Tuner Functions
Other convenient tuner functions Scanning broadcast stations When you press SCAN while listening to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency number flashes on the display), and you can check what program is now being broadcast. If you want to listen to that program, press the same button again to stop scanning. -
Page 9: Tape Operations
Listening to a tape PROG To stop play and eject the cassette Press 0. Tape play stops and the cassette ejects from the cassette compartment. You can hear the last received station. • You can also eject the cassette with the unit turnd off. To fast-wind a tape Press either ¡... -
Page 10: Sound Adjustments
SOUND ADJUSTMENTS Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels. Each time you press LOUD, the loudness function turns on/off alternatively. LOUD LOUD Selecting preset sound modes... -
Page 11: Adjusting The Sound
Adjusting the sound You can adjust the treble/bass sound and the speaker balance. Indication Adjust the bass (bass) Adjust the treble (treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance Adjust the volume (Volume) Note: * If you are using a two-speaker system, set the fader level to “00”... -
Page 12: Storing Your Own Sound Adjustments
Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 10) to your preference and store your own adjustments in memory. SOUND Within 5 seconds LOUD Within 5 seconds Within 5 seconds SOUND Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 10. -
Page 13: Other Main Functions
OTHER MAIN FUNCTIONS Setting the clock 1 2, 3 DISP To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows. During tuner operation: Frequency DETACHABLE CONTROL PANEL Press and hold the button for more than 2 seconds. -
Page 14: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure... -
Page 15: Maintenance
To extend the lifetime of the unit This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below. To clean the heads To keep the tape clean CAUTIONS: •... -
Page 16: Troubleshooting
TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • A cassette tape cannot be inserted. • Cassette tapes become hot. • Tape sound is at very low level and sound quality is degraded. -
Page 17: Specifications
AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 35 watts per channel Rear: 35 watts per channel Continuous Power Output (RMS): Front: 15 watts per channel into 4 to 20,000 Hz at no more than 0.8% total harmonic distortion. Rear: 15 watts per channel into 4 to 20,000 Hz at no more than 0.8% total harmonic distortion.
