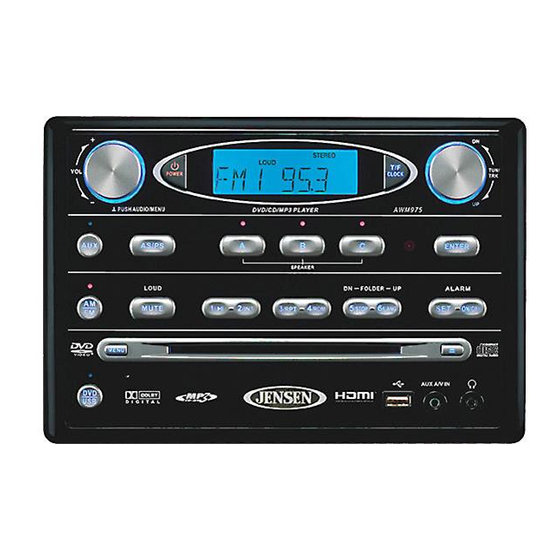

Jensen AWM975 Quick Reference Manual

AWM 975 Quick Reference Guide
AUDIO: With each
press of the button
choose from the
following AUDIO
ADJUSTMENT
options: VOLUME,
BASS, TREBLE,
BALANCE (left to
right), & FADER
(front to back).
Power On/Off:
Push to turn
ON or OFF.
MUTE: Press to
MUTE audio.
VOL: Rotate CLOCK-
WISE to INCREASE
VOLUME. Rotate
COUNTER CLOCK-
WISE to DECREASE
VOLUME.
AS/PS: Press to
SCAN through
currently stored
presets. Press &
hold to STORE
strongest broad-
cast stations in
your area.
AM/FM/WB: Press to directly access TUNER MODE.
Press to select between two AM BANDS (AM1 &
AM2) and three FM BANDS (FM1, FM2, & FM3).
Press and hold to access the Weatherband.
VOL: Rotate CLOCK-
WISE to INCREASE
VOLUME. Rotate
COUNTER CLOCK-
WISE to DECREASE
VOLUME.
MUTE: Press to
MUTE audio.
MENU: Press
to access main
DVD MENU.
DVD/USB:
Press to select
DVD/USB mode.
PLAY/PAUSE: INTRO SCAN: Press to
Press to PLAY or play each track for 10
PAUSE current seconds in sequential
audio or video. order. Press again to
SELECT desired play.
MUTE: Press
to MUTE audio.
RPT: Press to REPEAT RDM: Press to
current playing track. play each track in
Press to release RANDOM order.
function. Press again for
NORMAL play.
T/F CLOCK:
display CLOCK.
SPEAKER OUTPUT:
Press any speaker
button (SPEAKER A,
SPEAKER B, or
SPEAKER C) to control
corresponding speaker
output from the stereo.
Red light above each
button will illuminate
when selected speaker
is turned on.
HEADPHONE:
headphone jack.
AUX A/V IN:
3.5mm audio/video jack.
TUNE/TRACK:
COUNTER CLOCKWISE
to TUNE DOWN in
frequency. Rotate
CLOCKWISE to TUNE
UP in frequency. Rotate
and hold to scan to next
strongest station.
STATION STORE BUTTONS:
Press & hold to store current channel playing. Momentarily
press to recall stored channel. NOTE: you can store up to 30
channels (6 channels per band FM1, FM2, FM3, AM1, AM2).
TUNE/TRACK:
CLOCKWISE to tune
to NEXT TRACK or
CHAPTER/TITLE.
Rotate COUNTER
CLOCKWISE to tune to
PREVIOUS TRACK or
CHAPTER/TITLE. In CD
MODE, rotate and hold
to FAST FORWARD
or REWIND current
play. In DVD MODE,
rotate and hold to enter
FAST FORWARD/RW.
Momentarily turn to
step through x2, x4,
x8, x20. Press PLAY
to resume.
EJECT:
EJECT CD or DVD.
STOP: Press to LANG: Press
SUSPEND disc play. to select AUDIO
Press PLAY/PAUSE LANGUAGE
to RESUME disc play. when in DVD
MODE.
Press to
Insert
Insert
Rotate
Rotate
Press to
USB: Plug in
USB device
