Remote Controller - JVC KV-MH6500 Instructions Manual

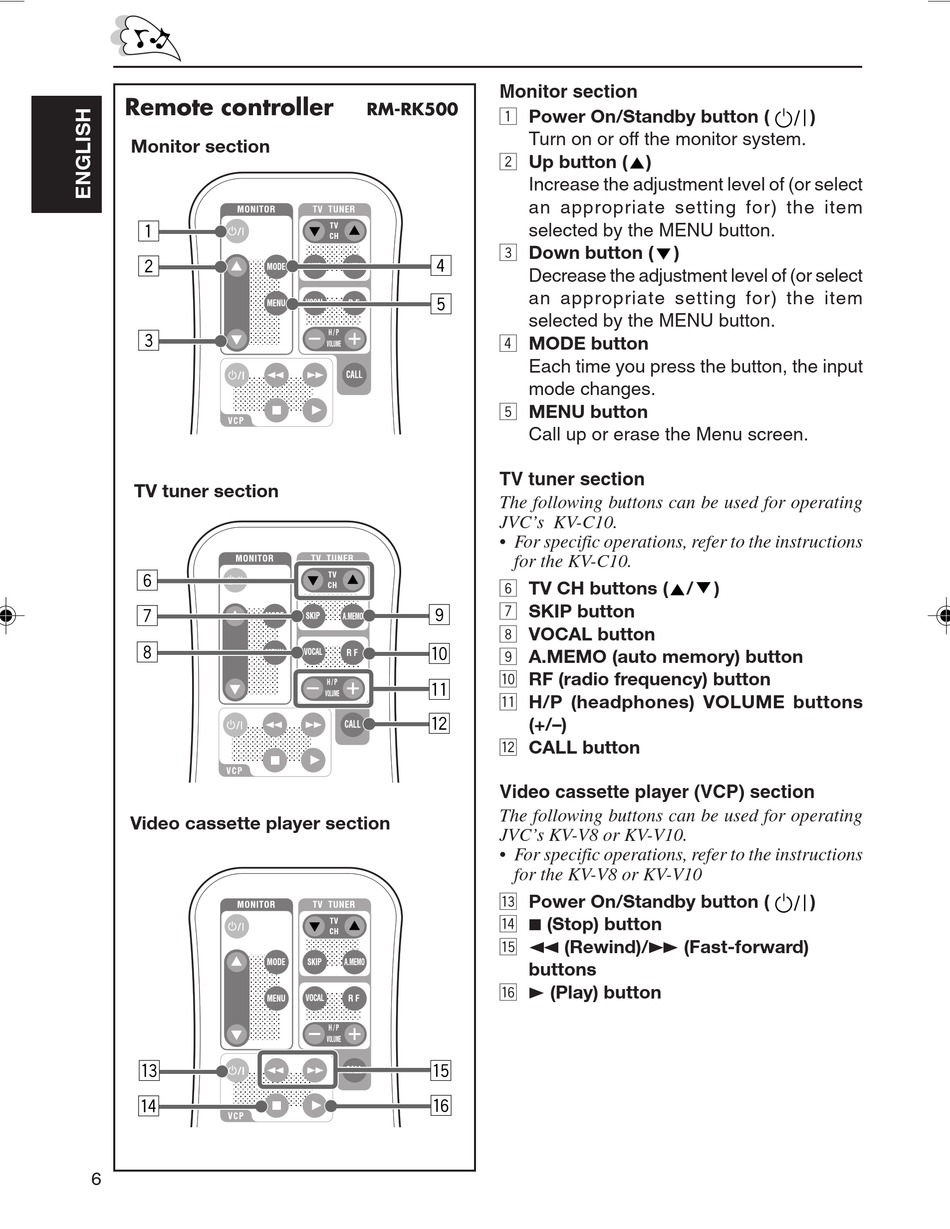

Remote controller

Monitor section
MONITOR
1
2
3
VCP
TV tuner section
MONITOR
6
7
8
VCP
Video cassette player section
MONITOR
e
r
VCP
6
RM-RK500
TV TUNER
TV
CH
MODE SKIP
A.MEMO
MENU VOCAL R F
H / P
VOLUME
CALL
TV TUNER
TV
CH
9
SKIP
MODE A.MEMO
p
VOCAL
MENU R F
H / P q
VOLUME
w
CALL
TV TUNER
TV
CH
MODE SKIP
A.MEMO
MENU VOCAL
R F
H / P
VOLUME
CALL
Monitor section
1 Power On/Standby button (
Turn on or off the monitor system.
2 Up button ( )
Increase the adjustment level of (or select
an appropriate setting for) the item
selected by the MENU button.
3 Down button (
4
Decrease the adjustment level of (or select
an appropriate setting for) the item
5
selected by the MENU button.
4 MODE button
Each time you press the button, the input
mode changes.
5 MENU button
Call up or erase the Menu screen.
TV tuner section
The following buttons can be used for operating
JVC's KV-C10.
• For specific operations, refer to the instructions
for the KV-C10.
6 TV CH buttons ( /
7 SKIP button
8 VOCAL button
9 A.MEMO (auto memory) button
p RF (radio frequency) button
q H/P (headphones) VOLUME buttons
(+/–)
w CALL button
Video cassette player (VCP) section
The following buttons can be used for operating
JVC's KV-V8 or KV-V10.
• For specific operations, refer to the instructions
for the KV-V8 or KV-V10
e Power On/Standby button (
r 7 (Stop) button
t 1 (Rewind)/¡ (Fast-forward)
buttons
y 3 (Play) button
t
y
)
)
)
)
