Rear Panel

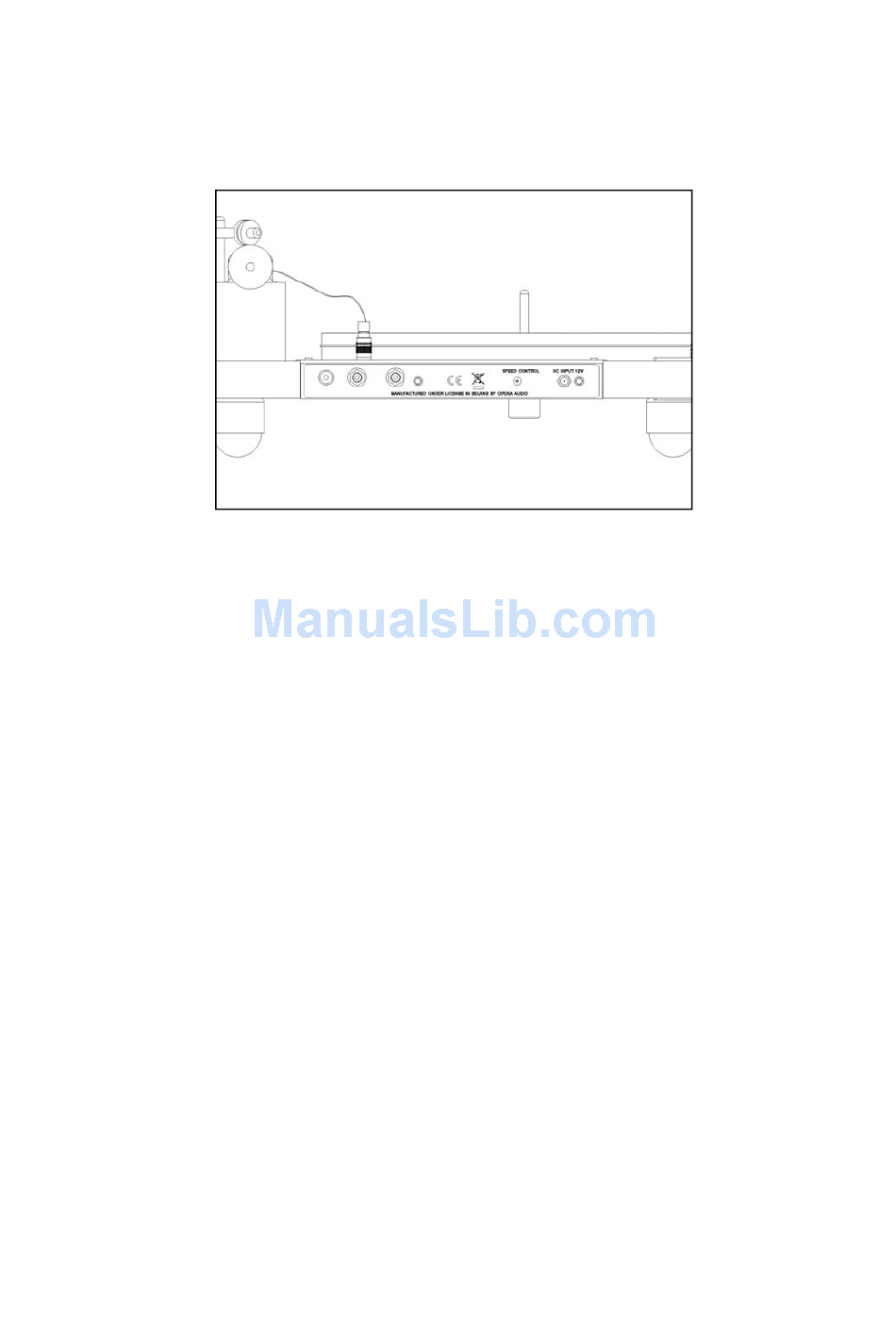

Earth screw and phono sockets colour coded and clearly marked are on the rear panel. See Fig (20).
Speed adjustment is also available on this panel. Connection for the AC adaptor is on this panel and
clearly marked. Plug it in, you are ready to go. Enjoy!
Fig (20)

Stylus Pressure Gauge

Fitting Batteries: When fitting the batteries in the Stylus Pressure Gauge, the positive symbol on
both batteries should face upwards when viewed from underside of the Stylus Pressure Gauge i.e.
positive symbol on battery faces upwards and under the opening.
Operation:
1. Place the Stylus Pressure Gauge on a firm surface.
2. Press ON/OFF switch, wait until (0.0) is displayed.
3. Place Stylus on scale.
4. Press the "M" button to shift the unit properties between Gram (g), Ounce (oz), Pennyweight (dwt)
and Carat (ct).
Tare Weighing:
1. Turn on the Stylus Pressure Gauge as described above.
2. Place Stylus on scale.
3. Press "TARE" and wait until (0.0) is displayed.
4. Add the net weight item.
