Unpacking the Amadeus

We recommend the use of the white gloves provided when handling the plinth and platter assem-
blies.
Take care that none of the fluids contaminate the finished surfaces of your Amadeus.
The Amadeus packaging has been designed to protect it from the hazards of shipping. It is advisable
to save it for further use.

Assembly

For ease of assembly we recommend a flat work surface, such as a table or bench. All necessary
tools have been provided.

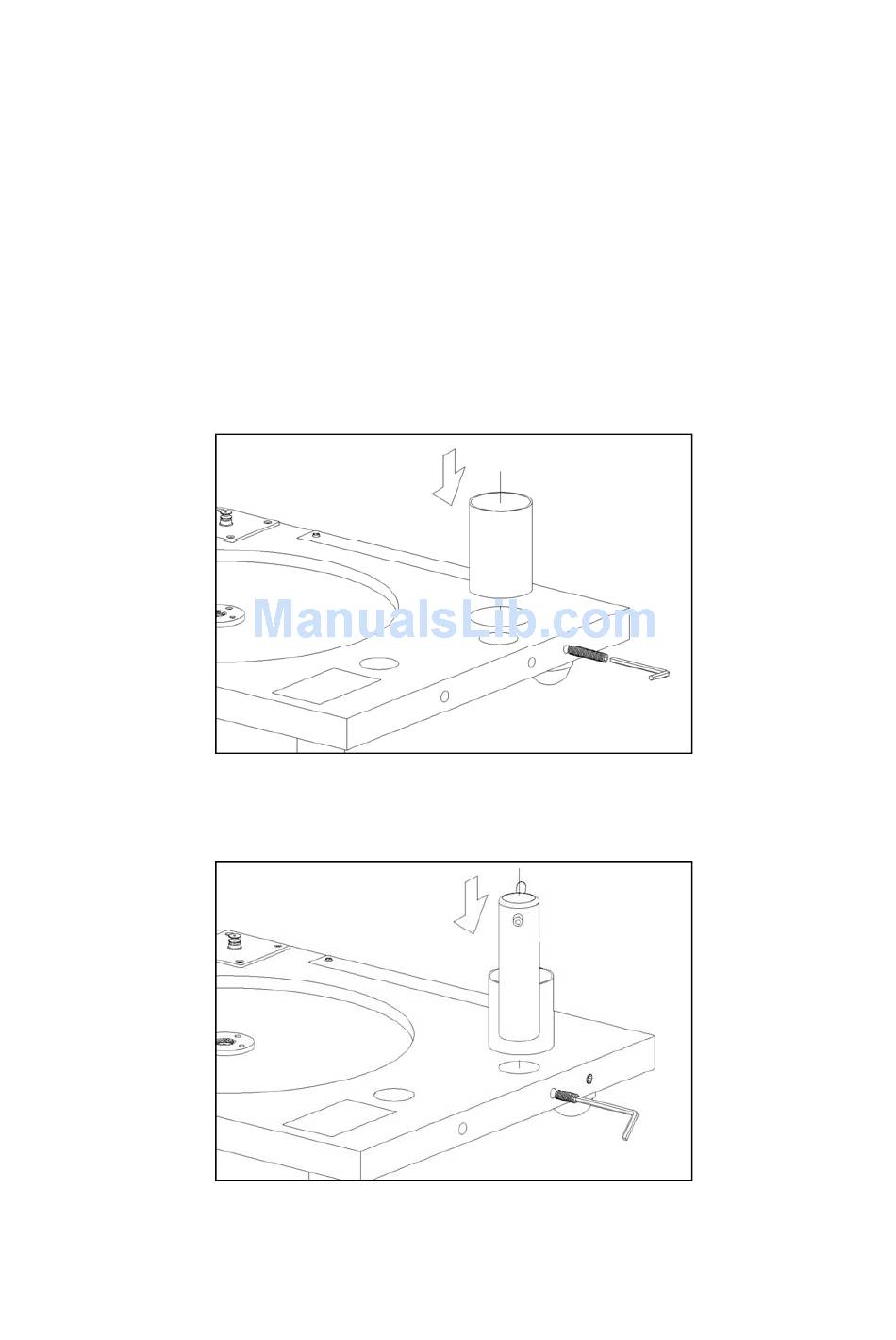

1. Install bearing cup in plinth adjust to approx 40mm (1.6in) above plinth and tighten set screw. See
Fig (1).
Fig (1)
2. Install tonearm suspension pillar to approx 95mm (3.8in) above plinth and tighten set screw. Com-
plete with tonearm suspension rod. See Fig (2).
Fig (2)
