CASSETTE RECEIVER
KS-T807/KS-T707
For installation and connections, refer to the separate manual.
INSTRUCTIONS
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
KS-T807
KS-T707
GET0212-001A
[EE]

Advertisement

Table of Contents
loading

Related Manuals for JVC KS-T707

Summary of Contents for JVC KS-T707

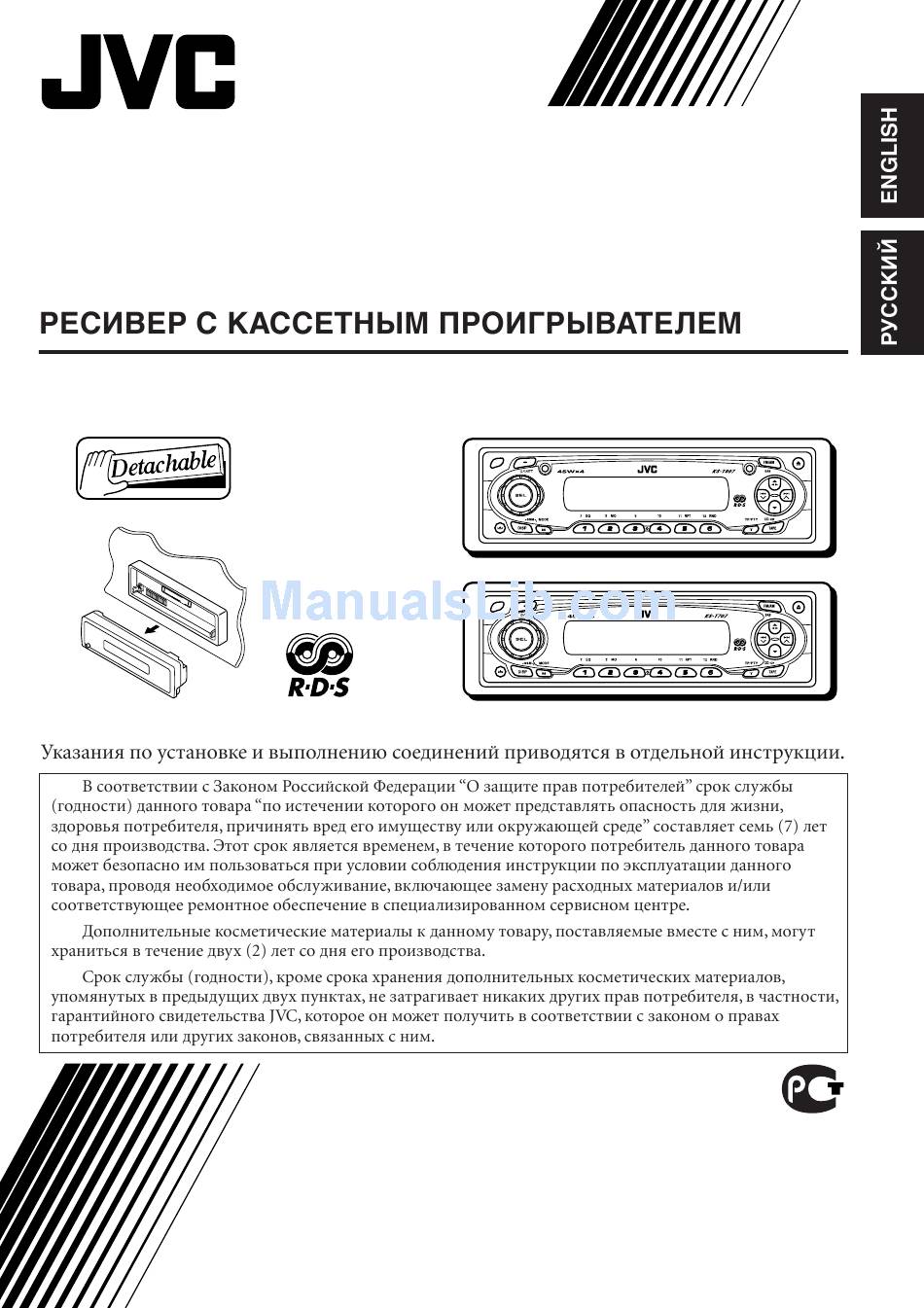

  • Page 1 CASSETTE RECEIVER KS-T807/KS-T707 For installation and connections, refer to the separate manual. INSTRUCTIONS ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ KS-T807 KS-T707 GET0212-001A [EE]...
