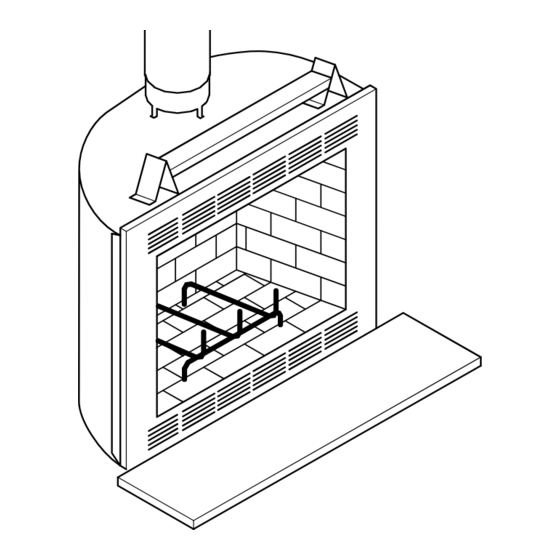

36" CirCulating louvered Firebox
O-TL REPORT # 114-F-20-4
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain re-
placement parts or accessory items when needed. Keep
it with your other important papers.
This fireplace is approved for use as a wood burning
fireplace or for use with a vented gas log approved to
ANS Z21.60, Z21.84 or RGA 2-72 standards or for use
with a vent-free gas log heater approved to ANS Z21.11.2
standard. A vent-free log can only be installed in an af-
termarket (completion of sale, not for purpose of resale
from the manufacturer), permanently located, manu-
factured (mobile) home, where not prohibited by local
codes. Approved hood must be installed when using a
vent-free gas log heater (see Accessories, page 18).
This firebox meets the construction and safety stan-
dards of H.U.D. for application in mobile homes when
installed according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
oWner'S inStallation Manual
SAVE THIS BOOK
For more information, visit www.desatech.com
C36eMW-rC with brushed
brass Finish bi-fold doors
C36eMW-rbC with black
Finish bi-fold doors
C36eMW-rPlC with Platinum
Finish bi-fold doors
Includes Manual
Control Fan System
and Combustion
Air Kit
Advertisement
Table of Contents
Related Manuals for Vexar C36EMW-RC
Summary of Contents for Vexar C36EMW-RC

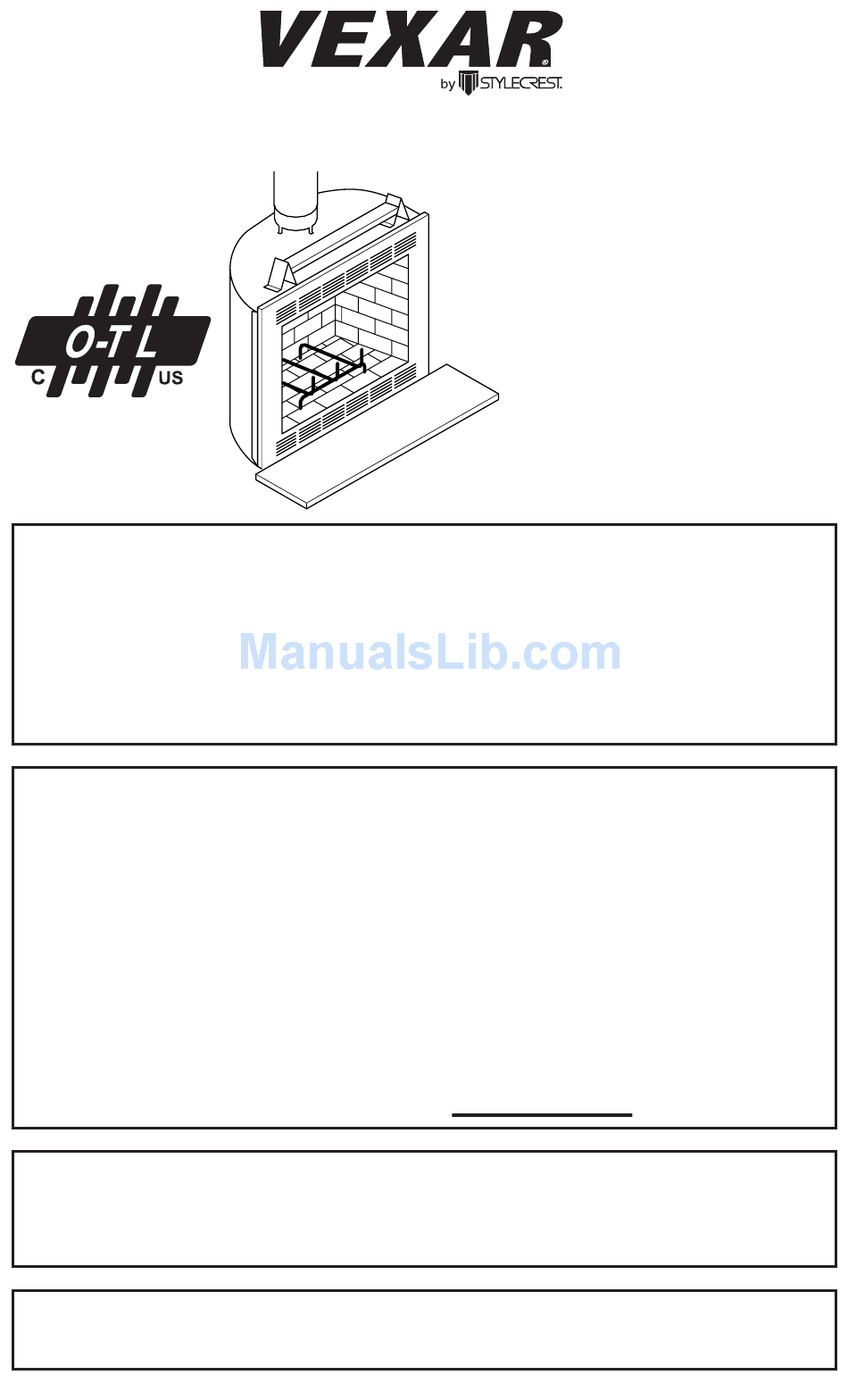

- Page 1 36" CirCulating louvered Firebox oWner’S inStallation Manual C36eMW-rC with brushed brass Finish bi-fold doors C36eMW-rbC with black Finish bi-fold doors C36eMW-rPlC with Platinum Finish bi-fold doors Includes Manual Control Fan System O-TL REPORT # 114-F-20-4 and Combustion Air Kit SAVE THIS BOOK This book is valuable.
-
Page 2: Table Of Contents
table oF ContentS Safety ..............2 Finishing Fireplace ..........15 Specifications ............3 Operation and Maintenance Guidelines .... 15 Fireplace Installation..........3 Replacement Parts ..........17 Venting Installation ..........6 Technical Service..........17 Optional Gas Line Installation......13 Accessories ............18 SaFety CAUTION: The structural WARNING: Improper instal-... -
Page 3: Specifications
SPeCiFiCationS Round Top Termination Storm Collar Flashing Firestop 42" Thimble " " " " 13" Firestop " 5/8" 1" Airspace To Combustible 36" 3" Materials 41" 1" Combustible Wall Board 0" To Top Spacer 1/2" Air Space Back and Sides No Combustible J-Box Material On Face... - Page 4 FirePlaCe inStallation Continued Maximum height of any system is 40 feet.* " This measurement includes fireplace, chim- 10" ney sections and height of termination assem- bly at level of flue gas outlet (see Figure 3). *For manufactured home application, minimum height is 11' for straight flue or flue with one elbow "...
-
Page 5: Hearth Extension
FirePlaCe inStallation Continued FRAMING HEARTH ExTENSION A hearth extension projecting a minimum of 1. Frame opening for fireplace using dimen- 16" in front of and a minimum of 8" beyond sions shown in Figures 1 and 2. each side of the fireplace opening is required 2. -
Page 6: Venting Installation
FirePlaCe inStallation Continued FAN KIT ASSEMBLY (BK2) 5. Secure electrical cover plate with screws previously removed. A fan kit assembly is preinstalled in this 6. Tighten strain relief plastic screw fireplace. Use of blowers or fans other than model BK2 voids warranty. Fan is operated by Note: Electrical housing and cover plate have pressing rocker switch located at lower right sharp edges. - Page 7 venting inStallation Continued Insert Inner Tab of Inlet Tube into Slot Insulation Air Vent Location on Outer Surround Must Allow for Bushes, Snow and Other Possible Obstructions Left Side Mounting Shown Secure to Collar with Outside Metal Tape, Screws or Air Vent Tie Straps Termination...
- Page 8 venting inStallation Continued There are two vent kits available which have ADjUSTABLE FIRESTOP THIMBLE been specially designed for common installa- (FST-A) tions in manufactured (mobile) homes: MW8K Adjustable Firestop Thimble Assembly (FST- (8' vent kit) and MW9K (9' vent kit). Contents A) is used to provide necessary air space and of these kits are listed under Accessories on clearance between chimney pipe and insula-...
- Page 9 venting inStallation Continued If adapter is needed, secure it onto firestop PENETRATING ROOF using holes provided (see Figure 12). The To maintain a 1" clearance to pipe on a roof row of holes on sides of thimble is provided with a pitch, a rectangular opening must be to allow for pitch variances.
- Page 10 venting inStallation Continued USING ELBOW OFFSETS (30E-8DM) 2. Chimney weight above offset rests on return elbow. Straps must be securely 1. To achieve desired offset, you may install nailed to rafters or joists (see Figure 15, combinations of 12", 18", 24", 36" and 48" details A and B).
- Page 11 venting inStallation Continued Return Return Return Offset Elbow Offset Elbow Elbow Elbow Elbow 6' Max. 6' Max. Ceiling Support Pipe Return 12S-8DM Return 6' Max. Elbow Elbow 6' Max. Offset Offset Elbow 6' Max. Elbow 6' Max. Offset Elbow Figure 16 - Typical Offset Terminations (For Systems with 2 Elbow Sets, Maximum Height is 20') FIRESTOP SPACERS (3600FS-8DM) Storm Collar...
-
Page 12: Chase Installations
venting inStallation Continued RTL-8DM Attach Storm Collar Installation (SC1) Bracket Tabs Place storm collar over pipe and slide down Level of to Outer Pipe until it is snug against the open edge of flash- Flue Gas (3 Places) ing (see Figure 19). Use SC1 for all round Outlet Secure with terminations. -
Page 13: Optional Gas Line Installation
venting inStallation Continued 10 FOOT RULE must not penetrate inner flue pipe). The angle of support wires should not be more than 45° All flue gas outlet chimney terminations must from horizontal when fastened to roof. Place extend a minimum of 3 feet in height above the chimney support brackets approximately 18"... - Page 14 venting inStallation Continued 3. Run a 1/2" black iron gas line into fireplace Note: Secure incoming gas line to wood fram- through rear at gas line conduit sleeve ing to provide rigidity for threaded end. (if using a raised platform, add height). If you wish to install an unvented (vent- Provide sufficient gas line into fireplace free) gas log set, ONLY UNVENTED GAS...
-
Page 15: Finishing Fireplace
FiniShing FirePlaCe Combustible materials, such as wallboard, Note: HUD requirements may supersede gypsum board, sheet rock, drywall, plywood, these minimum dimensions. etc. may make direct contact with sides and Combustible top around the fireplace face. It is important that Material "... - Page 16 oPeration and MaintenanCe guidelineS Continued Door Removal 1. Fold doors (fully open) and press up on upper door spring clip until top pin is free of the spring clip (see Figure 28). Tip door toward middle of fireplace opening and lift door out of the lower pivot hole.
-
Page 17: Replacement Parts
rePlaCeMent PartS BI-FOLD GLASS DOORS BRICK LINER VDG36E - Brushed Finish DP36E - Platinum Finish Rear - PN 20029 VDBP36E - Black Finish Left Side - PN 20030 Right Side - PN 20030 Front Bottom - PN 21242 Rear Bottom - PN 21241 DUAL FAN KIT - BK2 OPTIONAL OUTSIDE AIR KIT FOR EMBER PROTECTOR - 20093... -
Page 18: Accessories
aCCeSSorieS DOUBLE WALL PIPE - 12-8DM, FIRESTOP SPACER - V3600FS-8DM 18-8DM, 24-8DM, 36-8DM and 48-8DM CHIMNEY SUPPORT BRACKET KIT CSK-8DM Support Bracket Self Drilling Screws ROOF FLASHING Cable Ferrule V6F-8DM - 0 to 6/12 Pitch V12F-8DM - 6/12 to 12/12 Pitch Eye Bolt Screw Strand Wire (50 ft) 12"/96"... - Page 19 aCCeSSorieS Continued SQUARE CHASE-TOP TERMINATION - ETL-8DM OPTIONAL OUTSIDE AIR KIT FOR SIDE WALL INSTALLATION - AK-6WE HEARTH ExTENSION - 90192 AIR INLET HOOD - AK6-WI AIR INLET HOOD (6 PACK) - MK6-WI THIMBLE ExTENSIONS TxL-8DM - 43" - PN 20745 Tx-8DM - 26"...
- Page 20 This fireplace is manufactured for Stylecrest Inc. under the VEXAR brand name by DESA Heating, LLC 2701 Industrial Drive Bowling Green, KY 42101 www.desatech.com 124558-01 124558 01 Rev. A NOT A UPC 10/08...
