Summary of Contents for AOC 7KLR

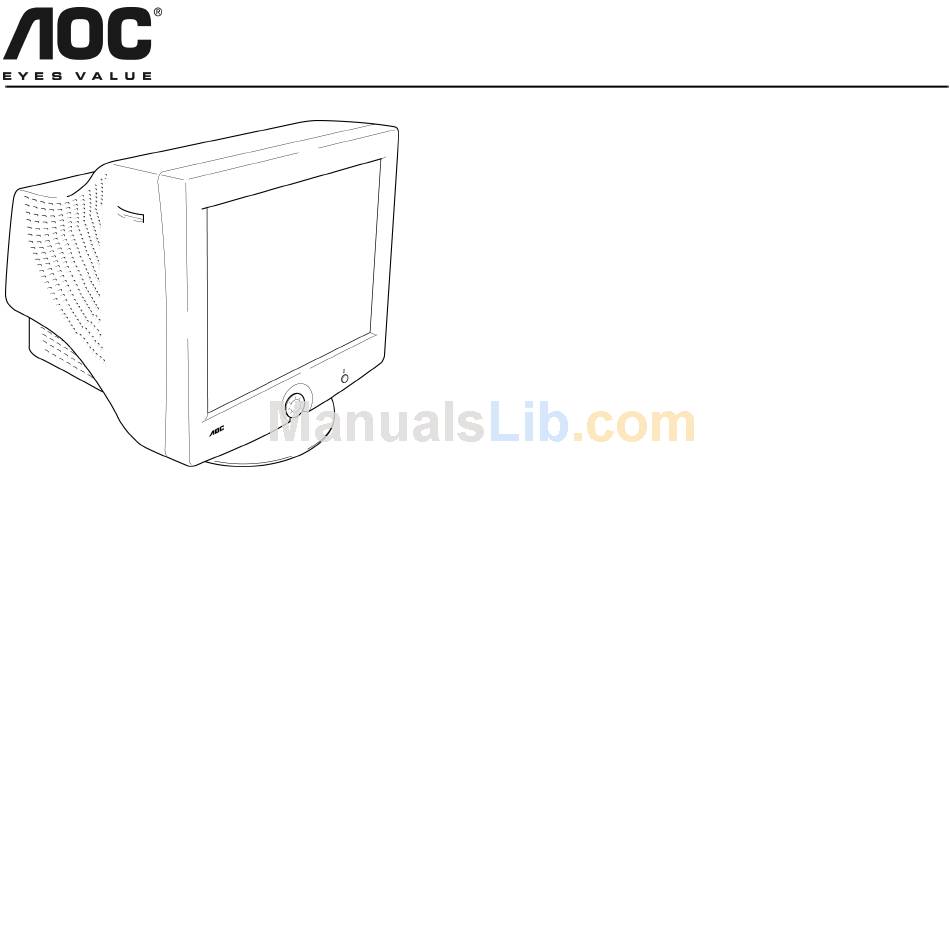

- Page 1 AOC 7KLR AOC 7KLR 17 inch Color Monitor User’s Manual by Envision Peripherals, Inc. www.aocmonitor.com Before operating your monitor, please read this manual thoroughly. AOC 7KLR v2_123102...
-
Page 2: For Your Safety
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. AOC 7KLR For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 3 • Disconnect the power cord to stop the power supply to the monitor. AOC 7KLR For Your Safety • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
-
Page 4: General Notes
250V, CEE-22. The other end must terminate with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 female configuration. AOC 7KLR For Your Safety General Features: • 17" (43.2 cm) Color Monitor • Crisp, Clear Display for Windows •... -
Page 5: Before You Operate The Monitor
Before You Operate the Monitor AOC 7KLR Installing & Removing the Base AOC 7KLR v2_123102... - Page 6 3. Plug the other end of the power cord into a grounded AC outlet or UL-approved power strip. AOC 7KLR Caution: Make sure the power cord is the correct type that is required in your area. This monitor...
-
Page 7: Connecting The Wires Using An Optional Power Cord (Not Supplied)
CEE-22 terminated connectors (see illustration above). AOC 7KLR Follow these steps: 1. Connect the built-in video cable into the 15-pin connector on the back of your computer and tighten the two screws. -
Page 8: Front Panel Buttons
An orange light indicates that the monitor is in Off mode. Note: This monitor automatically turns on when it is plugged into an AC outlet. AOC 7KLR Operating Instructions AOC 7KLR Power: Press this button to put the monitor into Off mode. -
Page 9: Adjusting The Osd Settings
3. Press the Shuttle Knob again to open the function’s window. 4. Rotate the Shuttle Knob to change the settings of the function. AOC 7KLR Operating Instructions 5. To save and exit, select the exit function or leave the monitor alone for 10 seconds. If you want to adjust any other function, repeat steps 2-4. -
Page 10: Plug & Play Ddc1/2B Feature
Operating Instructions Windows INF Driver File Most computers will automatically configure your monitor to work with your computer. For optimal viewing of your monitor, download the AOC monitor driver. Follow these steps: 1. Go to www.aocmonitor.com 2. Click on SUPPORT to open the drivers web page. -
Page 11: Technical Support (Faq)
• Confirm that your video card is Plug & Play compatible. • Inspect the video cable and make sure that none of the pins are bent. • Make sure the AOC monitor drivers are installed (AOC monitor drivers are available at: www.aocmonitor.com) Picture is fuzzy •... -
Page 12: Specifications
Specifications Size Viewable image size Preset Display area Dot Clock Maximum Resolution Plug & Play AOC 7KLR Appendix Input 17.0" (43.2 cm) 11.4” (29 mm) neck 0.21mm(H), 0.25mm(D) dot pitch 90 degree deflection Input Video 16.0” (40.6 cm) Signal diagonal Power Source 11.8”... - Page 13 Environmental Operating Temp: Considerations 32° to 104°F (0° to 40°C) ambient Operating Humidity: 10% to 85% relative, non-condensing Signal Cable Attached Mini D-sub 15 Male Optimal Viewing Mode: 1024 x 768 x 85 Hz AOC 7KLR Appendix AOC 7KLR v2_123102...
-
Page 14: Factory Preset Timing Table
Factory Preset Timing Table Standard VESA / 85 VESA / 75 AOC 7KLR Appendix Resolution Horizontal (in pixels) Frequency 720 × 400 31.5 kHz 640 × 480 31.5 kHz 640 × 480 43.3 kHz 800 × 600 53.7 kHz 1024 × 768 68.7 kHz... -
Page 15: Connector Pin Assignment
Connector Pin Assignment Pin Number AOC 7KLR Appendix Description Pin Number Green Blue Ground Ground R-Ground G-Ground B-Ground AOC 7KLR Description Ground Monitor Ground DDC-Serial Data H-Sync V-Sync / *V-Clk DDC-Serial Clock For DDC v2_123102...
