Your Work Never Looked Better

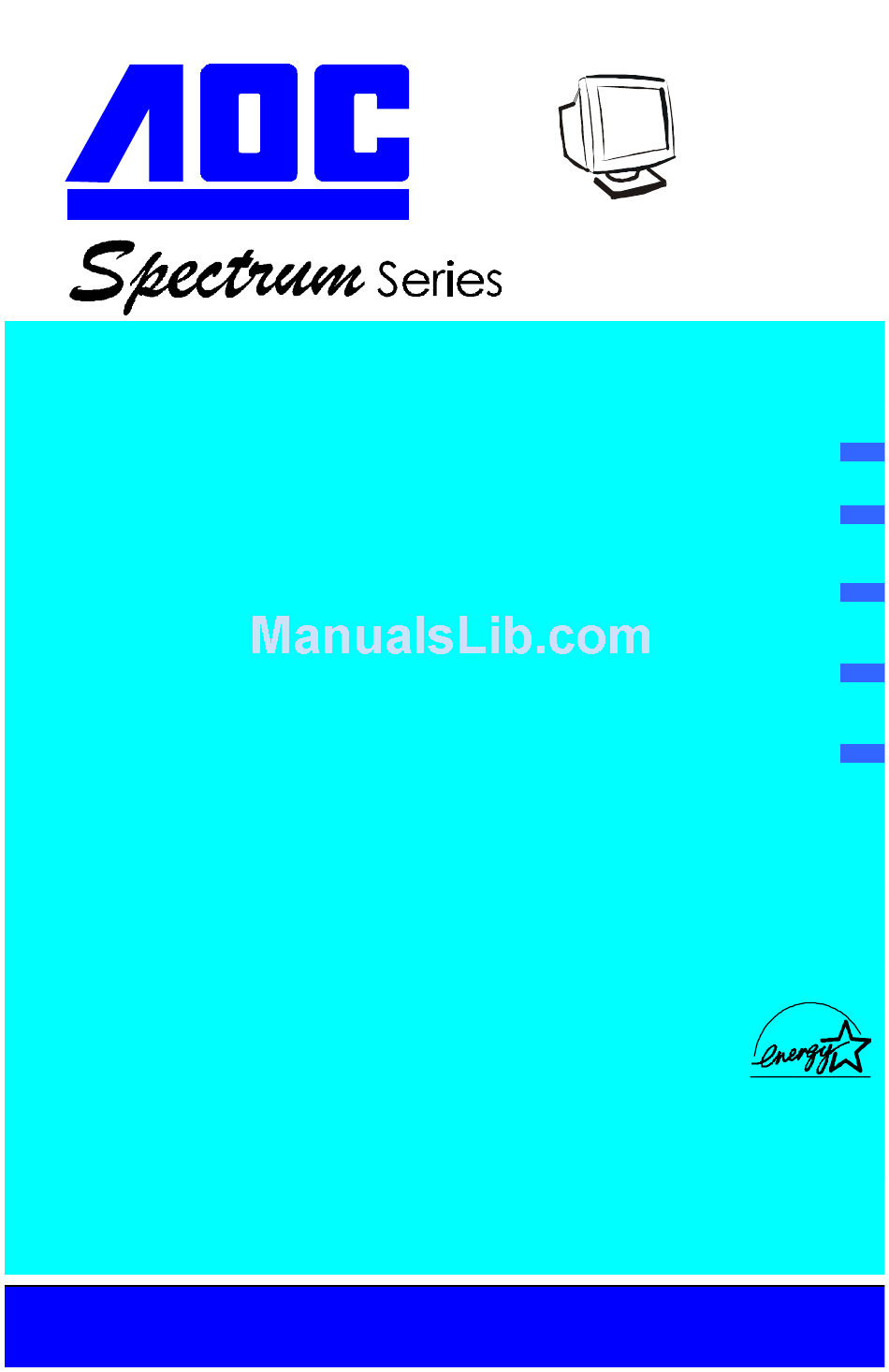

USER MANUAL
TABLE OF CONTENTS
FOR YOUR SAFETY -------------------------------------------------- 1
SAFETY PRECAUTIONS -------------------------------------- 2
BEFORE YOU OPERATE THE MONITOR ---------------------- 3
FEATURES -------------------------------------------------------- 3
PACKING LIST --------------------------------------------------- 3
INSTALLATION INSTRUCTIONS --------------------------- 3
CONTROLS AND CONNECTORS -------------------------- 4
OPERATING INSTRUCTIONS ------------------------------------- 5
GENERAL INSTRUCTIONS ---------------------------------- 5
HOW TO ADJUST A SETTING ------------------------------ 7
ADJUSTING THE PICTURE ---------------------------------- 7
POWER MANAGEMENT FEATURE ----------------------- 9
PLUG AND PLAY ------------------------------------------------ 10
TECHNICAL SUPPORT(FAQ) ------------------------------------- 12
APPENDIX --------------------------------------------------------------- 13
SPECIFICATIONS --------------------------------------------13-14
FACTORY PRESET TIMING TABLE ---------------------- 15
CONNECTOR PIN ASSIGNMENT ------------------------- 15
LIMITED THREE-YEAR WARRANTY -------------------------16-17
Thank you very much for choosing the AOC Color Monitor.
We recommend that you take a few minutes to read carefully through this
brief but comprehensive manual before installing and switching on the
monitor. Please keep this manual in a safe place for you future reference.
Plug & Play Drivers for the AOC Spectrum Series Monitors are available
at AOC's Web Site: www.aoc-europe.com
7Vlr/7Vlr+
7VlrA/7VlrA+
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
Advertisement
Table of Contents
Related Manuals for AOC Spectrum 7Vlr
Summary of Contents for AOC Spectrum 7Vlr
-
Page 1: Table Of Contents
Please keep this manual in a safe place for you future reference. Plug & Play Drivers for the AOC Spectrum Series Monitors are available at AOC’s Web Site: www.aoc-europe.com... -
Page 2: For Your Safety
It is the responsibilities of the user to correct such interference. ® As an NERGY Partner AOC International has determined that this ® product meets the NERGY guidelines for energy efficiency. WARNING : To prevent fire or shock hazard, do not expose the monitor to rain or moisture. - Page 3 PRECAUTIONS l Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. l Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance.
-
Page 4: Before You Operate The Monitor
• To remove the swivel base, hold the bottom of the swivel base, then push it out. Install Remove Install Remove 7Vlr/7Vlr+ 7VlrA/7VlrA+ Figure 1 Installing and Removing the Swivel Base... -
Page 5: Controls And Connectors
(or sound) card's audio output monitor's audio input. Connecting the DC Power Cable ( 7VlrA/7VlrA+ only ): Plug DC power cable between monitor to swivel base for audio power 7Vlr/7Vlr+ 7VlrA/7VlrA+ Figure 2 Connecting Cables Power Cord... -
Page 6: Operating Instructions
To turn the monitor on, press the POWER switch to ON position. The power indicator will light up. • Your monitor features a unique quick switch system which provides a picture within seconds after the monitor is switched on. 7Vlr/7Vlr+ 7VlrA/7VlrA+ Figure 3 External Control Knob EXTERNAL CONTROLS... - Page 7 FRONT PANEL CONTROL • Standby power key : When pressed, the monitor enters the off mode, and the LED turns orange. Press again and hold to restore normal status. • Shuttle Knob : The Shuttle Knob is used to control the monitor functions. Rotate to switch functions or adjust settings.
-
Page 8: How To Adjust A Setting
HOW TO ADJUST A SETTING 1. Press the Shuttle Knob or OSD Key to make the OSD window appear. See figure 4. 2. Rotate the Shuttle Knob to select the desired function. See figure 4. 3. Press the Shuttle Knob again to select the function that you want to adjust. - Page 9 V- SIZE Adjust the picture’s vertical size. Adjust the picture’s horizontal and vertical ZOOM size simultaneously. PINCUSHION Adjust the pincushion and barrel TRAPEZOID Adjust the picture’s trapezoid distortion. PIN-BALANCE Adjust to compensate the pincushion unbalance. PARALLELOGRAM Adjust the picture to be a rectangle. ROTATION Adjust the picture tilt to horizontal position.
-
Page 10: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with every power ® saving requirements of NERGY and VESA DPMS when activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS computer. -
Page 11: Plug And Play
FEATURES Green monitor • The monitor has a power saving function that conforms to the VESA DPMS standard. This feature will only work if your PC is a green PC. This feature is similar to a screen saver, except that your monitor will turn it off instead of activating the screen saver. - Page 12 THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL. This monitor meets the Power Management standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees ( NUTEK ).
-
Page 13: Technical Support(Faq)
*Check if the Video Card is Plug & Play compatible *Check if the D-15 plug pin of Video Cable is bent *Make sure the AOC Monitor Drivers are installed (AOC Monitor Drivers are available at: www.aoc-europe.com) No picture *Computer Power Switch should be in the... -
Page 14: Appendix
Universal AC 100 - 240V, 50Hz / 60Hz Operating 0ºC to 40ºC ambient Humidity 10%to 85%relative, non-condensing Dimensions 7Vlr/7Vlr+: Monitor & Base 410(W) × 411(H) × 430(D)mm 7VlrA/7VlrA+: Monitor & Base 410(W) × 448(H) × 430(D)mm Weight 7Vlr/7Vlr+: Unit (net) 16.0kgs ( Net ) - Page 15 ( Maximum ) 120 Watts Pre-set Display Area 300mm x 230mm Audio Output Rated Power 0.5W rms (for 7VlrA/7VlrA+ only) (Per channel) Regulatory UL, CSA, FDA, FCC, TÜV/GS, CE, Compliance MPR II TCO’95(for 7Vlr+/7VlrA+ only) 4 3 0 (in mm) 7VlrA/7VlrA+...
-
Page 16: Factory Preset Timing Table
FACTORY PRESET TIMING TABLE HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY FREQUENCY 720 × 400 31.47kHz 70Hz 640 × 480 31.47kHz 60Hz VESA/75 640 × 480 37.5kHz 75Hz VESA/85 640 × 480 43.3kHz 85Hz VESA/75 800 × 600 46.875kHz 75Hz VESA/85 800 × 600 53.67kHz 85Hz VESA/75... -
Page 17: Limited Three-Year Warranty
If the product appears to be defective, please contact your local dealer or refer to the warranty card when attached to the product. Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Authorized Service Center. If you cannot deliver the product in person: •... - Page 18 OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) GMBH BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR...
