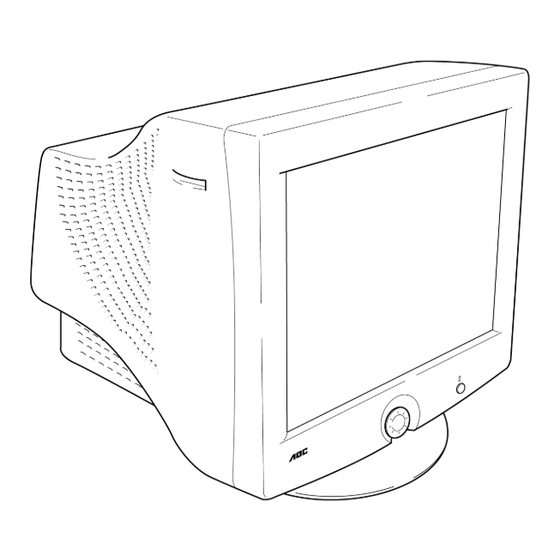

- Page 1 AOC 7KLR AOC 7KLR 17 inch Color Monitor User’s Manual by Envision Peripherals, Inc. www.aocmonitor.com Before operating your monitor, please read this manual thoroughly. AOC 7KLR v2_123102...
-
Page 2: For Your Safety
For Your Safety AOC 7KLR FCC Statement Notice This equipment has been tested and found to 1. The changes or modifications not expressly comply with the limits for a Class B digital device, approved by the party responsible for pursuant to Part 15 of the FCC Rules. These limits... - Page 3 For Your Safety AOC 7KLR Precautions • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) • Do not use the monitor near water, e.g. near a pin. As a safety feature, this plug will only fit into bathtub, washbowl, kitchen sink, laundry tub, a grounded power outlet.
-
Page 4: General Notes
For Your Safety AOC 7KLR General Notes General Features: • Do not install the monitor near heat sources • 17" (43.2 cm) Color Monitor such as radiators or air ducts. • Crisp, Clear Display for Windows • Do not place monitor in direct sunlight or in •... -
Page 5: Before You Operate The Monitor
Before You Operate the Monitor AOC 7KLR Installing & Removing the Base AOC 7KLR v2_123102... - Page 6 Before You Operate the Monitor AOC 7KLR Connecting the Wires Using the Power Cord Supplied 1. Connect the built-in video cable into the 15-pin Caution: Make sure the power cord is the correct connector on the back of your computer and type that is required in your area.
-
Page 7: Connecting The Wires Using An Optional Power Cord (Not Supplied)
Before You Operate the Monitor AOC 7KLR Connecting the Wires Using An Optional Power Cord (Not Supplied) The power cord supplied with your monitor can Follow these steps: only be connected to a grounded electrical wall 1. Connect the built-in video cable into the 15-pin socket or power strip. -
Page 8: Front Panel Buttons
Operating Instructions AOC 7KLR Front Panel Buttons Shuttle Knob: Press this knob to open the Power: Press this button to put the monitor OSD window or select a highlighted function. into Off mode. The power indicator will turn Rotate this knob to switch functions or adjust orange. -
Page 9: Adjusting The Osd Settings
Operating Instructions AOC 7KLR Adjusting the OSD Settings 1. Press the Shuttle Knob to open the OSD 5. To save and exit, select the exit function or window. leave the monitor alone for 10 seconds. If you want to adjust any other function, repeat steps 2. -
Page 10: Plug & Play Ddc1/2B Feature
Operating Instructions AOC 7KLR Plug & Play DDC1/2B Feature Windows INF Driver File This monitor is equipped with VESA DDC1/2B Most computers will automatically configure your capabilities according to the VESA DDC monitor to work with your computer. For optimal STANDARD. -
Page 11: Technical Support (Faq)
Technical Support (FAQ) AOC 7KLR Problem Possible Solution Power LED is not ON • Make sure the power cord is properly connected to a grounded power outlet and to the monitor. No Plug & Play • Confirm that your computer is Plug & Play compatible. -
Page 12: Specifications
Appendix AOC 7KLR Specifications Input Video Red, Green, Blue Size 17.0" (43.2 cm) Analog Interface 11.4” (29 mm) neck Separate H/V TTL Sync. 0.21mm(H), 0.25mm(D) dot H/V Sync. Positive/Negative pitch H-Frequency 30 kHz - 95 kHz 90 degree V-Frequency 50 Hz -160 Hz... - Page 13 Appendix AOC 7KLR Specifications (continued) Environmental Operating Temp: Considerations 32° to 104°F (0° to 40°C) ambient Operating Humidity: 10% to 85% relative, non-condensing Signal Cable Attached Mini D-sub 15 Male Optimal Viewing Mode: 1024 x 768 x 85 Hz AOC 7KLR...
-
Page 14: Factory Preset Timing Table
Appendix AOC 7KLR Factory Preset Timing Table Resolution Horizontal Vertical Standard (in pixels) Frequency Frequency 720 × 400 31.5 kHz 70 Hz 640 × 480 31.5 kHz 60 Hz VESA / 85 640 × 480 43.3 kHz 85 Hz 800 × 600 53.7 kHz... -
Page 15: Connector Pin Assignment
Appendix AOC 7KLR Connector Pin Assignment Pin Number Description Pin Number Description Green Ground Blue Monitor Ground Ground DDC-Serial Data Ground H-Sync R-Ground V-Sync / *V-Clk G-Ground DDC-Serial Clock B-Ground For DDC AOC 7KLR v2_123102... -
Page 16: Limited 3-Year Warranty
Limited 3-Year Warranty AOC 7KLR This is a warranty statement for AOC color • Excessive or inadequate heating or air monitors including those sold within North America conditioning or electrical power failures, surges, as specified. or other irregularities. This three-year limited warranty does not cover any of the product's Envision Peripherals, Inc. - Page 17 Warranty (continued) AOC 7KLR Although this limited warranty gives you specific EPI is not responsible for damage to inbound legal rights, you may have other rights which may products that were not properly packaged. vary from state to state. EPI will pay the return shipment charges within one...
