1 - HYDRAULIC LAYOUT
HYDRAULIC LAYOUT -
NECTA SPA TECHNICAL MANUAL "COLIBRÌ"
Service Manual: Colibrì
"ESPRESSO"

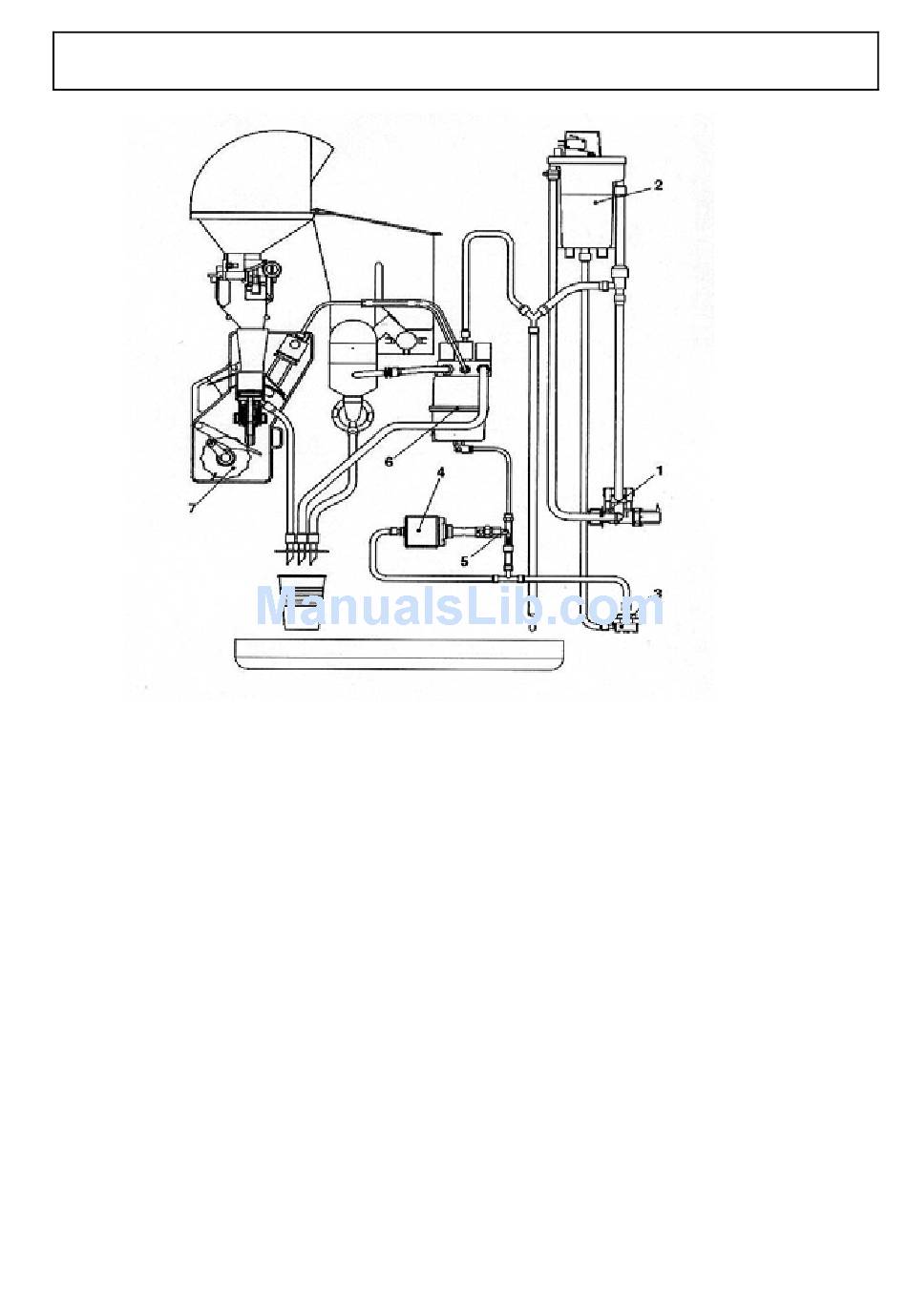

List of hydraulic components
1) Water inlet solenoid valve
2) Air-break
3) Volumetric counter
4) Pump
5) Pump by-pass (complete with check valve)
6) Pressure boiler (complete with solenoid valve)
7) Brewing unit
VERSION
Edition 02-2002
