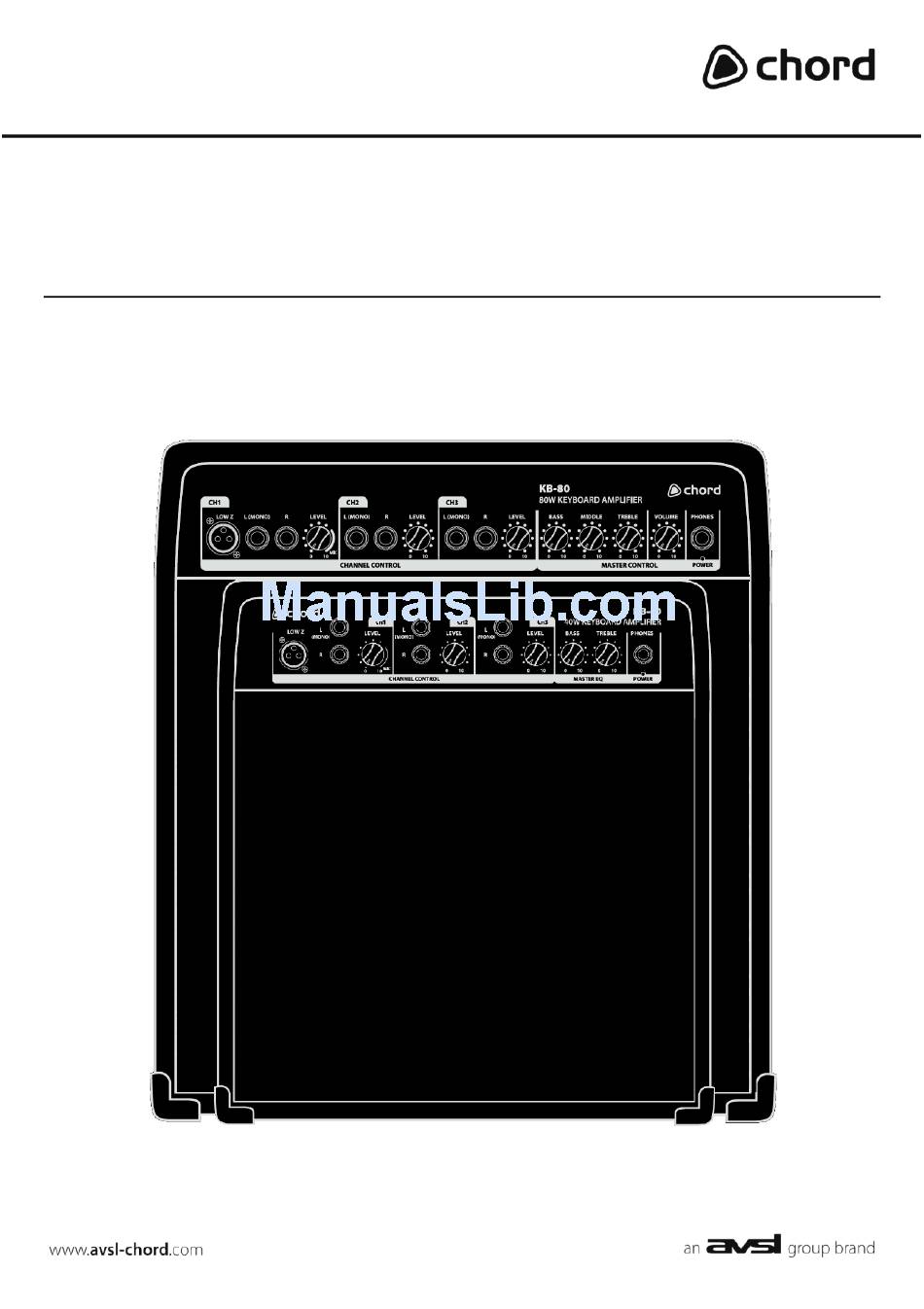

- Page 1 KB-Series Item ref: 173.450UK, 173.451UK User Manual Keyboard Amplifiers...
-
Page 2: Specifications
Introduction Thank you for choosing this KB-series keyboard amplifier. These amplifiers are designed for use with up to 3 keyboards and deliver a high quality full range output to the listener. Channel 1 can act as a microphone input, turning this unit into a versatile compact P.A. - Page 3 Front Panel CH1 LOW Z Input – XLR input suitable for low impedance microphone CH1 line inputs – L (mono) & R 6.3mm jack inputs for keyboards or other line source CH1 LEVEL – Rotary control for channel 1 output level CH2 line inputs –...
-
Page 4: Troubleshooting
Operation Connect the IEC inlet on the KB-80 to the mains using the appropriate IEC lead, ensuring correct voltage and current rating If a microphone is to be used, connect this to channel 1 via the XLR connector or the L/MONO jack input.
