Chord KB-80 User Manual

Table of Contents

Download this manual

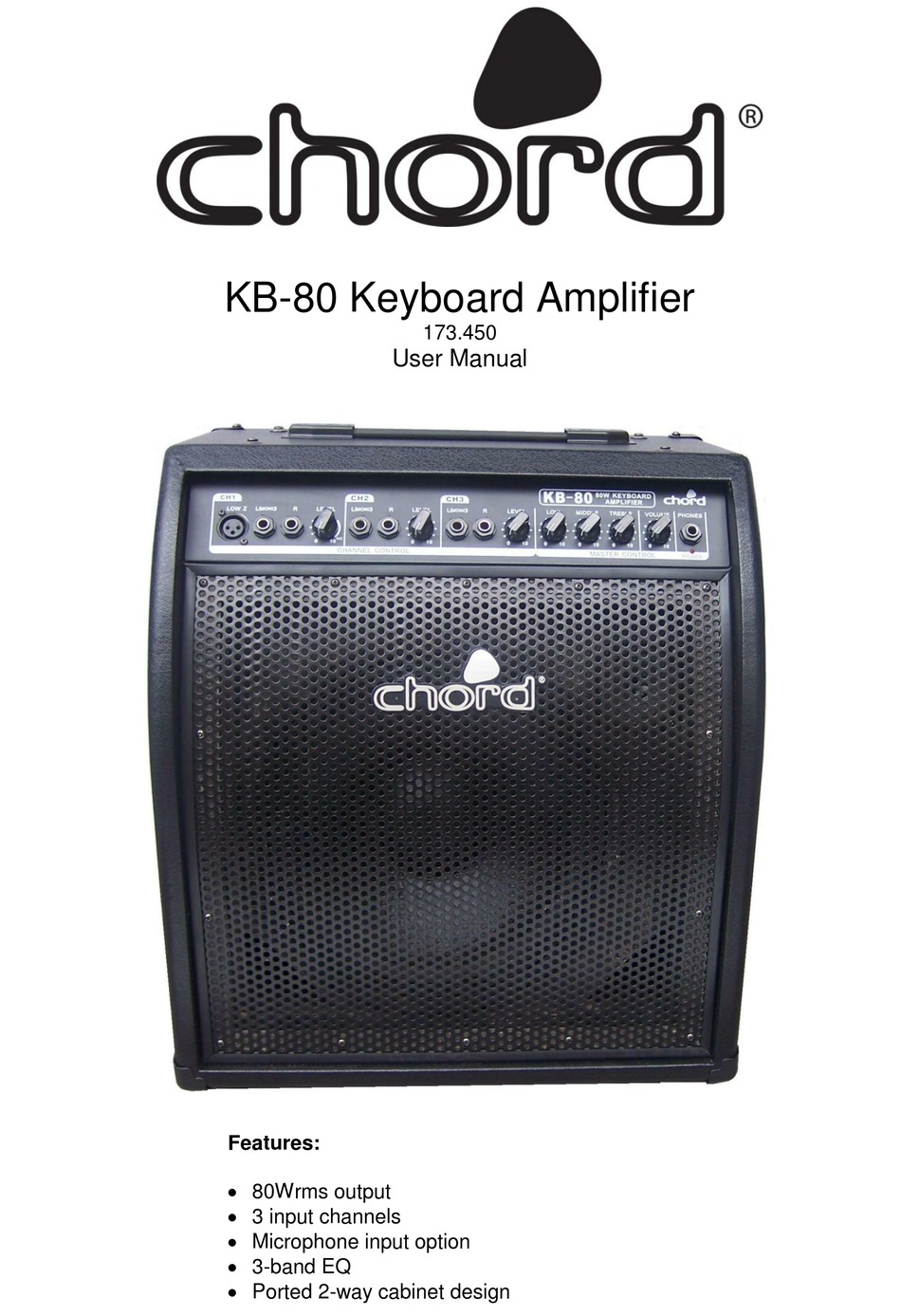

KB-80 Keyboard Amplifier

173.450

User Manual

Features:

 80Wrms output

 3 input channels

 Microphone input option

 3-band EQ

 Ported 2-way cabinet design

Table of Contents

Do you have a question about the KB-80 and is the answer not in the manual?

Page 1 KB-80 Keyboard Amplifier 173.450 User Manual Features:  80Wrms output  3 input channels  Microphone input option  3-band EQ  Ported 2-way cabinet design...
Page 2: Front Panel
Thank you for choosing the KB-80 keyboard amplifier. The KB-80 is designed for use with up to 3 keyboards and deliver a high quality full range output to the listener. Channel 1 can act as a microphone input, turning this unit into a versatile compact P.A.
Page 3: Rear Panel
Operation  Connect the IEC inlet on the KB-80 to the mains using the appropriate IEC lead, ensuring correct voltage and current rating  If a microphone is to be used, connect this to channel 1 via the XLR connector or the L/MONO jack input.
Page 4 Check output volume on keyboard(s) and increase if necessary Ensure low impedance inputs (e.g. microphone) are not fed to jack line inputs Output very quiet Increase master VOLUME and/or channel LEVEL controls Check that all EQ controls are not turned down © Chord 2011...
