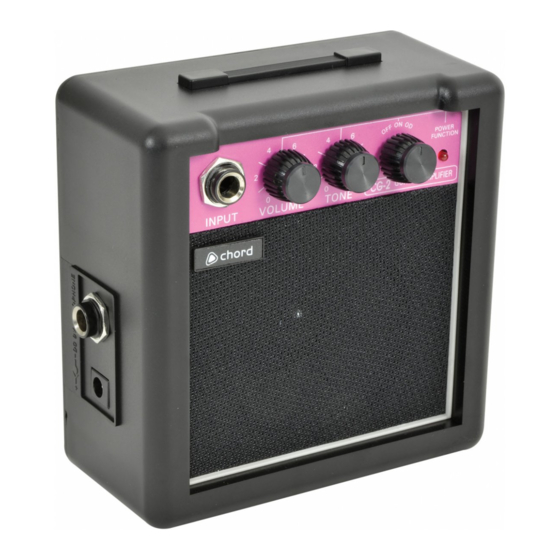

CG-2 Portable Guitar Amplifier
169.275UK
OPERATING INSTRUCTION
Thank you for purchasing the CG-2 portable guitar amplifier
Please read and keep these instructions for reference.
SPECIFICATION
Rated power output
2W 5%THD
Speaker
3" 8
Ω
Controls
Volume, Tone, Off/On/OD
Input
6.3mm mono jack
Output
6.3mm jack headphone out
FEATURES
1) Input
6.3mm jack
2) Volume
Adjusts output level
3) Tone
Varies treble to bass content
4) Function Switch
Switches unit on/off and overdrive mode
5) Power LED
Lights to indicate power on
6) Headphones
6.3mm jack output for headphones
7) DC 9V in
D.C. jack input for optional power adapter
Advertisement
Related Manuals for Chord CG-2
Summary of Contents for Chord CG-2
- Page 1 CG-2 Portable Guitar Amplifier 169.275UK OPERATING INSTRUCTION Thank you for purchasing the CG-2 portable guitar amplifier Please read and keep these instructions for reference. SPECIFICATION FEATURES 1) Input 6.3mm jack Rated power output 2W 5%THD Speaker 3” 8 Ω 2) Volume...
- Page 2 Power supply 9V battery (or optional 9Vdc power adapter) Net weight 330g Dimensions 130 x 133 x 65mm...
