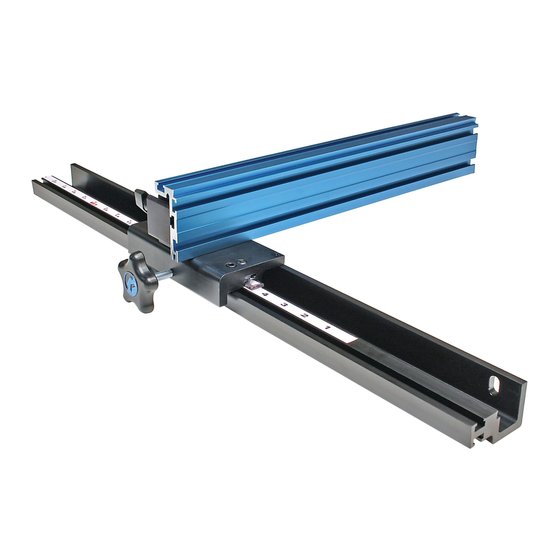

- Page 1 Precision Band Saw Fence ITEM# KMS7200 INSTRUCTION MANUAL 6/2010 FT4177 Rev B...
-
Page 2: Table Of Contents
Table of Contents Congratulations on choosing a Kreg Precision Band Saw Fence! Be sure to read the instructions and the safety warnings completely before using this tool. Table of Contents TABLE OF CONTENTS SAFETY GUIDELINES PARTS DIAGRAM INSTALLING THE MOUNTING RAIL... - Page 3 - Kreg components are fully guaranteed for one year from date of purchase. - Kreg will replace or repair, at no charge to the customer, any product that fails within the warranty period. - Kreg will service Kreg components beyond the warranty period at a reasonable cost to customer.
-
Page 4: Safety Guidelines
Safety Guidelines Safety Guidelines To avoid injury, never adjust the fence along the mounting rail or position of the HD Trak while the band saw is running. Make sure the blade comes to a complete stop before removing the workpiece. Ground all tools. -
Page 5: Parts Diagram
Parts Diagram FT4136 FT4175 FT4137 DK1313 FT4047 DK1504 FT4138 FT4144 FT4064 FT4025 FT4140 FT4159 FT4185 (Delta) FT4146 (Jet, Craftsman, Ridgid, Import) DK1504 FT4143 FT4063 FT4176 Part Number Quantity Description DK1313 Black T-Knob DK1504 1/4” Brass Washers FT4025 1/4-20 x 3/4” Nylon Set Screw FT4047 Right to Left Reading Self-Adhesive Tape FT4063... -
Page 6: Installing The Mounting Rail
Start bolt in right-side hole, then swing into position and secure left bolt. The Kreg Precision Band Saw Fence has been designed to be used in conjunction with the miter gauge slot. To take advantage of this feature measure the depth of the miter... -
Page 7: Drilling The Mounting Rail
Bracket Assembling the Clamping Block 1/4”x3/4” Allen Head The Clamp Block is the heart of the Kreg Precision Band Saw Fence. The Clamp Block locks fi rmly to the Mounting Rail with 10-32x3/8” Clamp Block a twist of the Lock Down Knob to provide a rock-solid platform Set Screw to support the HD Trak forming the Band Saw Fence. -
Page 8: Attaching The Band Saw Trak
Assembly Instructions Figure 3 Figure 3 Adapter 1/4” Brass Washer Bracket Black T-Knob 1/4”x2-1/2” Hex Bolts Band Saw Trak Clamp Block Lock Down Knob Attaching the Band Saw Trak Refer to Fig. 3 The Trak attaches to the Clamp Block via the Adapter Bracket. These parts are designed in such a way that the fence may be used on either side of the blade. -
Page 9: Attaching The Measuring Tape
Assembly Instructions Attaching the Tape The Measuring Tape on the Kreg Precision Band Saw Fence will transform your band saw into a woodworking machine capable of exact cuts and repeatable accuracy. 1. Position the fence against the blade making sure the fence is touching but not defl... -
Page 10: Adjusting For Blade Drift
Assembly Instructions Adjusting for Blade Drift The Kreg Precision Band Saw Fence will allow the user to align the fence to match a saw blade’s “drift angle”. You can set the fence to compensate for the drift angle by adjusting the Fence “out of square”... -
Page 11: Warranty
Kreg Tool Company’s factory not authorized by original purchaser. the Kreg Precision Band Saw Fence to be free of defects in Kreg Tool Company; and (4) for non-original purchasers. This materials and workmanship for a period of one (1) years from warranty does not apply to normal wear and tear, corrosion, This is Kreg Tool Company’s sole warranty. - Page 12 Kreg Tool Company, 201 Campus Drive, Huxley, IA 50124 800.447.8638 • www.kregtool.com...
