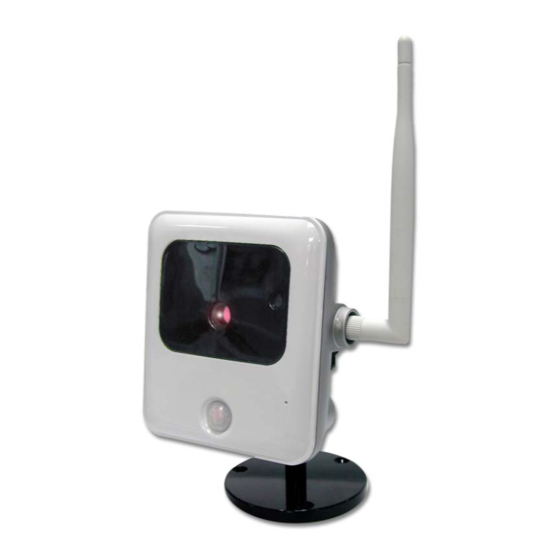

- Page 1 ADT Pulse Interactive Solutions ® OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide...
-
Page 2: Table Of Contents
WA ADTLLL881DO, 11824 N Creek Pkwy #105, Bothell, WA 98011; WI 1210943; WV 049758. MS 15019511 ©2013 ADT LLC dba ADT Security Services. All rights reserved. ADT, the ADT logo, 800 ADT.ASAP and the product/service names listed in this document are marks and/or registered marks. -
Page 3: Introduction
802.11n Wireless LAN. OC810-ADT Camera Features • Standalone Design: The wireless camera is a standalone device which requires a power source and a wireless connection to the ADT Pulse ® gateway. • Triple Video Support: The wireless camera can support H.264, MEPG4 and MJEPG video for different image compression. -
Page 4: Package Contents
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide Package Contents 1. OC810-ADT Wireless Outdoor Day/Night Camera 2. Antenna 3. Power Adapter 4. Ethernet Cable 5. Power Extension Cable(with water sealing cap) 6. Stand 7. Mounting Screws 8. Quick Installation Guide ADT Pulse Interactive Solutions ®... -
Page 5: Physical Details - Oc810-Adt Camera
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide Physical Details – OC810-ADT Camera Front Panel Figure 1: Front Panel 1. Lens No physical adjustment is required or possible for the lens, but you should ensure that the lens cover remains clean. Image quality is degraded if the lens cover is dirty or smudged. -
Page 6: Rear Panel
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide Rear Panel Figure 2: Rear Panel 1. Antenna The antenna is adjustable with best results typically obtained with the antenna positioned vertically. 2. Power Port The supplied 12V power adapter plugs power to the wireless camera’s power port. -
Page 7: Installation
Wireless Outdoor Day/Night Camera. Adding the OC810-ADT Wireless Outdoor Day/Night Camera to the ADT Security System The OC810-ADT wireless camera can only be added to a Pulse system that supports video. NOTE: 1. Open your web browser. In the address bar, type: https://Portal.ADTPulse.com. -
Page 8: Stand
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide 4. In the Manage Devices Assistant, click Cameras. 5. Click the picture of the OC810 or select it from the drop-down list, and then click the Continue button. 6. Assign the wireless camera a unique name (this is usually based on the location of the wireless camera) in the space provided, and then type the wireless camera’s MAC ID or Server Name. - Page 9 OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide 7. Click the Continue button. 8. Attach the antenna to the wireless camera. To adjust the antenna, screw to the rear mounting point and set the antenna to the upright position to improve wireless reception.
- Page 10 14. Assemble the mounting bracket, and then install the wireless camera in the final location. 15. Re-apply power. If the camera does not connect, use of the ADT Wi-Fi extender, part # WN2RPADT-1ADNAS is recommended and may improve connectivity. For more information, refer to Physical Details – on pages 3 and 4.
-
Page 11: Pir Video Motion Detection
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide PIR Video Motion Detection The motion event will be captured when a significant image changes within the Window of Interest. The Window of Interest is defined below. The following installation hints should be noted: 1. - Page 12 OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide 7. While choosing the installation area, be aware that the PIR sensor may detect unimportant motions, such as moving trees or shadows caused by excessive wind. Video motion detection is susceptible to light reflection, shade or tree/leaves movement, etc.
-
Page 13: Enabling Motion Detection Via The Adt Security System
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide Enabling Motion Detection via the ADT Security System 1. Click the Automations tab, and then click the Add Automation button. 2. Select a trigger for this automation from the Trigger drop-down list. 3. Select Motion from the Event drop-down list. - Page 14 OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide 8. Click OK. 9. Click Save. ADT Pulse Interactive Solutions ®...
-
Page 15: Appendix A: Specifications
OC810-ADT Wireless Outdoor Day/Night Camera Installation Guide Appendix A: Specifications Model OC810-ADT Wireless Outdoor Day/Night Camera Dimensions 4.06” x 3.70” x 1.46” H x W x D (103mm x 94mm x 37mm) Operating Temperature 14°F to 113°F (-10°C to 45°C) Storage Temperature -4°F to 158°F (-20°C to 70°C) -
Page 16: Appendix B: Regulatory Approvals
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Approvals The OC810-ADT Wireless Outdoor Day/Night Camera meets the guidelines of the European Union and comply with the 99/5/EEC and RTTE 99/5EG directives, including the following standards: •...
