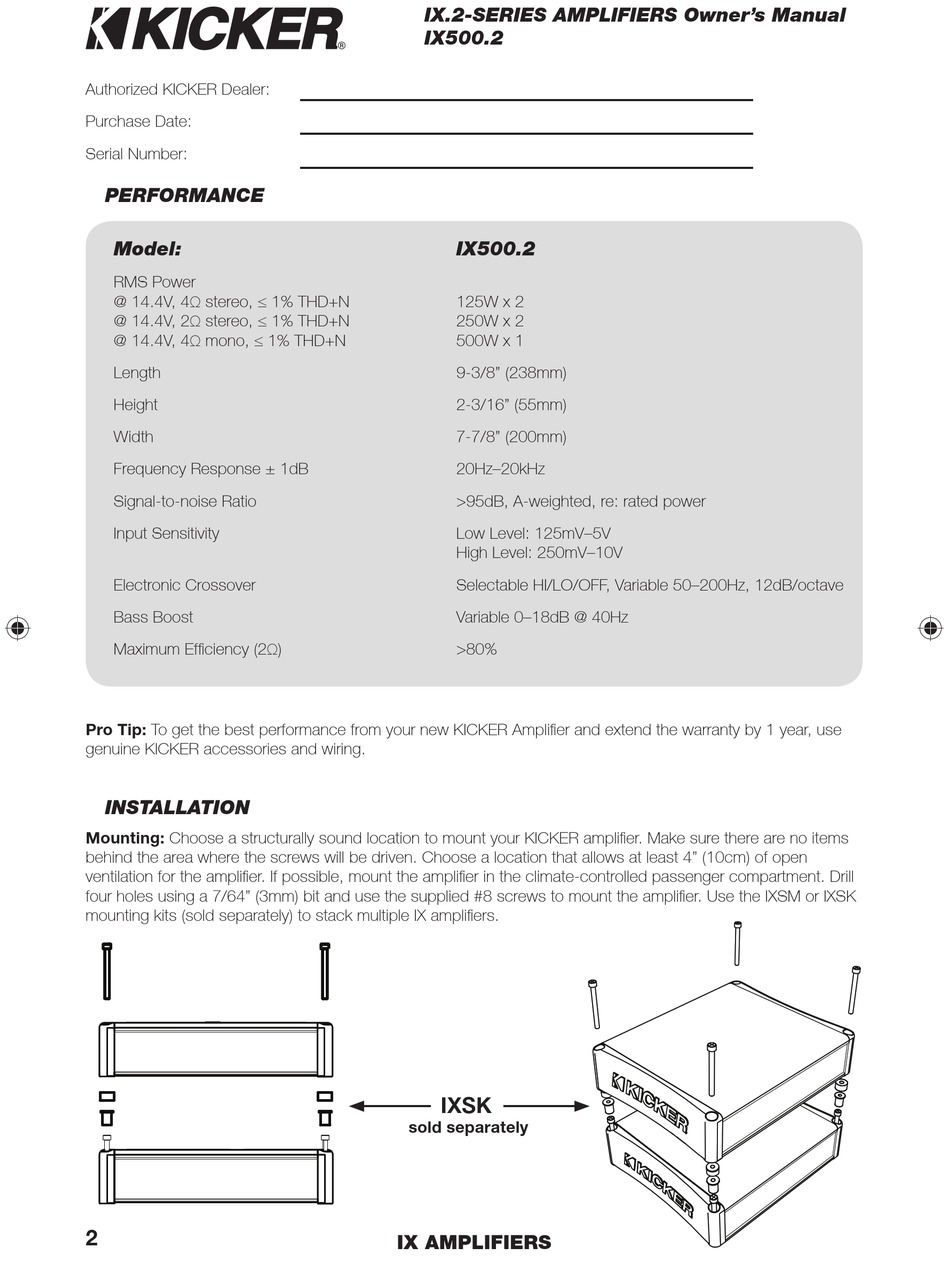

Installation - Kicker IX.2-SERIES Owner's Manual

Authorized KICKER Dealer:
Purchase Date:
Serial Number:
PERFORMANCE
Model:
RMS Power
@ 14.4V, 4Ω stereo,  1% THD+N
@ 14.4V, 2Ω stereo,  1% THD+N
@ 14.4V, 4Ω mono,  1% THD+N
Length
Height
Width
Frequency Response ± 1dB
Signal-to-noise Ratio
Input Sensitivity
Electronic Crossover
Bass Boost
Maximum Effi ciency (2Ω)
Pro Tip: To get the best performance from your new KICKER Amplifi er and extend the warranty by 1 year, use
genuine KICKER accessories and wiring.

INSTALLATION

Mounting: Choose a structurally sound location to mount your KICKER amplifi er. Make sure there are no items
behind the area where the screws will be driven. Choose a location that allows at least 4" (10cm) of open
ventilation for the amplifi er. If possible, mount the amplifi er in the climate-controlled passenger compartment. Drill
four holes using a 7/64" (3mm) bit and use the supplied #8 screws to mount the amplifi er. Use the IXSM or IXSK
mounting kits (sold separately) to stack multiple IX amplifi ers.
2
IX.2-SERIES AMPLIFIERS Owner's Manual
IX500.2
IX500.2
125W x 2
250W x 2
500W x 1
9-3/8" (238mm)
2-3/16" (55mm)
7-7/8" (200mm)
20Hz–20kHz
>95dB, A-weighted, re: rated power
Low Level: 125mV–5V
High Level: 250mV–10V
Selectable HI/LO/OFF, Variable 50–200Hz, 12dB/octave
Variable 0–18dB @ 40Hz
>80%
IXSK
sold separately
IX AMPLIFIERS
