Summary of Contents for JBL EON10 G2
- Page 1 CEV.FR EON10 G2 User Guide Part Number: 981-00061-01...
-

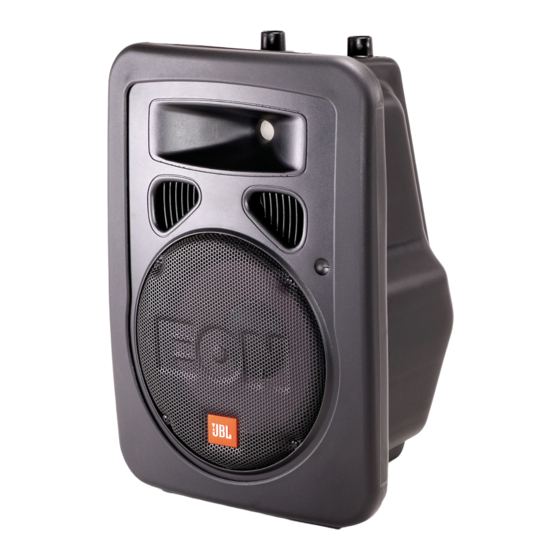

Page 2: About The Eon10 G2
• 1” (throat diameter) JBL compression driver with titanium diaphragm and ferro-fluid cooling. • Bi-amplified 125 watts low frequency and 50 watts high frequency - actual power delivered to the drivers. -
Page 3: Available Accessories
Frequency Reponse Available Accessories SS2-BK Tripod Stand ESK10 Suspension Kit for EON 10” models BRK10 Bracket, adapts EON 10” models to OmniMount ® brackets EON10 Bag-1 Zippered, plushed-lined speaker bag for EON 10” models Block Diagram... -
Page 4: Quick Start
Controls INPUT 1 Adjusts the level of INPUT 1. Use this control to match the input sensitivity of the EON10 G2 to the output level of the mixer, microphone, or instrument connected to INPUT 1. It is a common miscon- ception that this control changes the power of a system. - Page 5 The MIC/LINE switch effects only INPUT 1. It selects between two sensitivity ranges. This switch is used to match the input sensitivity of the EON10 G2 with the output level of the device connected to INPUT 1. Depressing the MIC/LINE switch selects MIC (most sensitive) and causes the MIC/LINE LED to illuminate.
- Page 6 Your EON10 G2 will typically be set at the factory to accommodate the power mains voltage in your area. Before you set up your EON10 G2 for the first time it is a good idea to verify that the setting of the selector is appropriate for the power in your area.
-
Page 7: Application Examples
“insert cable”. Portable CD Player - A portable CD player may be connected to the EON10 G2 by means of a 1/4” TRS to Mini-Phone adapter. Again, the left and right channels will be combined into mono. -
Page 8: Basic Sound Reinforcement System With Stage Monitors
This is the basic live sound system. The optional tripod stands will get the speakers up above the audience so the sound can project. The second pair of EON10 G2 speakers are used as stage monitors. For maximum gain before feedback, position the monitors so that they do not point into microphones. -
Page 9: Troubleshooting
DJ System with Passive Subwoofers This system combines a pair of EON10 G2 powered speakers with externally powered subwoofers for extra power at very low frequencies. * Recommended crossover frequency = 80-150 Hz. (season to taste) INPUT 1 INPUT 1... - Page 10 Replace suspected cable with a known-good cable. No sound with microphone Microphone requires phantom The EON10 G2 does not supply connected directly to the MIC / power. phantom power. Switch to a LINE 1 input. SIGNAL LED dynamic microphone, use a does not illuminate.
- Page 11 Symptom Likely Cause What to do Hum or Buzz that increases or Improper A/C ground or faulty Disconnect or mute channels one decreases when the mixer level equipment connected to mixer at a time to isolate the problem. controls are moved. input.
-
Page 12: Gain Structure
The input level control simply determines how much input voltage is required to drive the amp to full output. If the input level controls of an EON10 G2 are set too low (rotated too far counter-clockwise) the mixer will go into clipping before the speakers are driven to full output. -
Page 13: Connections - Balanced And Unbalanced
Connections - Balanced and Unbalanced There are two basic types of audio system interconnections for very low to medium level audio signals: Balanced and unbalanced. Your EON10 G2 can accept either type of input. Balanced Lines In audio, a balanced line is a three-conductor system in which the two signal wires carry an equal, but opposite voltage with respect to the ground wire. -
Page 14: Cables And Connectors
1/4” headphone jacks. • Adapts the output of portable audio players and computers to INPUT 2 & 3 on the EON10 G2. *TRS = Tip Ring Sleeve indicating that the connector can conduct two audio channels (via the Tip and the Ring) and a ground (via the Sleeve). - Page 15 XLR/F to XLR/M Microphone Cable 1 (shield) TRS (Balanced) 1/4Ó Phone to XLR/M Cable 1 (shield) Ring Sleeve TS (Unbalanced) 1/4Ó Phone to XLR/M Cable 1 (shield) Sleeve XLR/M to RCA (phono) Cable Center Shield TS (Unbalanced) 1/4Ó Phone to RCA (phono) Cable Sleeve Sleeve (shield) TRS 1/4Ó...
- Page 16 EONSUB-G2 User Guide Part Number: 981-00059-01...
-
Page 17: Technical Specifications
About the EON SUB G2 Applications To supplement or extend the low frequency output of powered and non-powered full-range speaker systems. Features • 15” Differential Drive ™ low-frequency driver with dual neodymium magnet for high power handling, efficiency, and light weight. •... - Page 18 Controls and Connections The audio section of the EON Sub G2 includes powerful features that enhance the flexibility of your subwoofer. Connectors LINE LEVEL INPUT This balanced input accepts a standard XLR (female) connector. The LINE LEVEL INPUT is where the line level output of the audio mixer will be connected.
- Page 19 Block Diagram POLARITY NORMAL PEAK LOOP SIGNAL THRU OUTPUT LINE 250W LEVEL INPUT VOLUME SPEAKER LEVEL INPUT About Subwoofers Here are a few bass basics. The ear is far less sensitive to very low frequencies than it is to mid- range frequencies.
- Page 20 Application Examples Stereo System With EON Mid / High System with EON Sub G2s This is a system in which a pair of EON Subs are used with a pair of EON 2-way powered speakers. LOOP LOOP 2 & 3 2 &...
-
Page 21: Mono Subwoofer
Mono Subwoofer Here’s a slightly more advanced set-up in which the subwoofers are not driven from the same mixer output as the 2-way main speakers. Using the subwoofers in mono will not degrade the stereo image because the ear does not do a good job of determining the source location of low fre- quency sound. - Page 22 Powered Sub with Passive Mid / High The SPEAKER LEVEL INPUT on your EON Sub G2 provides a simple and convenient way to add subwoofers to a system with passive 2-way speakers. THRU THRU Passive 2-way Speaker Passive 2-way Speaker EONSUB-G2 EONSUB-G2 From Powered Mixer...
- Page 23 Voltage Selection And Fuses Changing Voltage Your EON Sub G2 will typically be set at the factory to accommodate the power mains voltage in your area. Before you set up your EON Sub G2 for the first time it is a good idea to verify that the setting of the selector is appropriate for the power in your area.
- Page 24 Signal sounds distorted even Mixer or other source is overdriven Review the Owner’s Manual at moderate volumes, PEAK for your mixer and adjust light is not lit. controls as needed • Input sensitivity (gain) • Channel faders • Master faders Hum or Buzz that increases Improper A/C ground or faulty Disconnect or mute...
